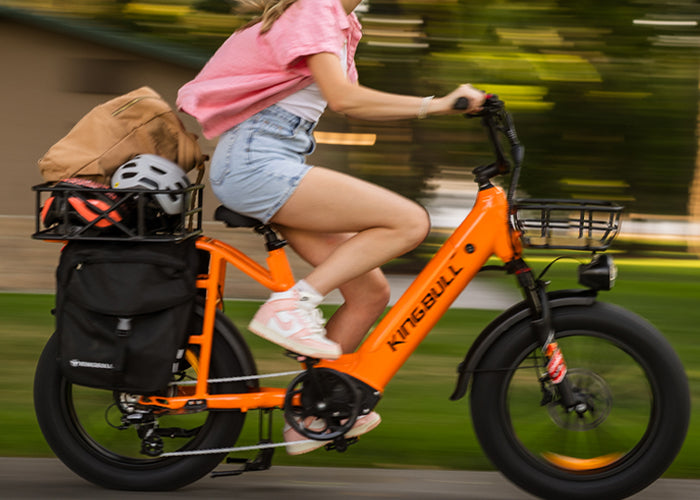

Young woman riding orange Kingbull Voyager 2.0 electric bike with cargo racks and storage bags against blurred green trees background
Kingbull Voyager 2.0 Orange electric bike side view with front and rear cargo racks and storage bags
Smiling woman posing with orange Kingbull Voyager 2.0 electric bike in park setting
Gray Cargo electric bike-Kingbull Voyager 2.0
Dual battery orange cargo electric bike
Grey dual battery kingbull cargo electric bike
Gray Cargo electric bike side view-Kingbull Voyager 2.0
Orange Cargo electric bike side view-Kingbull Voyager 2.0
Cargo electric bike-Kingbull Voyager 2.0
Cargo electric bike-Kingbull Voyager 2.0
Orange Cargo electric bike-Kingbull Voyager 2.0
Young woman riding orange Kingbull Voyager 2.0 electric bike with cargo racks and storage bags against blurred green trees background
Kingbull Voyager 2.0 Orange electric bike side view with front and rear cargo racks and storage bags
Smiling woman posing with orange Kingbull Voyager 2.0 electric bike in park setting
Gray Cargo electric bike-Kingbull Voyager 2.0
Dual battery orange cargo electric bike
Grey dual battery kingbull cargo electric bike
Gray Cargo electric bike side view-Kingbull Voyager 2.0
Orange Cargo electric bike side view-Kingbull Voyager 2.0
Cargo electric bike-Kingbull Voyager 2.0
Cargo electric bike-Kingbull Voyager 2.0
2-Year Warranty
Free Shipping
15-Day Return
No Tax
20,000+ Riders
Pass Test
Home / Ebikes / Kingbull Voyager 2.0 | Fat Tire Electric Cargo Bike

Kingbull Voyager 2.0 | Fat Tire Electric Cargo Bike

Dual Batteries & Long Range
$1,299.00 $1,399.00
/
Shipping calculated at checkout.
  • CA Shipping: Within 2 Business Days
Color
Style
A gift pack including Lock, Bungee Cord, Rear Footreat pegs, mirror and Pump, Kingbull free accessories
  • Dual Battery Voyager2.0: shipped around August 30.
  • Extra $200 off Buy any 2 Bikes
Quantity
Size & Fit
Size & Fit
A —— Total Length 69in / 175 cm
B —— Total Height 46.9in / 119 cm
C —— Minimum Seat Height 32.7in / 83 cm
D —— Maximum Seat Height 39.3in / 100 cm
E —— Handlebar width 28.3in / 72 cm
F —— Rear Rack Height 29.5in / 75 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
60 Miles
Max Speed
28MPH
Weight
76 lbs
Rider Height
5'2" - 6'6"/ 157 cm - 196 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
180 lbs
Classes
Class 3(default), Class 2
Frameset
Frame
All aluminum, removable integrated battery, tapered head tube, guided internal routing, 33.9mm seat tube, 12 mm bolt-on Axle
Fork
KINGBULL OS-V20, coil spring, lockable, preload adjustable, 60mm travel
Wheels
Rim
GBF-20, 20" magnesium alloy one wheel, M10*135*185MM
Tires
CST C-1752, 20"*4.0", puncture-proof
Inner Tubes
CST 20"*4.0", Schrader
Brakes
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1050mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1850mm oil pipe
Drivetrain
Shifter
SHIMANO SL-M315-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-M310, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7RB, 122L, 7 speed
Crankset
HDL-L145, 1/2"*3/32"*48T*152MM
Chainrings
48T
E-system
Motor
(GD)BAFANG 750W brushless hub motor
Battery
SAMSUNG 48V/720Wh(15Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
130X-3, thumb throttle, left, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle
JT5734, Eco leather, aluminum alloy rails
Seatpost
SP-801, aluminum alloy, 33.9*300mm, with scale lines
Handlebar
HB820, aluminum alloy, 22.2*31.8*2.2T*720MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
FB-3310, PU+TPE, length 130mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
$1,299.00
$1,399.00

Core At A Glance

motor icon
Motor

BAFANG 750W Brushless Hub Motor

Battery charging icon
Battery

15Ah (720Wh) Samsung Battery

Top Speed
Top Speed

28MPH

Max Range icon
Max Range

Up to 60 Miles

Sensor icon
Sensor

Torque Sensor丨Brake Sensor

Brakes icon
Brakes

Hydraulic Brakes

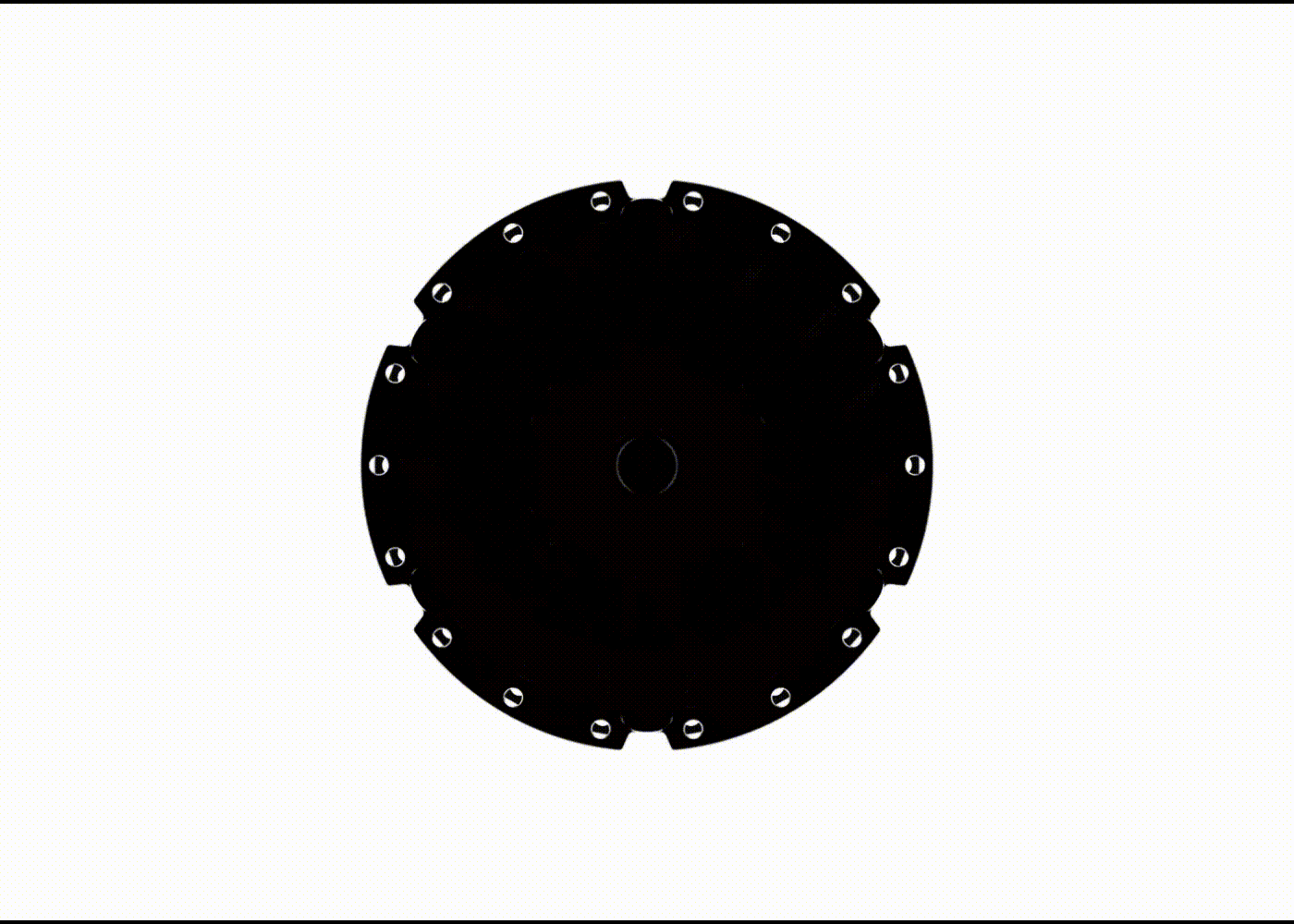

Power That Works as Hard as You Do

The upgraded Bafang 750W motor delivers up to 80Nm of torque, giving you the strength to tackle steep hills and heavy loads with ease. Efficient, reliable, and built to last—it’s the muscle behind every smooth, confident ride.

The Smooth Power of a Torque Sensor

A torque sensor delivers power that feels intuitive and responsive, seamlessly matching your pedaling effort in real time. The harder you pedal, the more support you get—creating a ride that feels natural, controlled, and energizing. It also promotes efficient power usage, helping to extend battery life so you can ride longer with confidence.

Seamlessly integrated Samsung battery with matching frame color – Kingbull Voyager 2.0 Seamlessly integrated Samsung battery with matching frame color – Kingbull Voyager 2.0
Power You Can Count On

The Voyager 2.0 is equipped with a seamlessly integrated 15Ah Samsung battery and a strong 750W motor that makes hauling feel effortless. Enjoy up to 60 miles of range on a single charge and reach speeds up to 28 mph —perfect for everything from daily errands to big cargo runs.

Orange freight electric bicycle equipped with front and rear baskets and saddle bags Orange freight electric bicycle equipped with front and rear baskets and saddle bags
Make It Yours

Load it up with the accessories you need and set up your bike your way—whether it’s school runs with the kids or weekend adventures, the Voyager2.0 is ready to roll with you.

Streamlined frame design with no visible welds – kingbull Voyager 2.0 Streamlined frame design with no visible welds – kingbull Voyager 2.0
Upgraded Frame, Stronger Than Ever

The Voyager2.0 packs a frame that’s 230% stronger than standard e-bikes, carrying up to 450 lbs with stability and comfort. With 180 lbs rear rack capacity and 80 mm suspension, it’s made to handle everything—from gear to groceries to the kids.

Features & Highlights

zoom hydraulic brake – Kingbull Voyager2.0 e-bike
ZOOM Hydraulic Brakes
Powerful stopping force at your fingertips. Tackle muddy trails, steep descents, and sharp turns with confidence. One pull, total control—ride hard, brake harder.
Shimano 7-speed gear system – Kingbull Voyager2.0
Shimano 7 Speed
Free and seamless switching between 7 speedmodes.
suspension fork – Kingbull Voyager2.0 e-bike
Front Fork Suspension
Designed for cargo e-bikes, the fork offers 60mm travel and a hydraulic spring system to ensure a smooth, comfortable ride—even when fully loaded.
Voyager 2.0 backlit display showing speed and pedal assist levels
Backlit LCD Display
Backlit color display, clearly visible in sunlight, provides riding information and makes it easy for riders to adjust their riding mode.
Kingbull Voyager 2.0 integrated solid wheel – stylish and durable design
20X4" CST All-Terrain Tires
Provides a smooth and easy ride even in the most challenging terrain and weather conditions.
Kingbull Voyager 2.0 breathable comfort saddle close-up
Breathable Sport Saddle
Adjustable design with upgraded breathable holesenhances comfort, making your daily city ridessmoother and more enjoyable.
Kingbull Voyager2.0 ebike Heavy-Duty Upgraded Rear Rack
Heavy-Duty Upgraded Rear Rack
Built for cargo e-bikes, this upgraded rack is made from high-strength alloy and supports up to 150 lbs—ideal for carrying groceries, gear, or daily cargo.
Kingbull Voyager ebike Integrated 48V LED Lights
Integrated 48V LED Lights
Kingbull 48V headlights are more powerful, improve visibility and ensure the safety of night riding.
Size & Fit
A —— Total Length 69in / 175 cm
B —— Total Height 46.9in / 119 cm
C —— Minimum Seat Height 32.7in / 83 cm
D —— Maximum Seat Height 39.3in / 100 cm
E —— Handlebar width 28.3in / 72 cm
F —— Rear Rack Height 29.5in / 75 cm
Technical Specifications
Max Range
60 Miles
Max Speed
28MPH
Weight
76 lbs
Rider Height
5'2" - 6'6"/ 157 cm - 196 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
180 lbs
Classes
Class 3(default), Class 2
Frame
All aluminum, removable integrated battery, tapered head tube, guided internal routing, 33.9mm seat tube, 12 mm bolt-on Axle
Fork
KINGBULL OS-V20, coil spring, lockable, preload adjustable, 60mm travel
Rim
GBF-20, 20" magnesium alloy one wheel, M10*135*185MM
Tires
CST C-1752, 20"*4.0", puncture-proof
Inner Tubes
CST 20"*4.0", Schrader
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1050mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1850mm oil pipe
Shifter
SHIMANO SL-M315-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-M310, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7RB, 122L, 7 speed
Crankset
HDL-L145, 1/2"*3/32"*48T*152MM
Chainrings
48T
Motor
(GD)BAFANG 750W brushless hub motor
Battery
SAMSUNG 48V/720Wh(15Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
130X-3, thumb throttle, left, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Saddle
JT5734, Eco leather, aluminum alloy rails
Seatpost
SP-801, aluminum alloy, 33.9*300mm, with scale lines
Handlebar
HB820, aluminum alloy, 22.2*31.8*2.2T*720MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
FB-3310, PU+TPE, length 130mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Can I cancel for free after placing an order?
You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
How to Unlock Your Ebike’s Top Speed?
You can change your e-bike's maximum speed in the screen menu P08.

Rider Reviews

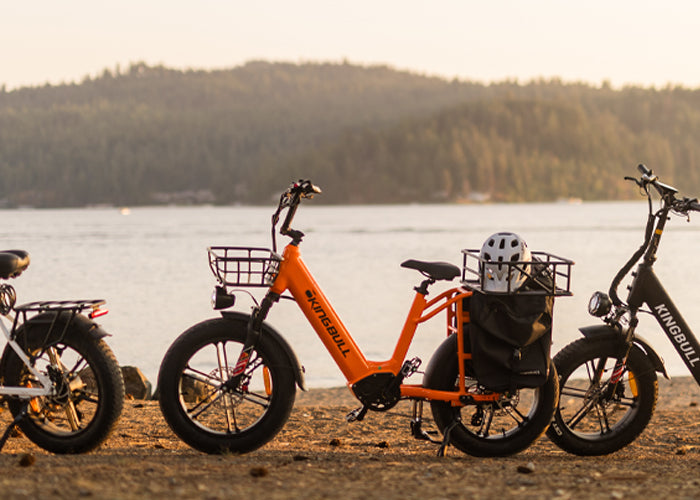

An orange freight electric bike parked by the lake
