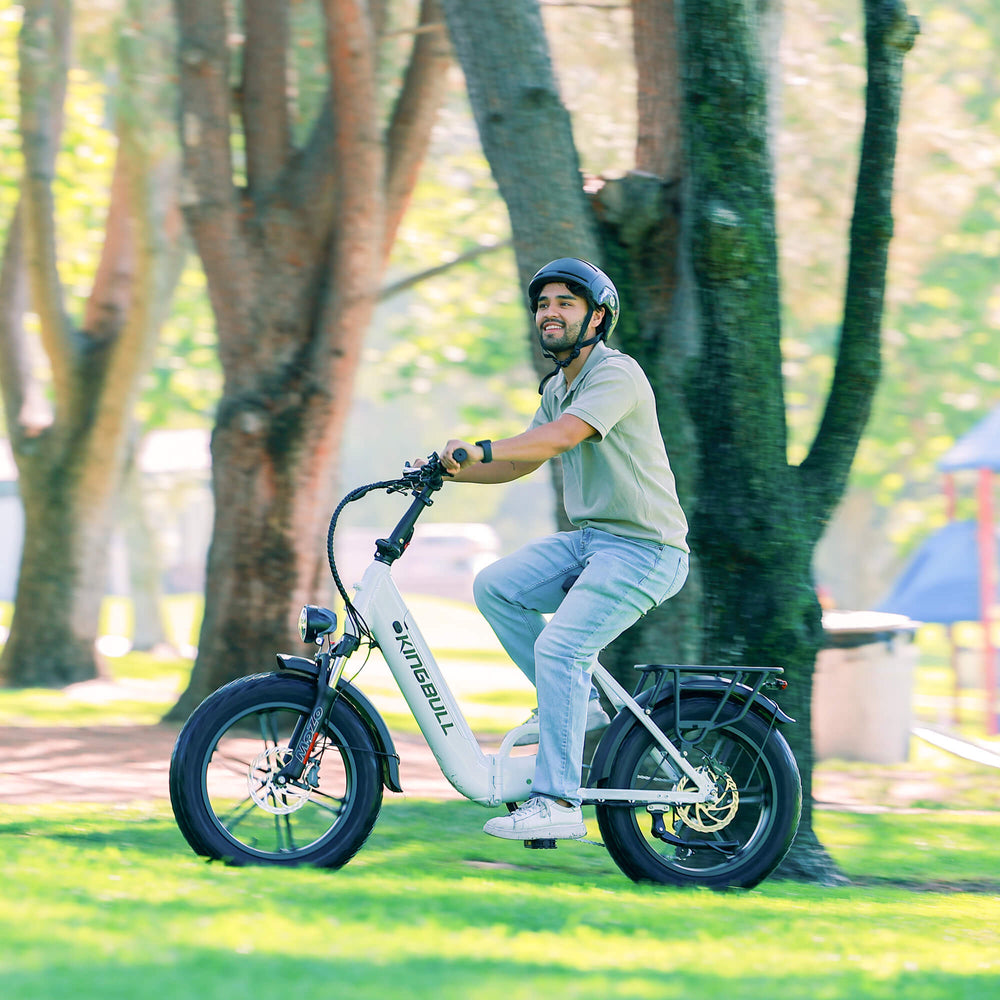

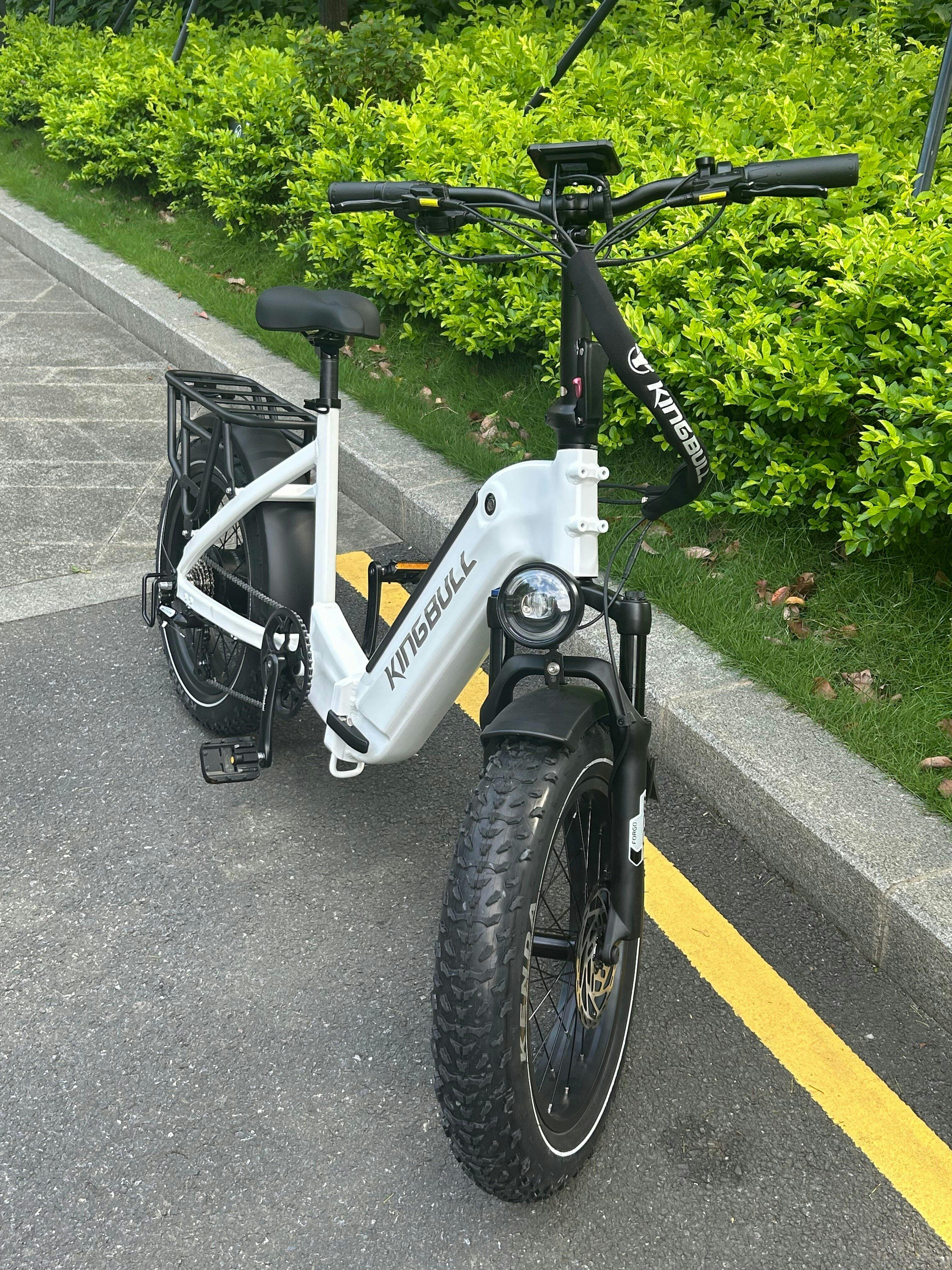

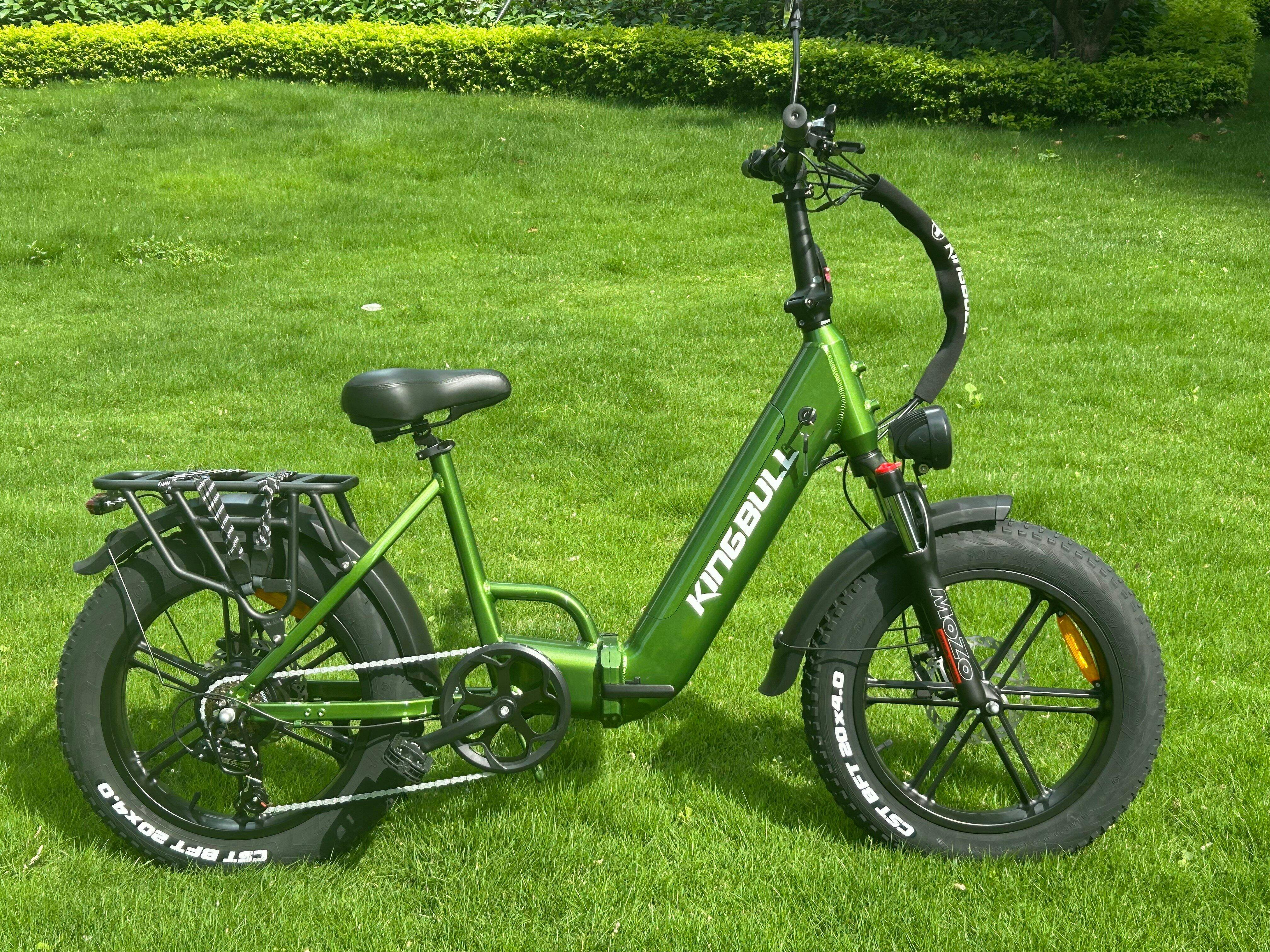

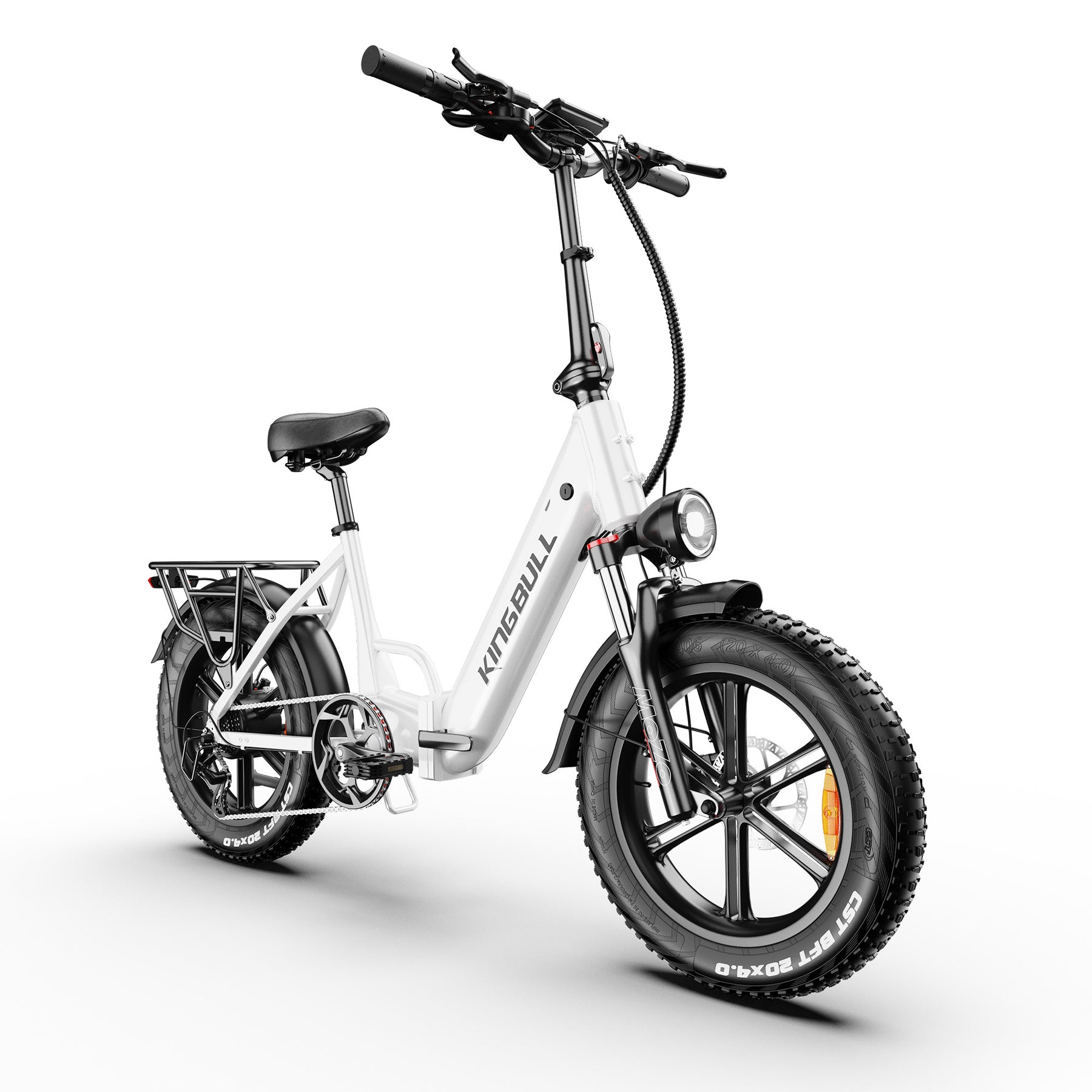

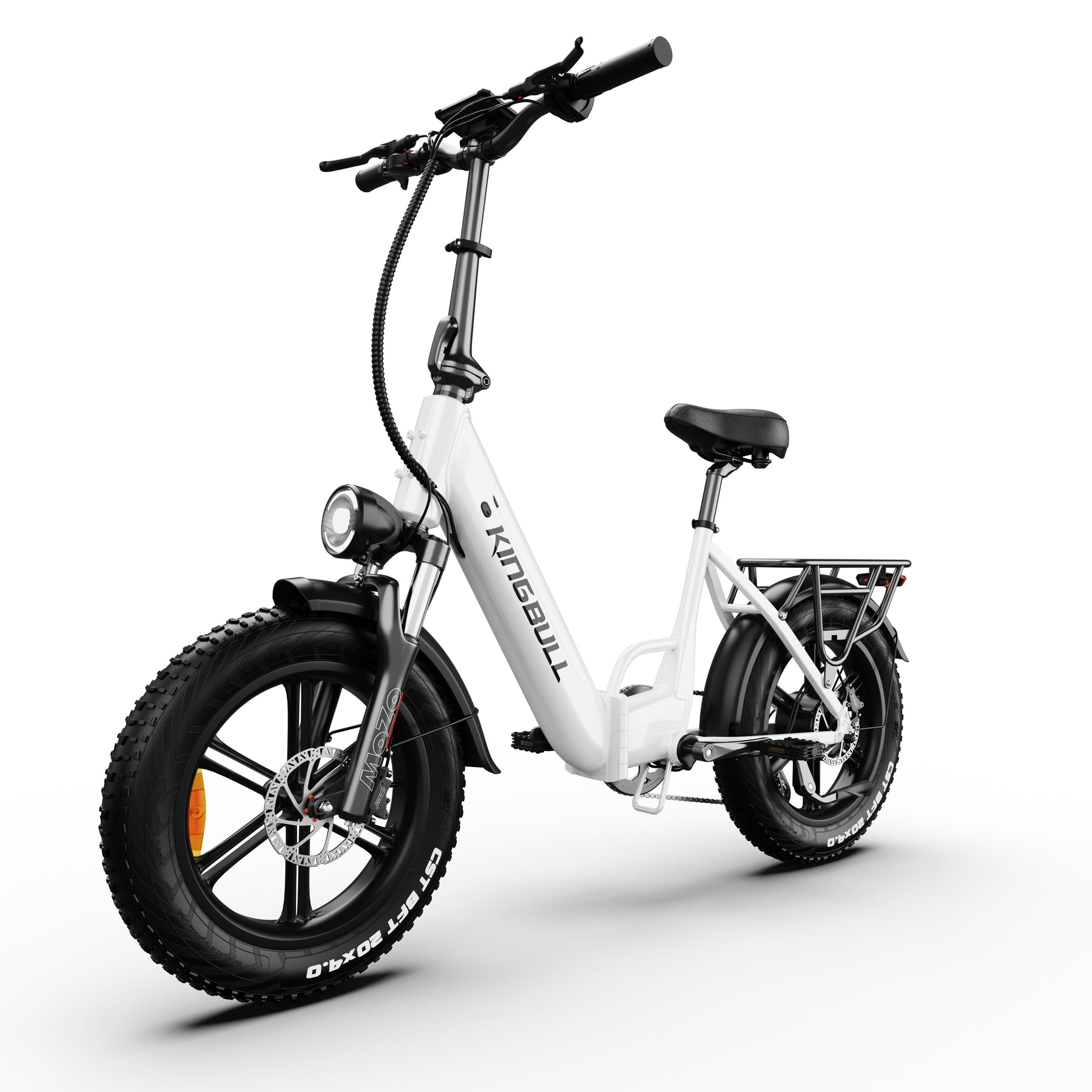

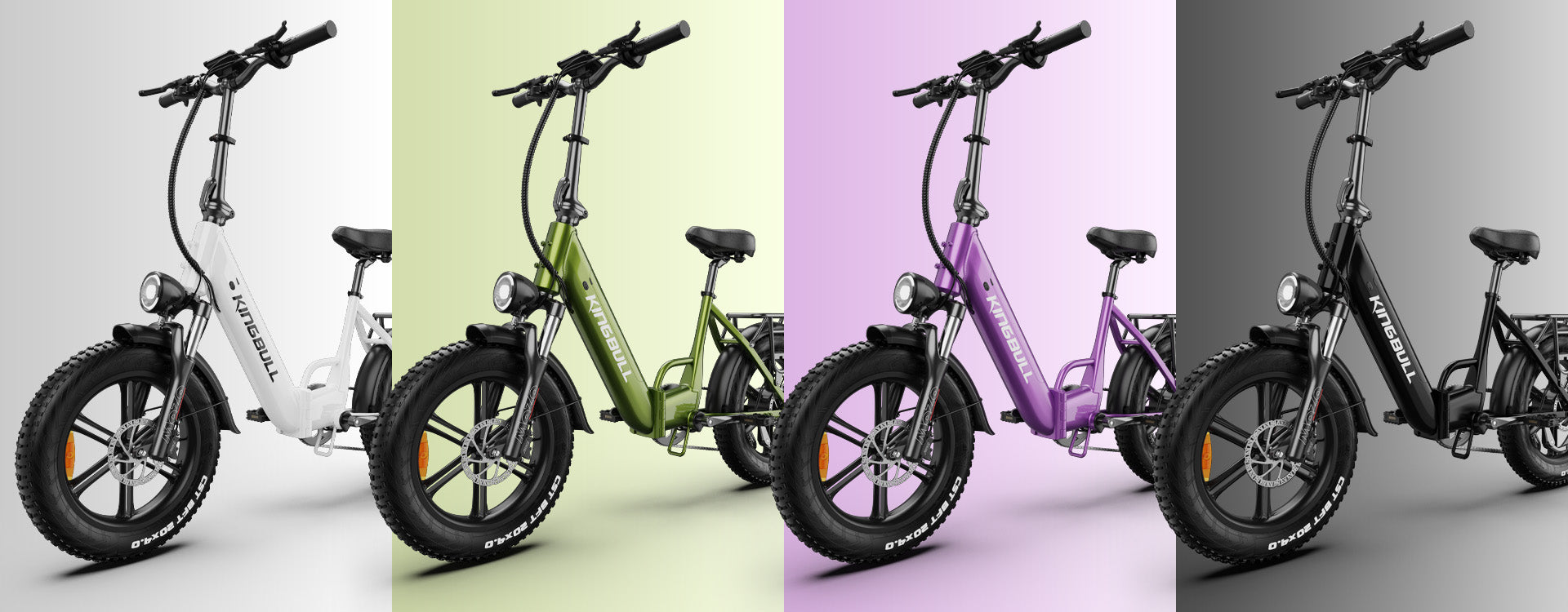

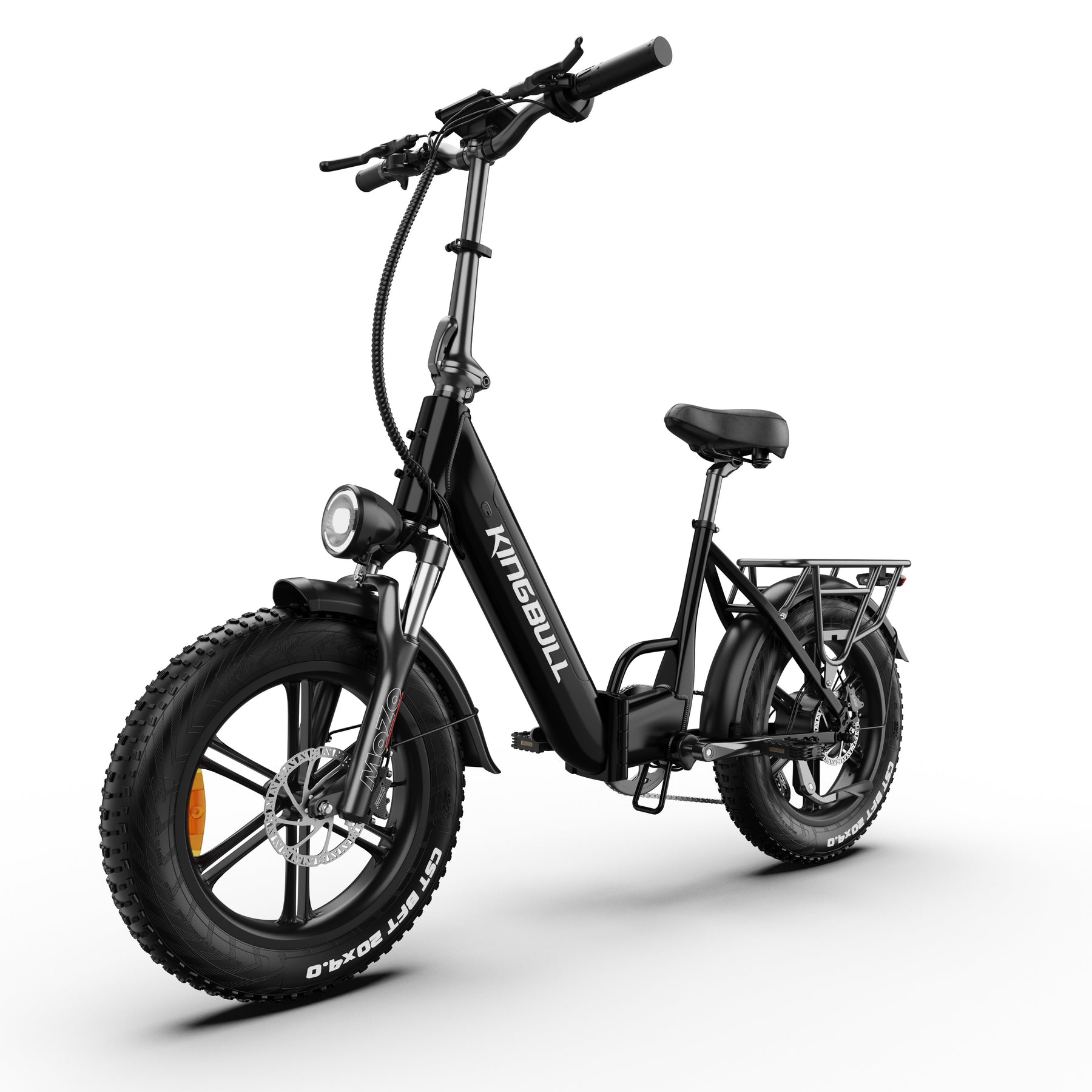

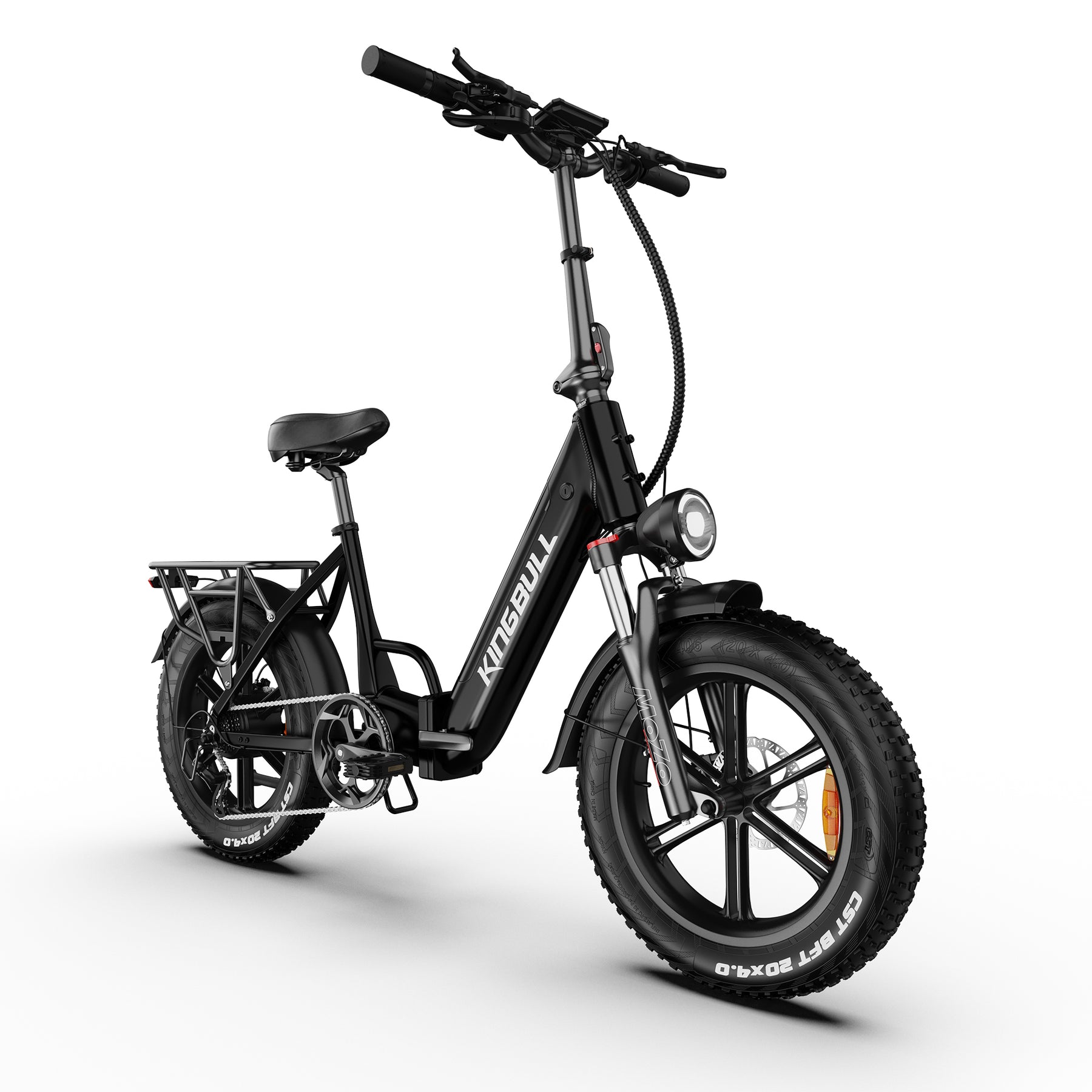

Kingbull Literider 2.0 | All Terrain Folding Electric Fat Bike
Regular price
$1,699.00
Sale price$1,099.00
Shipping: Within 2 Business Days
SAVE$600.00
- CA shipping, 3-7 days delivery

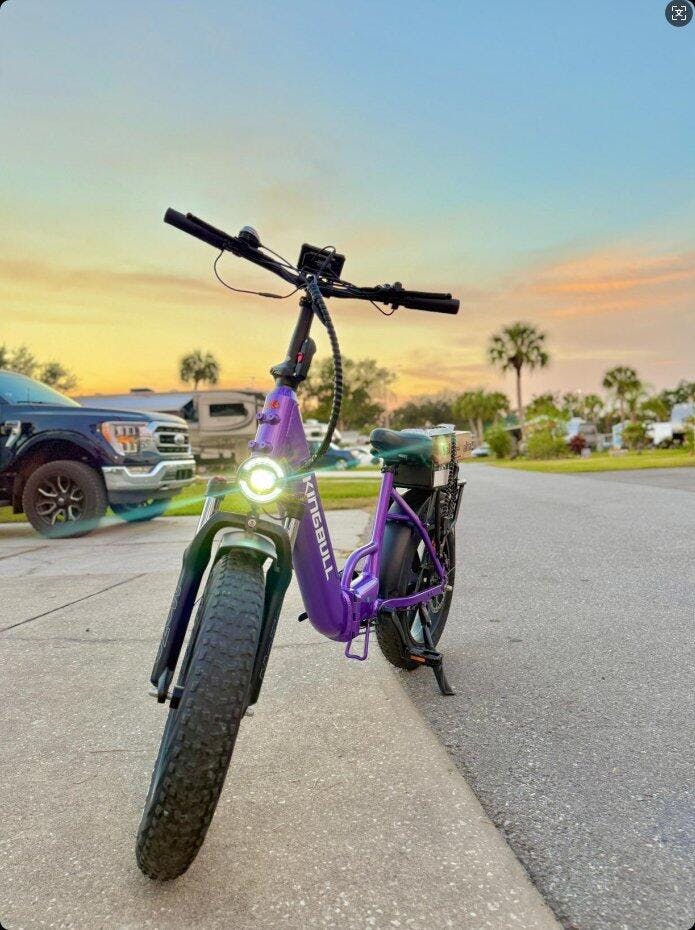

Purple & Black：Shipped around May 30.
Kingbull Literider 2.0 | All Terrain Folding Electric Fat Bike
Compatible Accessories
Compatible Accessories
Size & Fit
A —— Total Length 69.3in / 176 cm
B —— Lowest Handlebar Height 47.6 in / 121 cm
C —— Maximum Handlebar Height 51.6 in / 131 cm
D —— Minimum Seat Height 32.3 in / 82 cm
E —— Maximum Seat Height 39.4 in / 100 cm
F —— Rear Rack Height 25.2 in / 64 cm
G —— Handlebar Width: 26.2 in / 66.5 cm

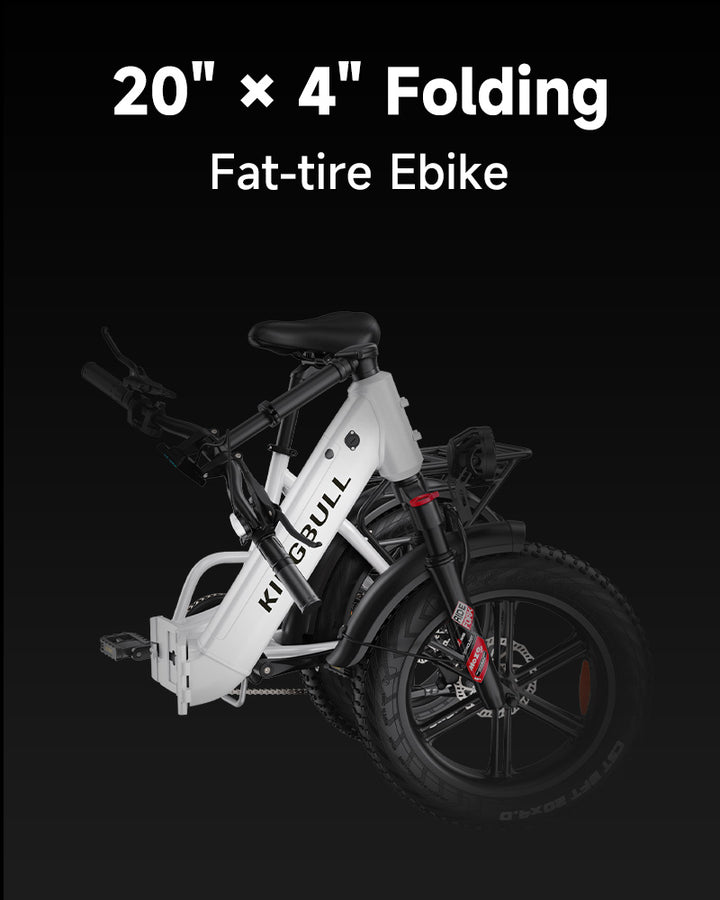

Folded Size: L*W*H: 30.7 in 17.7 in 31.5 in / 78cm 45cm 80cm
Technical Specifications
Parameter
- Max Range: 60 Miles
- Max Speed: 20MPH / Throttle only max speed 20MPH
- Weight: 71 lbs

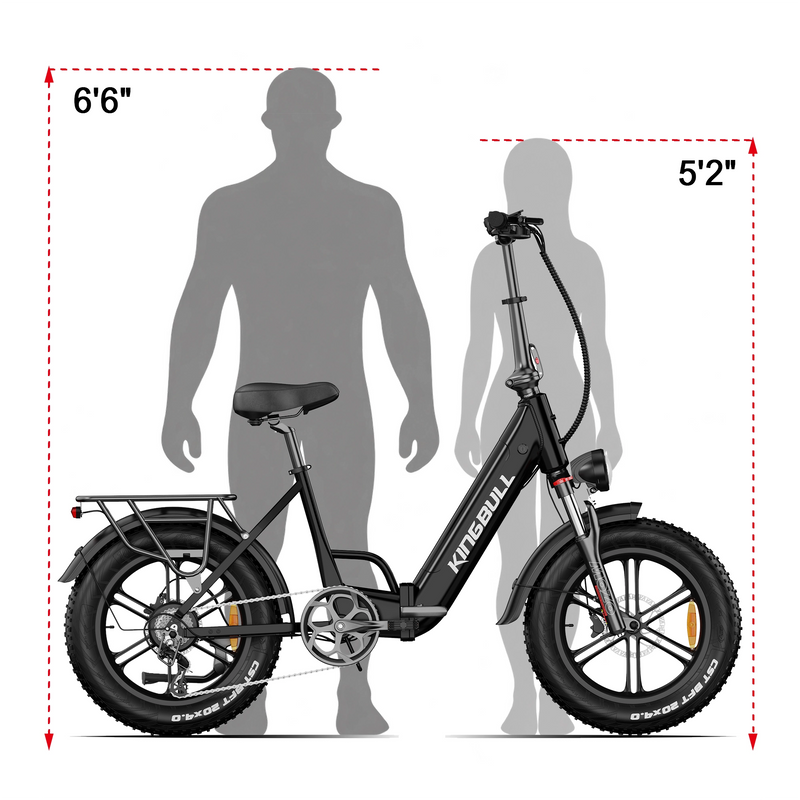

- Rider Height: 5'2" - 6'6"/ 157 cm - 196 cm
- Max Payload Capacity: 380 lbs
- Rear Rack Load Limit: 150 lbs
-
Classes: Class 2 / Adjustable to Class 3
Frameset
- Frame: All aluminum, removable integrated battery, tapered head tube, guided internal routing, 30.4mm seat tube, 12 mm thru axle
- Fork: MOZO FATMAN-ML, coil spring, 50mm travel, adjustable damping, lockable, 1-1/8" threadless straight
Wheels
- Rim: GBF-20, 20" magnesium alloy one wheel, M10*135*185MM
- Tires: CST C-1752, 20"*4.0", puncture-proof
-
Inner Tubes: CST 20"*4.0", Schrader

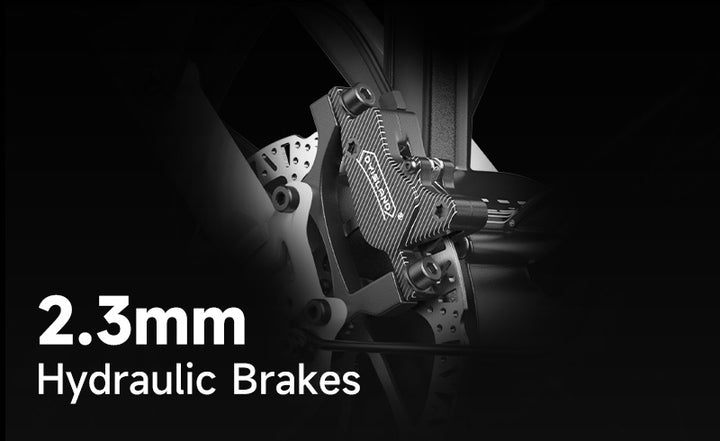

Brakes
- Front Brake: LD一D300, power-off brake lever, 2 pistons, 180mm disc, 1100mm oil pipe
-
Rear Brake: LD一D300, power-off brake lever, 2 pistons, 180mm disc, 2000mm oil pipe
Drivetrain
- Shifter: SHIMANO SL-TX50-7R, right side, 2400mm cable length, 7 speed
- Rear Derailleur: SHIMANO RD-TY21B, 7 speed
- Cassette: SHIMARO MF-TZ500, 14-28T, 7 speed
- Chain: KMC Z7, 112L, 7 speed
- Crankset: HDL-L145, 1/2"*3/32"*48T*152MM
- Chainrings: 48T
E-system

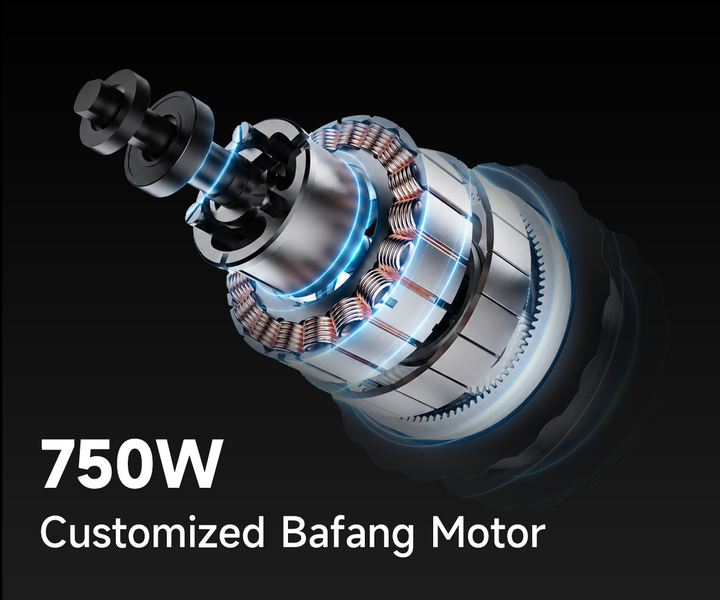

- Motor: (GD)BAFANG-20 750W brushless hub motor

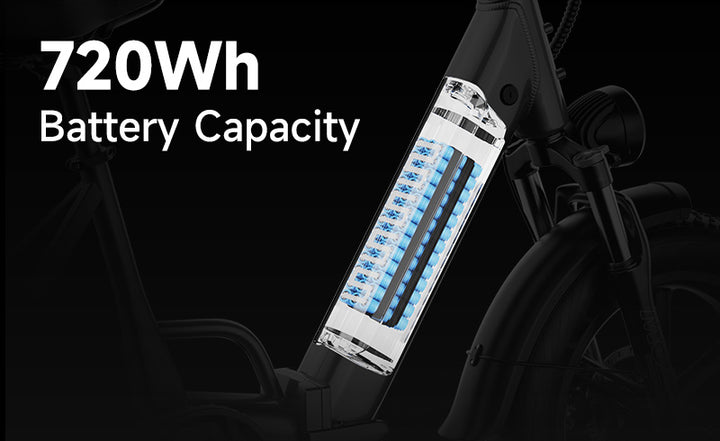

- Battery: 48V/720Wh Lithium Battery
- Controller: 48V/22A
- Display: KB35H custom color display
- Charger: US standard 2.0A smart charger, UL-certified
- Wiring Harness: Custom Kingbull wiring harness
- Sensors: SM-03 cadence sensor丨Brake sensor
- Throttle: FT158X, twist throttle, 3 Pins, 5V
- Light: 48V LED headlights, horn ; 48V tail light, brake highlight
Components
- Saddle: VM-189K, Eco leather, aluminum alloy rails
- Seatpost: SP-601, aluminum alloy, 30.4*300mm, with scale lines
- Handlebar: HB701, aluminum alloy, 22.2*25.4*2.2T*640MM
- Folding Stem: ZHD - WW23/S01, aluminum alloy, Φ28.6*Φ25.4, 10° forward, Φ28.6*210 adjustable tube
- Grips: HT420 rubber, length 120mm
- Pedals: M961F, aluminum alloy body, polypropylene border, foldable
