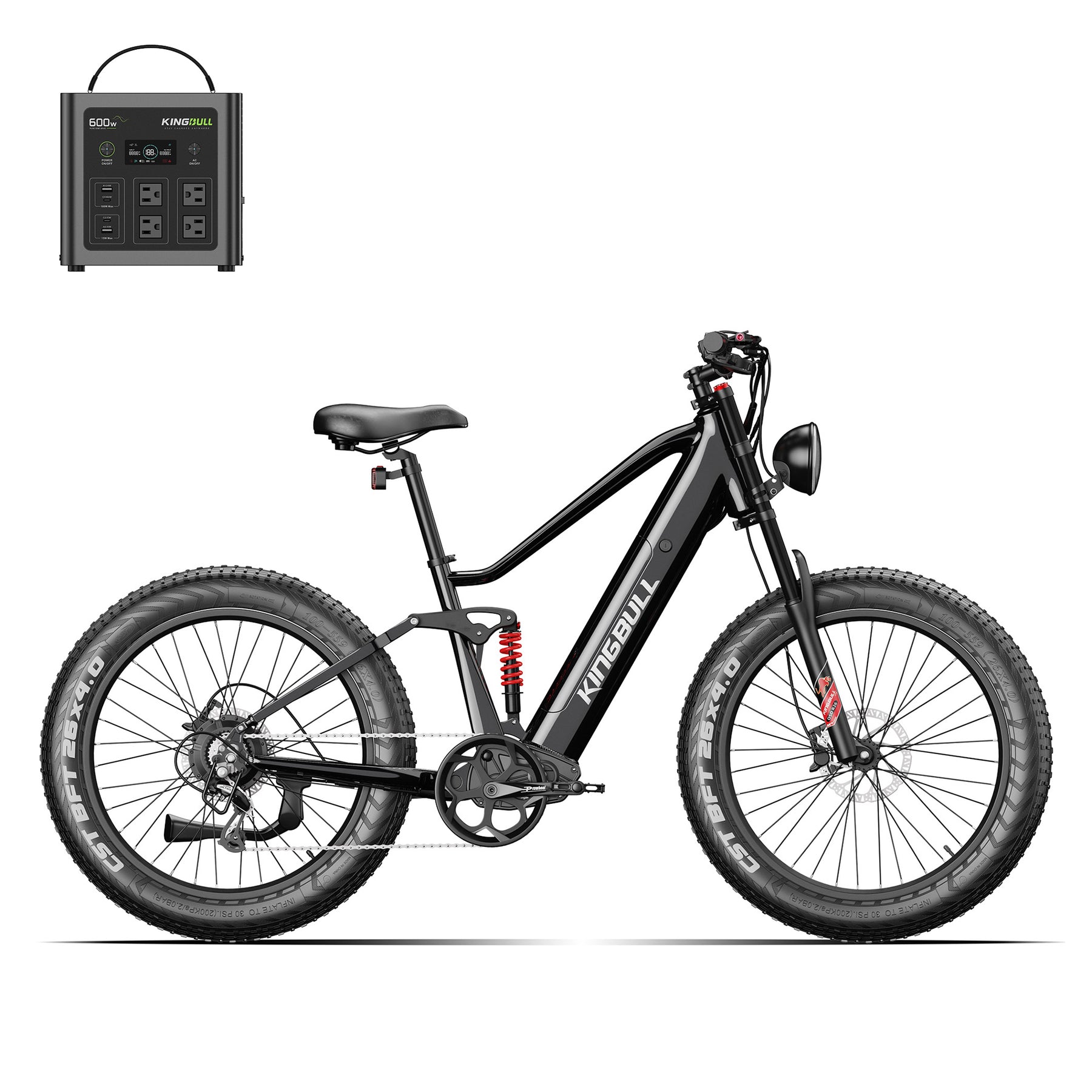

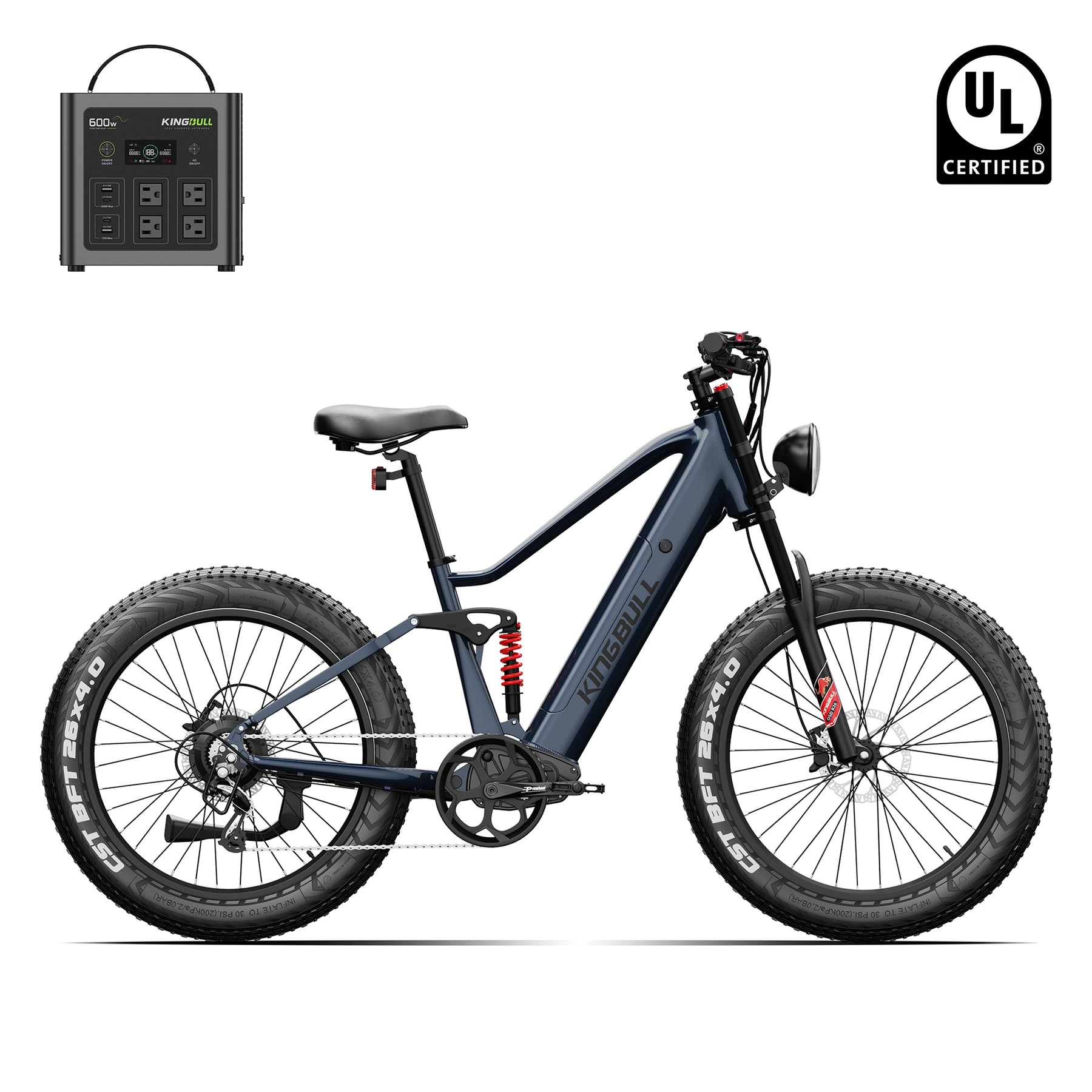

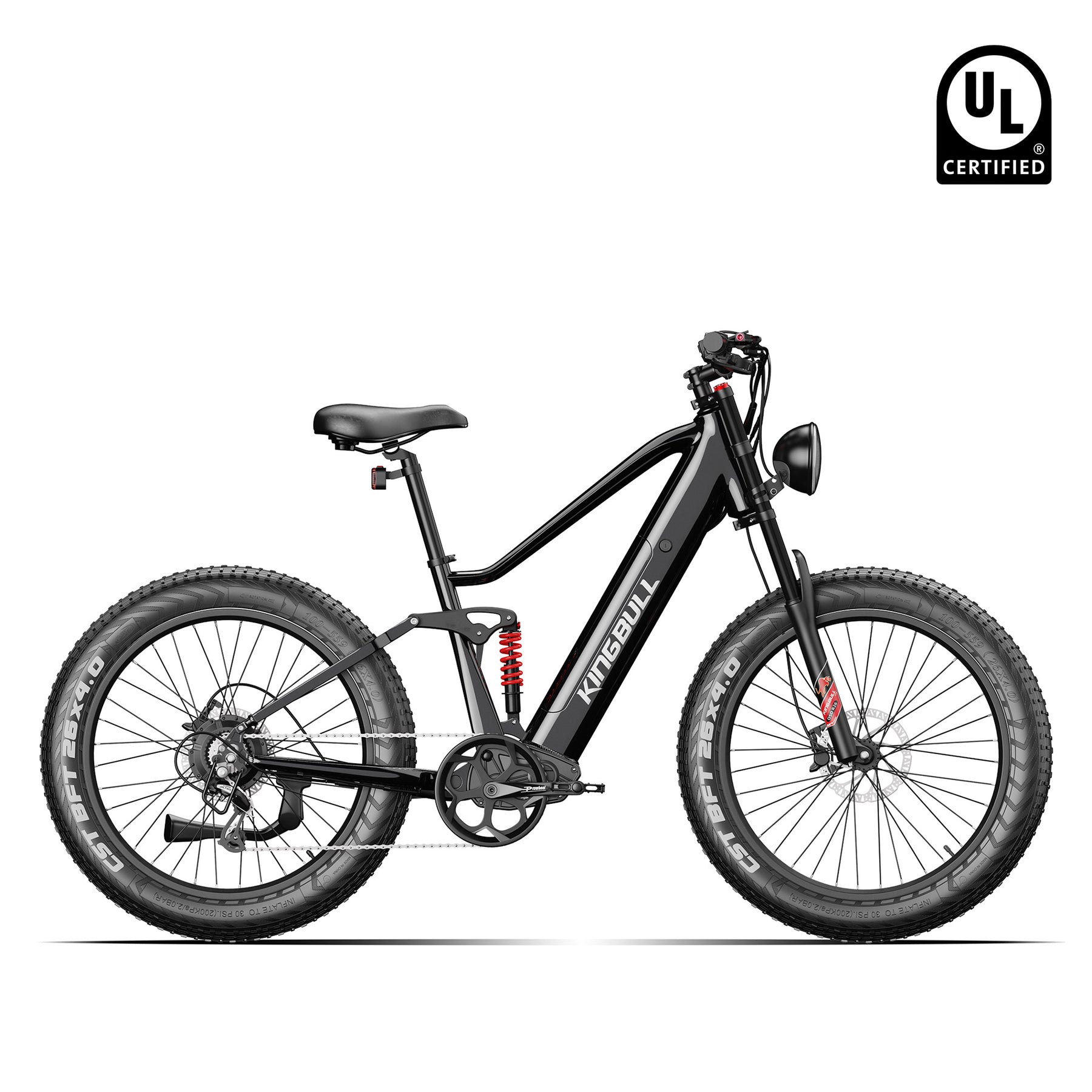

Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike
2-Year Warranty
Free Shipping
15-Day Return
No Tax
20,000+ Riders
Pass Test
Home / Ebikes / Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike

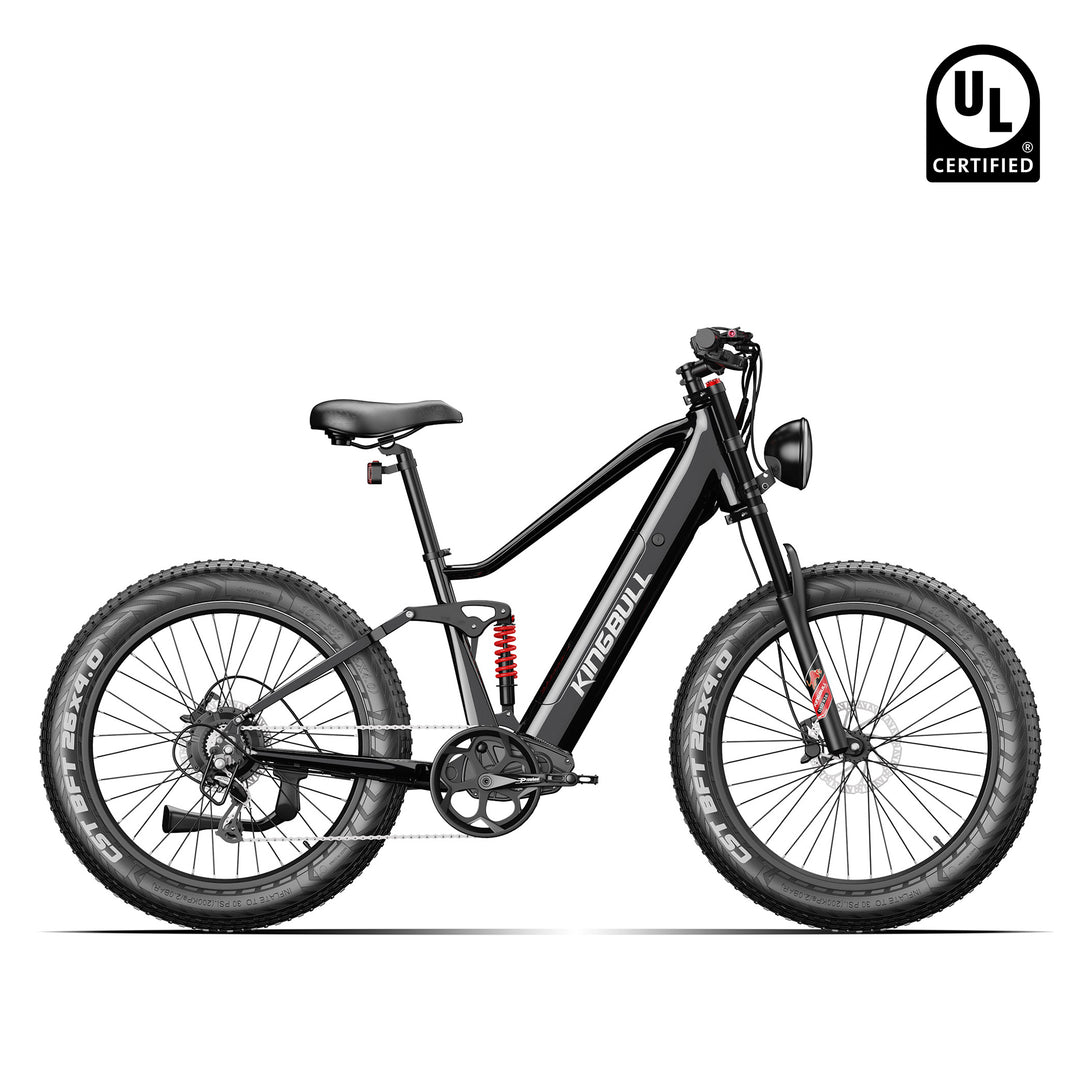

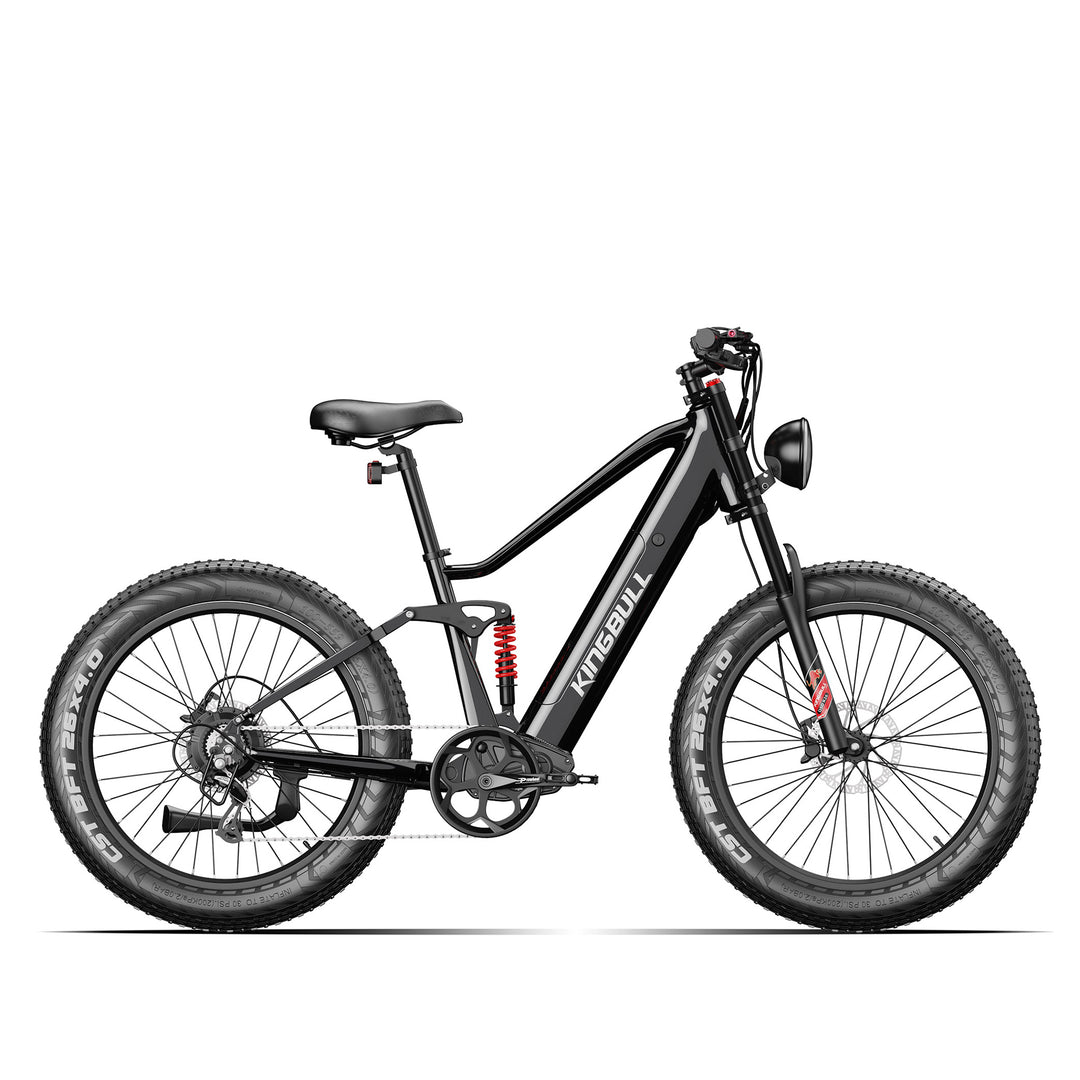

Kingbull Rover 2.0 | All Terrain Full Suspension Electric Bike

Terrain Crossing Electric Bike
$1,399.00
/
Shipping calculated at checkout.
Color
  • CA Shipping: Within 2 Business Days
  • Delivered around July 25.
Quantity
Size & Fit
Size & Fit
A —— Total Length 75.5 in / 192 cm
B —— Total Height 26.3 in / 68 cm
C —— Minimum Seat Height 33.4 in / 85 cm
D —— Maximum Seat Height 37.5 in / 95 cm
E —— Minimum upper tube height 29.5 in / 75 cm
F —— Handlebar Width: 28.5 in / 72.5 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
60 Miles
Max Speed
28MPH / Throttle only max speed 20MPH
Weight
80 lbs
Rider Height
5'6" - 6'5"/ 168 cm - 195 cm
Max Payload Capacity
400 lbs
Classes
Class 3(Default), Class 2
Frameset
Frame
All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 30.4mm seat tube, 12 mm thru axle
Fork
KINGBULL OSD-R26, coil spring, lockable, preload adjustable, 100mm travel
Shock
DNM DV-22AR, oil spring, adjustable damping, 45mm
Wheels
Rim
Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 257 MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap
Tires
CST C-1752, 26"*4.0", puncture-proof
Inner Tubes
CST 26"*4.0", Schrader
Brakes
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1000mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 2000mm oil pipe
Drivetrain
Shifter
SHIMANO SL-M315-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-M310, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7RB, 126L, 7 speed
Crankset
HDL-L145, 1/2"*3/32"*48T*170MM
Chainrings
48T
E-system
Motor
Bafang (GD) 750W brushless hub motor
Battery
SAMSUNG 48V/720Wh Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 30.4*300mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
$1,399.00

Core At A Glance

Motor

BAFANG 750W Brushless Hub Motor

Battery

15Ah (720Wh) Samsung Battery

Top Speed

28MPH(Throttle only max speed 20MPH)

Max Range

Up to 60 Miles

Sensor

Torque Sensor丨Brake Sensor

Brakes

Hydraulic Brakes

Conquer the Wild with the Upgraded Bafang 750W Motor
The upgraded 750W Bafang motor delivers 80Nm of torque to conquer steep climbs and rugged trails. Efficient, low-maintenance, and built to last.
Flush-fit Samsung battery aligns with bike frame – Rover 2.0 detail view
Samsung Battery
The Rover 2.0 is powered by a seamlessly integrated 15Ah (720Wh) Samsung lithium battery, encased in a precision-crafted aluminum alloy shell. Built to handle tough terrain, it offers exceptional waterproofing, efficient heat dissipation, and dual-layer protection against fire and impact. With trusted Samsung cells at its core, the Rover2.0 delivers reliable, long-lasting power—so you can ride with confidence, wherever the adventure leads.

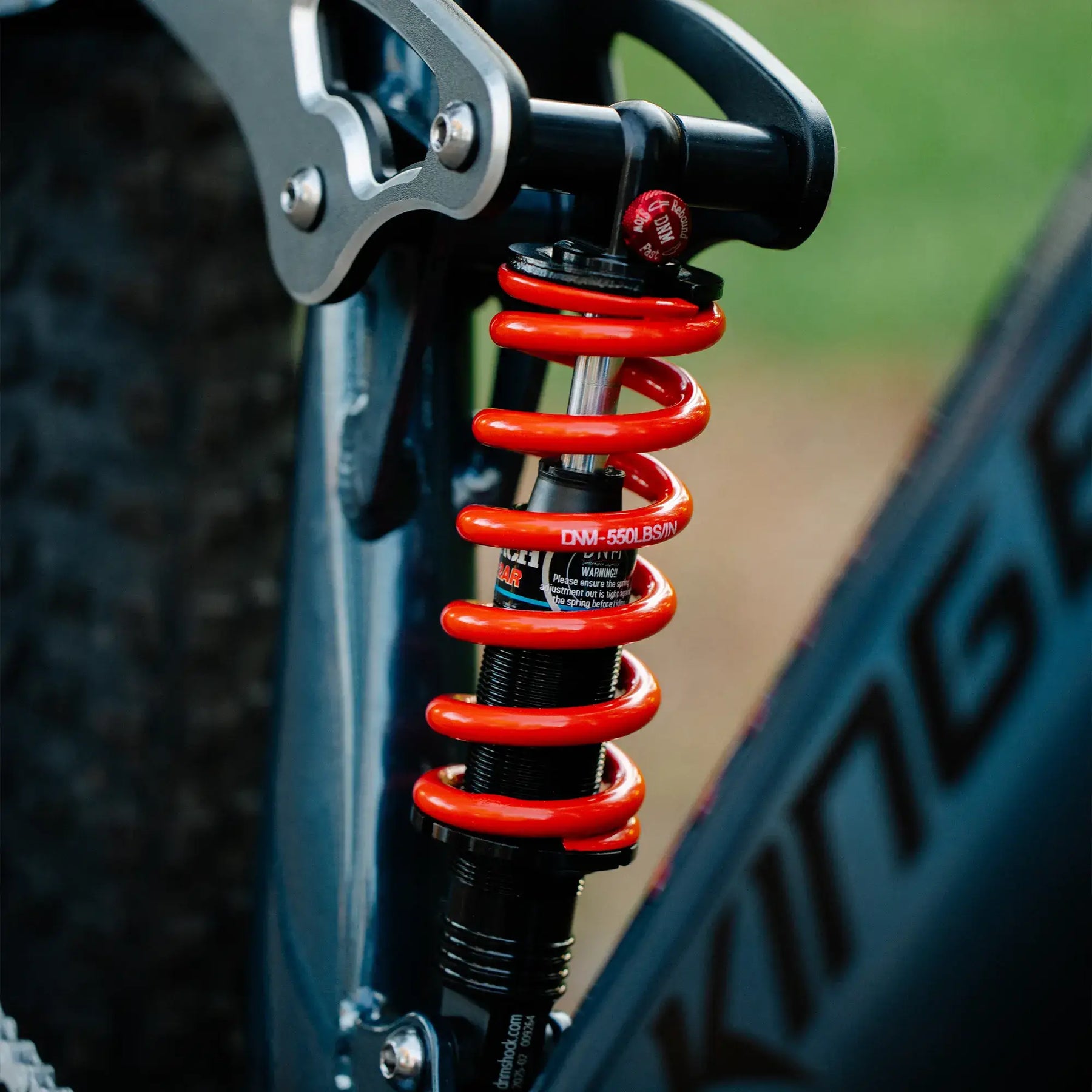

Kingbull Rover 2.0 four-bar linkage suspension frame – enhanced off-road control
Four-Bar Linkage Suspension and Full Suspension Systems
The Smooth Power of a Torque Sensor
Built on a true four-bar linkage system, the Rover 2.0 delivers advanced suspension performance for serious off-road riding. Its design minimizes pedal kickback and brake squat, giving you better control and stability across rugged terrain. With 100mm of front suspension travel and 45mm in the rear, it’s tuned to absorb trail vibrations and mid-sized impacts—keeping your ride smooth, confident, and composed on every adventure.
A torque sensor delivers power that feels intuitive and responsive, seamlessly matching your pedaling effort in real time. The harder you pedal, the more support you get—creating a ride that feels natural, controlled, and energizing. It also promotes efficient power usage, helping to extend battery life so you can ride longer with confidence.

Features & Highlights

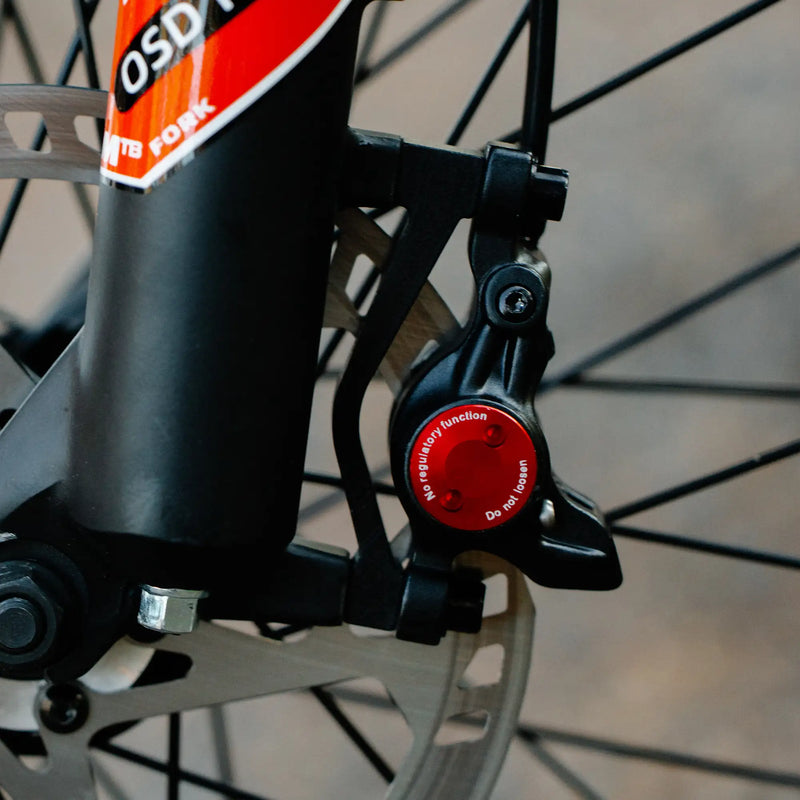

Powerful hydraulic disc brakes in use – Kingbull off-road electric bike
Hydraulic Brakes
Powerful stopping force at your fingertips. Tackle muddy trails, steep descents, and sharp turns with confidence. One pull, total control—ride hard, brake harder.

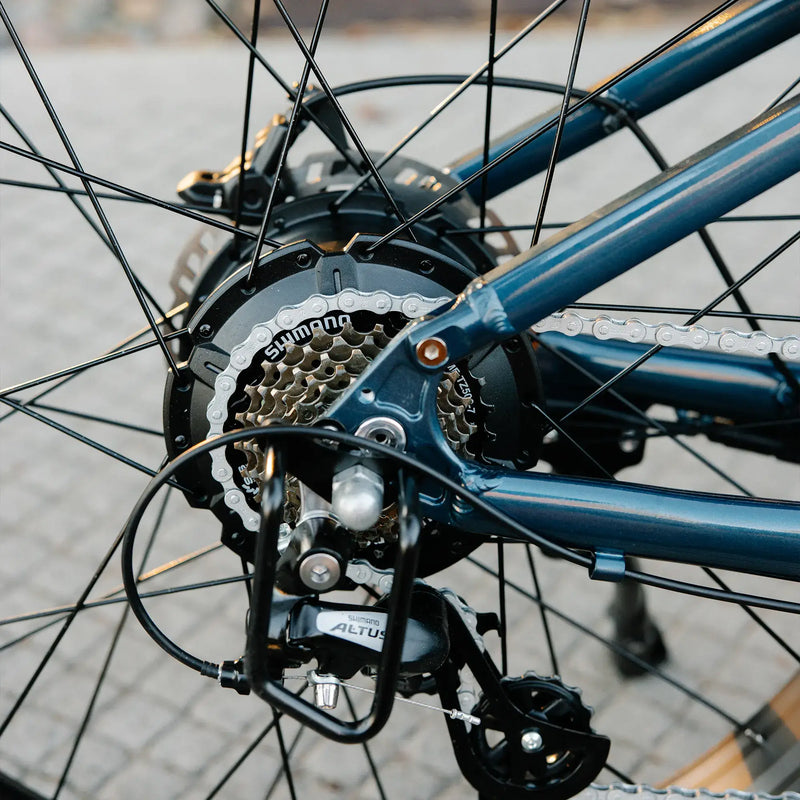

Smooth shifting with Shimano 7-speed – KINGBULL Rover2.0 transmission
Shimano 7 Speed
Free and seamless switching between 7 speedmodes.
26X4" CST All-Terrain Tires
Provides a smooth and easy ride even in the most challenging terrain and weather conditions.

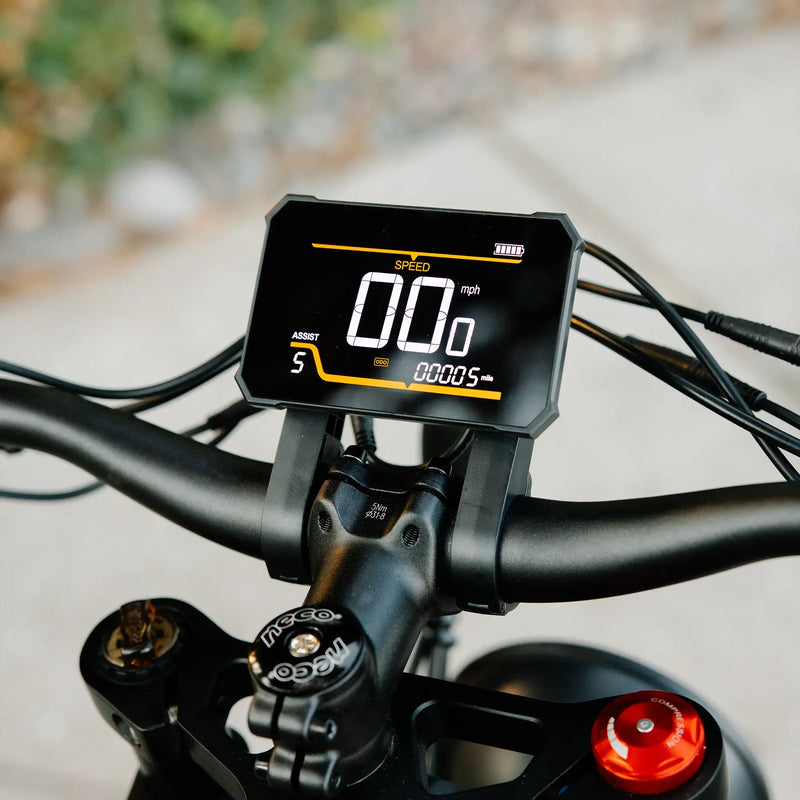

Backlit LCD Display
Backlit color display, clearly visible in sunlight, provides riding information and makes it easy for riders to adjust their riding mode.

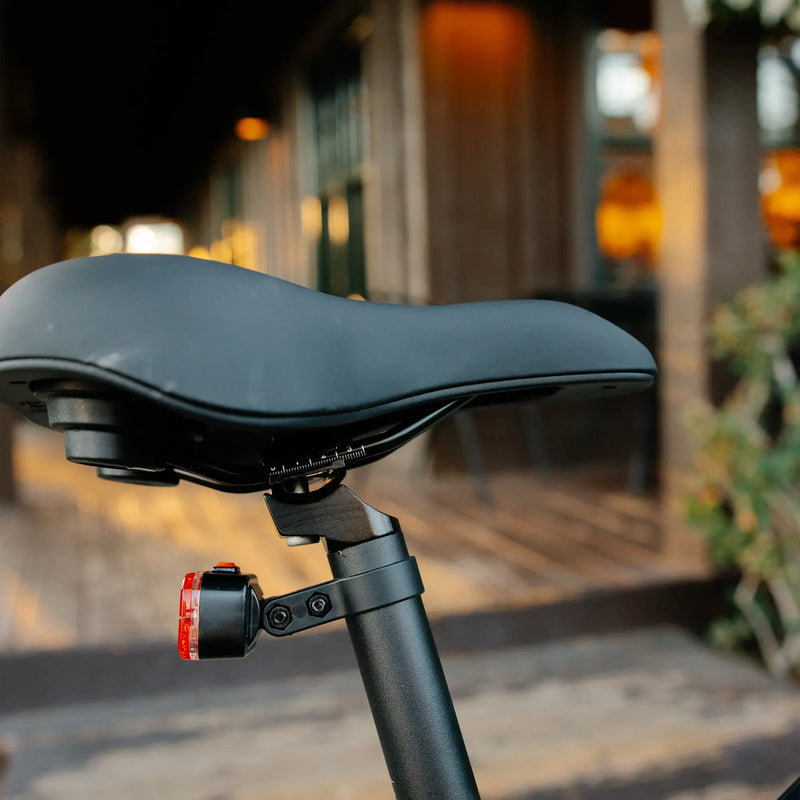

Breathable Sport Saddle
Adjustable design with upgraded breathable holesenhances comfort, making your daily city ridessmoother and more enjoyable.

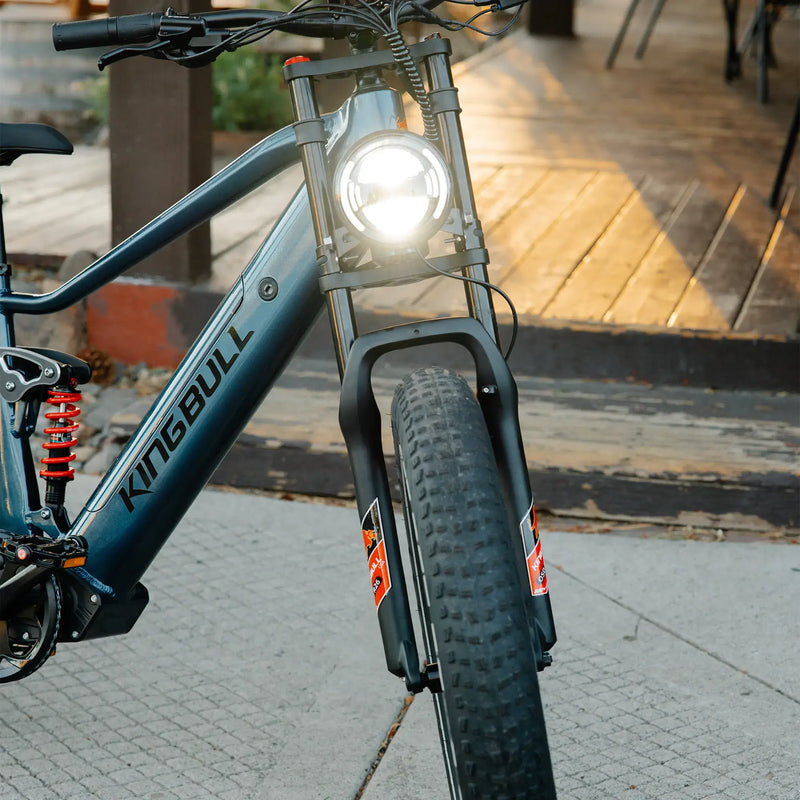

Integrated 48V LED Lights
Kingbull 48V headlights are more powerful, improve visibility and ensure the safety of night riding.
Size & Fit
A —— Total Length 75.5 in / 192 cm
B —— Total Height 26.3 in / 68 cm
C —— Minimum Seat Height 33.4 in / 85 cm
D —— Maximum Seat Height 37.5 in / 95 cm
E —— Minimum upper tube height 29.5 in / 75 cm
F —— Handlebar Width: 28.5 in / 72.5 cm
Technical Specifications
Max Range
60 Miles
Max Speed
28MPH / Throttle only max speed 20MPH
Weight
80 lbs
Rider Height
5'6" - 6'5"/ 168 cm - 195 cm
Max Payload Capacity
400 lbs
Classes
Class 3(Default), Class 2
Frame
All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 30.4mm seat tube, 12 mm thru axle
Fork
KINGBULL OSD-R26, coil spring, lockable, preload adjustable, 100mm travel
Shock
DNM DV-22AR, oil spring, adjustable damping, 45mm
Rim
Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 257 MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap
Tires
CST C-1752, 26"*4.0", puncture-proof
Inner Tubes
CST 26"*4.0", Schrader
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1000mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 2000mm oil pipe
Shifter
SHIMANO SL-M315-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-M310, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7RB, 126L, 7 speed
Crankset
HDL-L145, 1/2"*3/32"*48T*170MM
Chainrings
48T
Motor
Bafang (GD) 750W brushless hub motor
Battery
SAMSUNG 48V/720Wh Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 30.4*300mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Can I cancel for free after placing an order?
You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
How to Unlock Your Ebike’s Top Speed?
You can change your e-bike's maximum speed in the screen menu P08.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dan Putney
FUN TO RIDE !

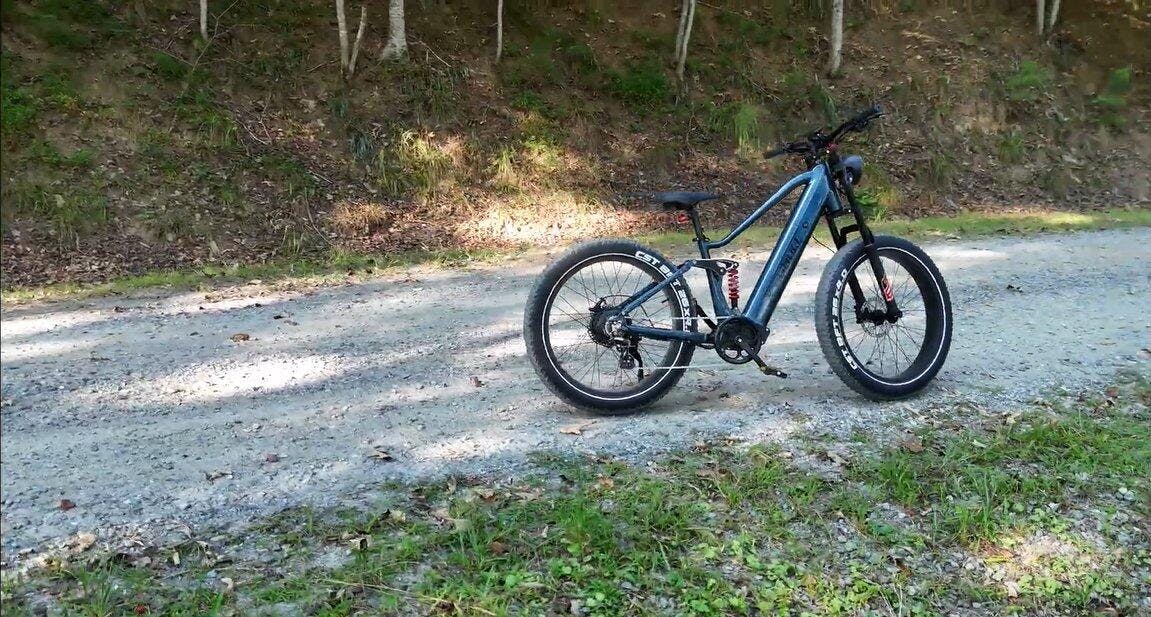

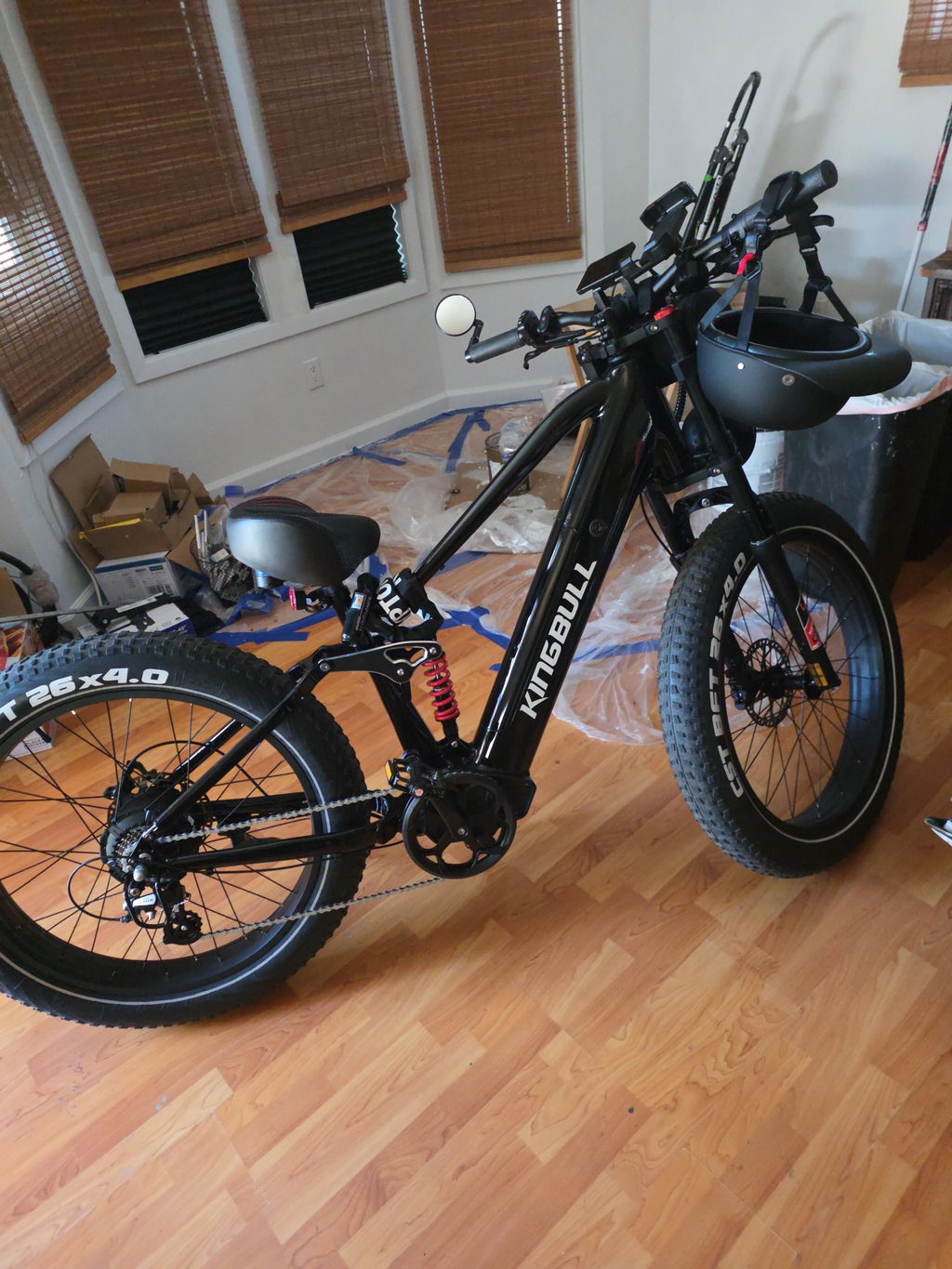

I LOVE my "Rover", because the "suspension" helps me Still ride at Seventy- Eight . !
