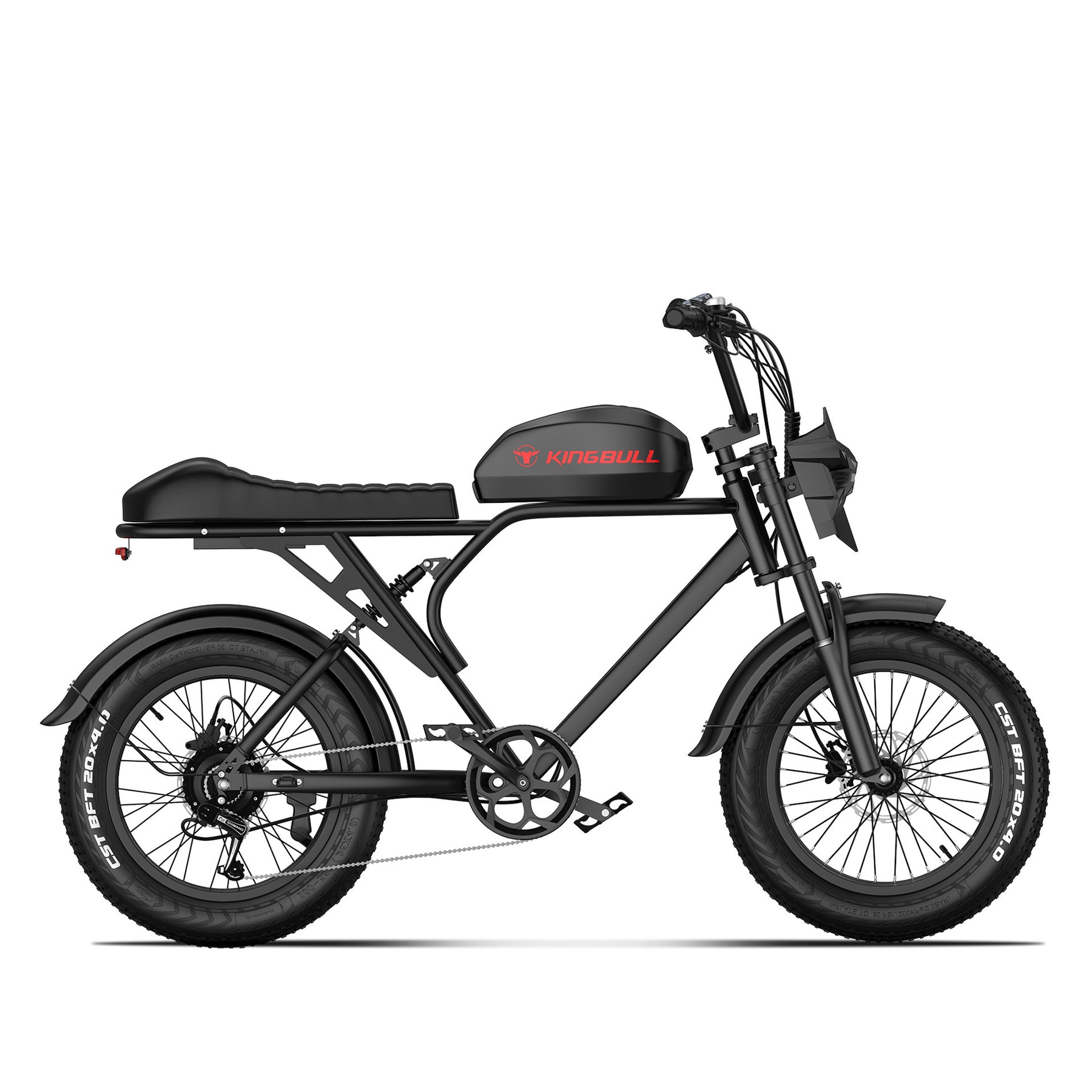

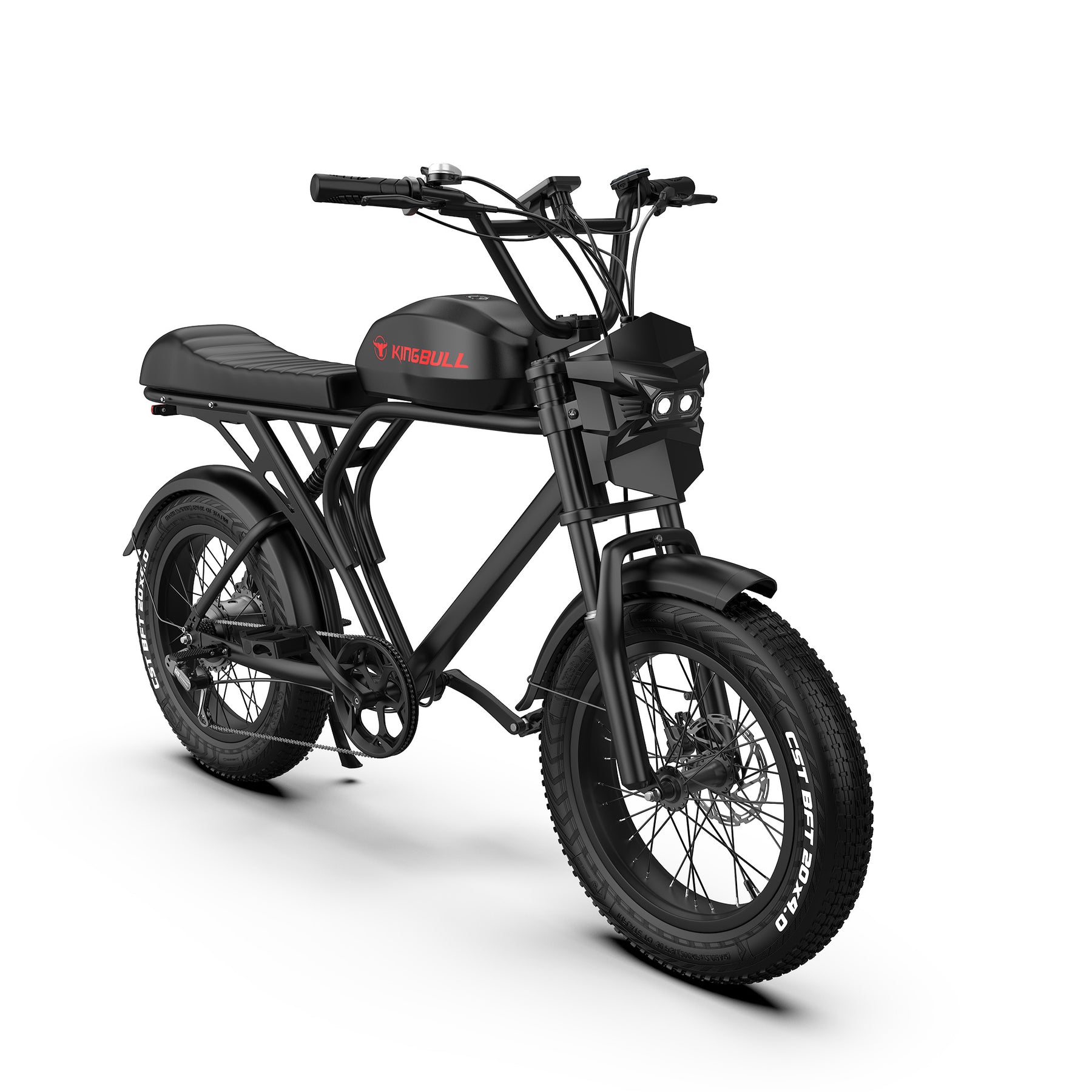

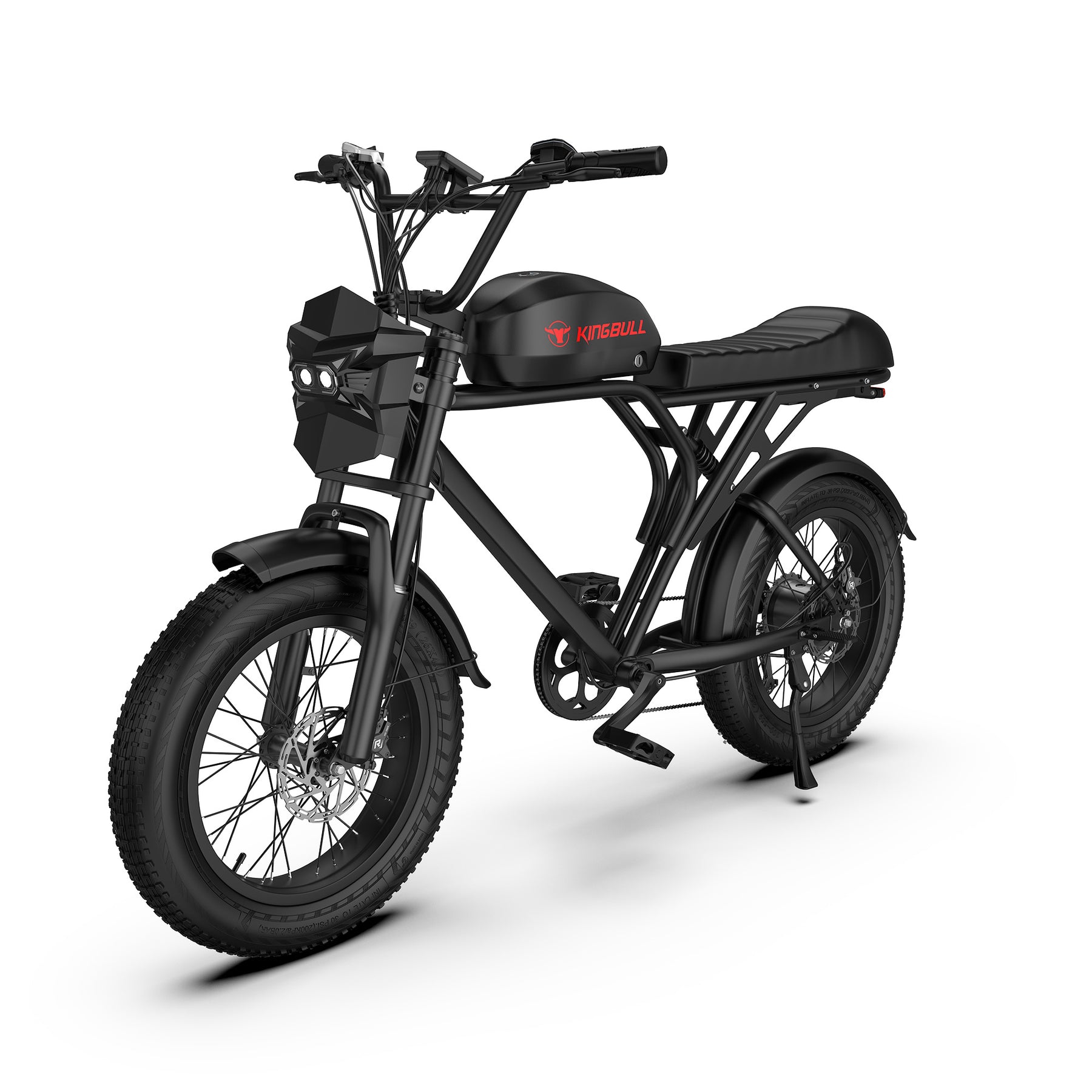

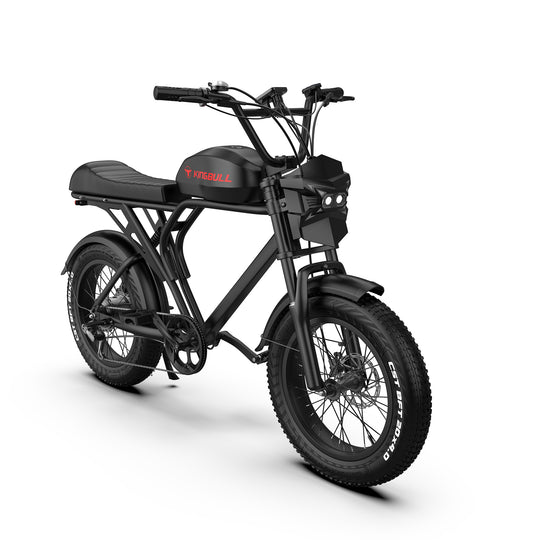

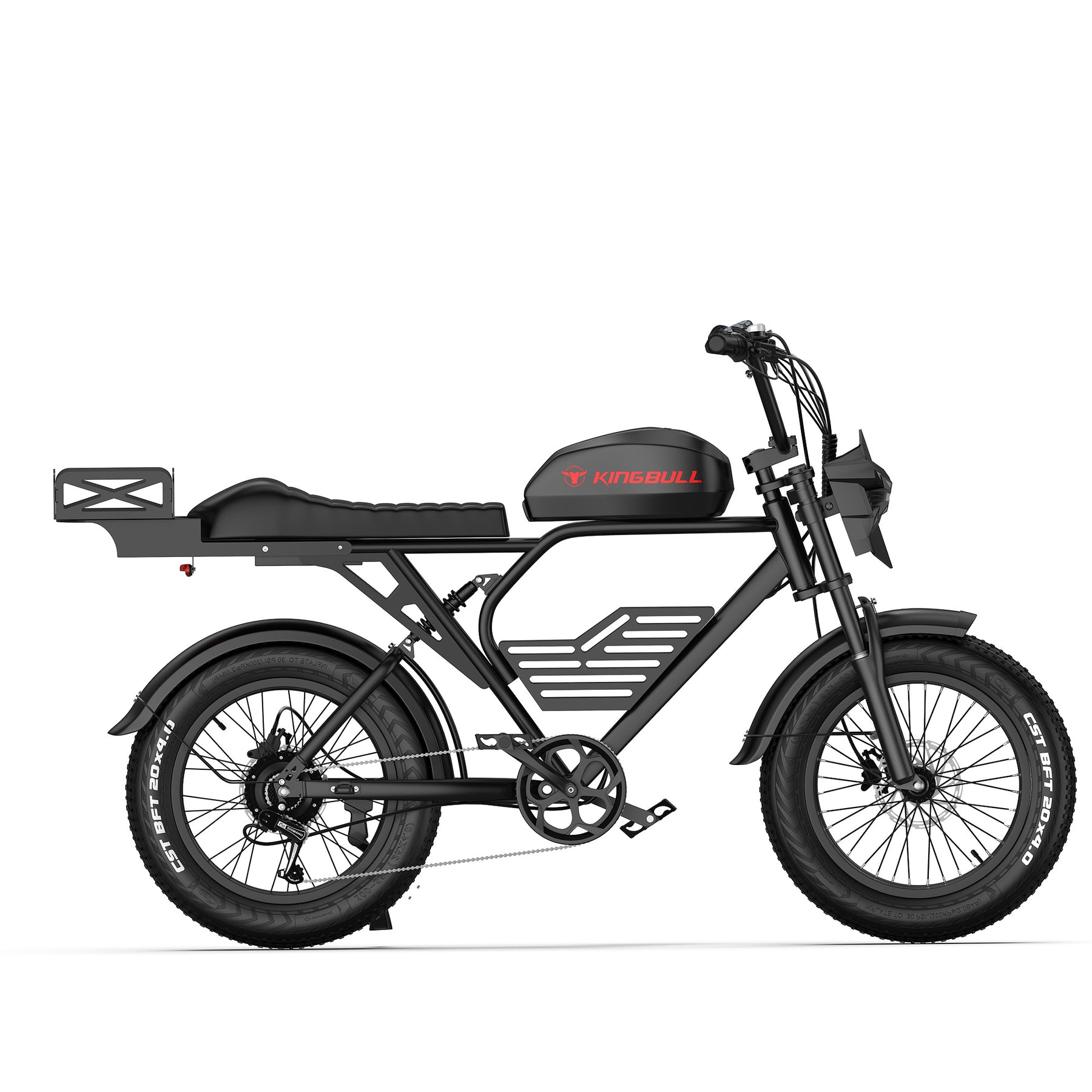

Kingbull Expedition | All-Terrain Moped-Style Electric Bike

Retro Style, Endless Adventure
$1,199.00
/
Shipping calculated at checkout.
  • Ships from U.S. warehouse within 2 business days (excluding pre-sale items)
Color
Style
Quantity
payment type
Size & Fit
Size & Fit
A —— Total Length: 66.9 in / 170 cm
B —— Total Height: 42.5 in / 108 cm
C —— Seat Height: 31.9 in / 81 cm
D —— Seat Width: 22.0 in / 56 cm
E —— Handlebar Width: 26.8 in / 68 cm
Technical Specifications
Technical Specifications
Parameter
Model
Expedition
Max Range
120 Miles (under ideal riding conditions)
Max Speed
28 MPH
Weight
94 lbs

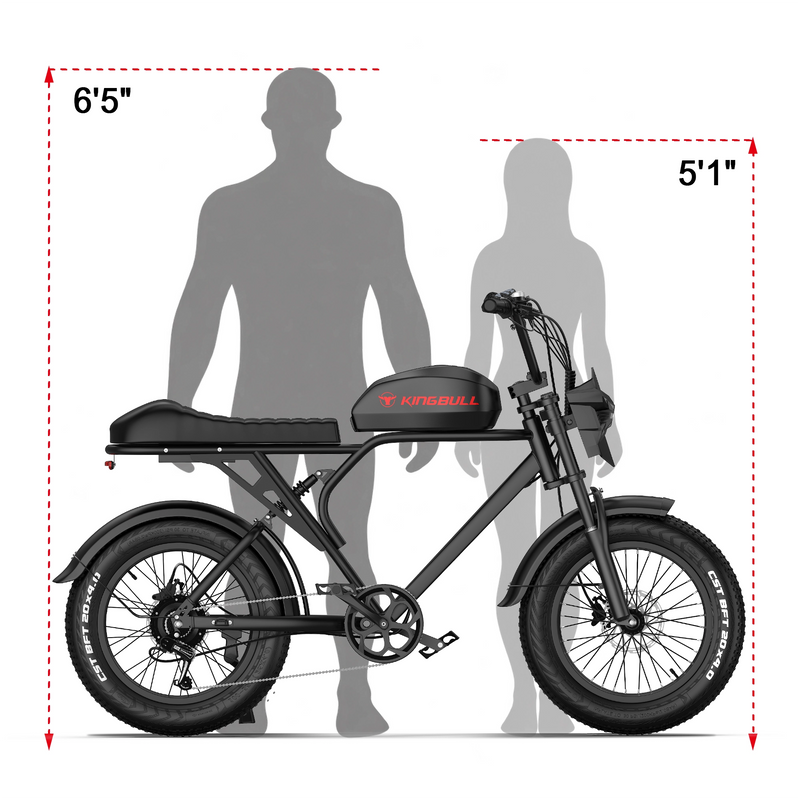

Rider Height
5'1" - 6'5"
Max Payload Capacity
350 lbs
Rear Basket Load Capacity
65 lbs
Mid-Mounted Basket Load Capacity
20 lbs
Frameset
Frame
20*4.0" Steel Frame with Rear Suspension, equipped with front and rear fenders
Fork

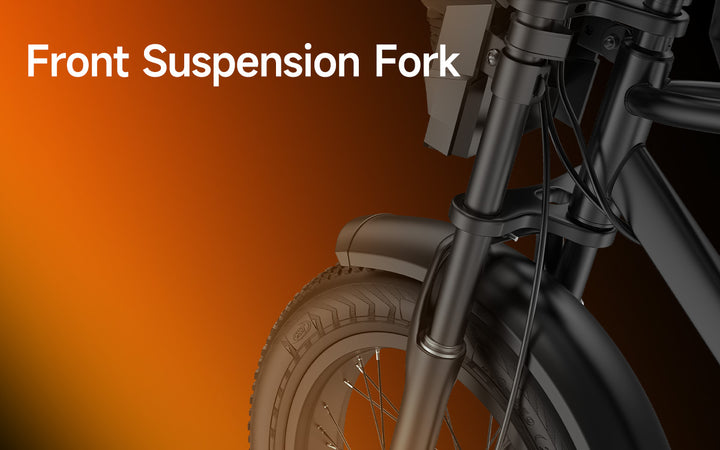

Dual-crown suspension, hydraulic spring, tapered steerer, lockable, 80mm travel
Shock
Aluminum Alloy Body, Black Coil Spring
Wheels
Rim
Front: 20" Wide Aluminum Alloy Rim, 36H, 85mm Profile, Φ573MM, Rear: 20" Wide Aluminum Alloy Rim, 36H, 85mm Profile
Hub Front
Sealed Bearing, Quick-Release Axle, Steel Construction, Disc Brake Mount
Spoke
High-Strength Steel, 12G/13G, Black Finish, Copper Nipples
Tires
CST 20"*4.0"
Inner Tubes
20"*4.0", Schrader
Recommended Tire Pressure
25–28 PSI
Brakes
Front Brake
Hydraulic disc brake, power-off brake lever, 2 pistons, 180mm*2.3mm disc, 1100mm oil pipe, black finish
Rear Brake
Hydraulic disc brake, 2 pistons, 180mm*2.3mm disc, 1950mm oil pipe, black finish
Drivetrain
Shifter
SHIMANO SL-TX50-7R, right side, 2400mm cable length, 7 speed
Crankset
Square-taper steel crankset with dual chain guard; 9/16" pedal threads
Chain
1/2" × 3/32", 126L
E-system
Motor
750W brushless hub motor
Battery
Kingbull 48V/1512Wh(31.5Ah) Lithium Battery
Controller
48V/22A
Display
full color multi-function display display
Charger
US standard 3.0A smart charger
Wiring Harness
Custom Kingbull wiring harness
Sensors
Cadence sensor丨Brake sensor
Pedal Assist
5 Levels
Walk Mode
3 MPH
Throttle
Twist throttle
Light
DH035P-M2 with integrated horn; WD-09, 48V; integrated taillight, brake light, and turn signals
Water Resistant
IPX6
Components
Seat
Black leather; Fixed design, not adjustable
Pedals
9/16" plastic pedals with reflectors
Passenger Footrests
4 mm aluminum folding footrests
Kickstand
Adjustable aluminum alloy; 220–275 mm adjustment range
Fenders
Plastic

1 × Expedition e-bike
1 × User manual
1 × Tool kit
1 × Charger
1 × Pump
1 × Bike Lock

$1,199.00

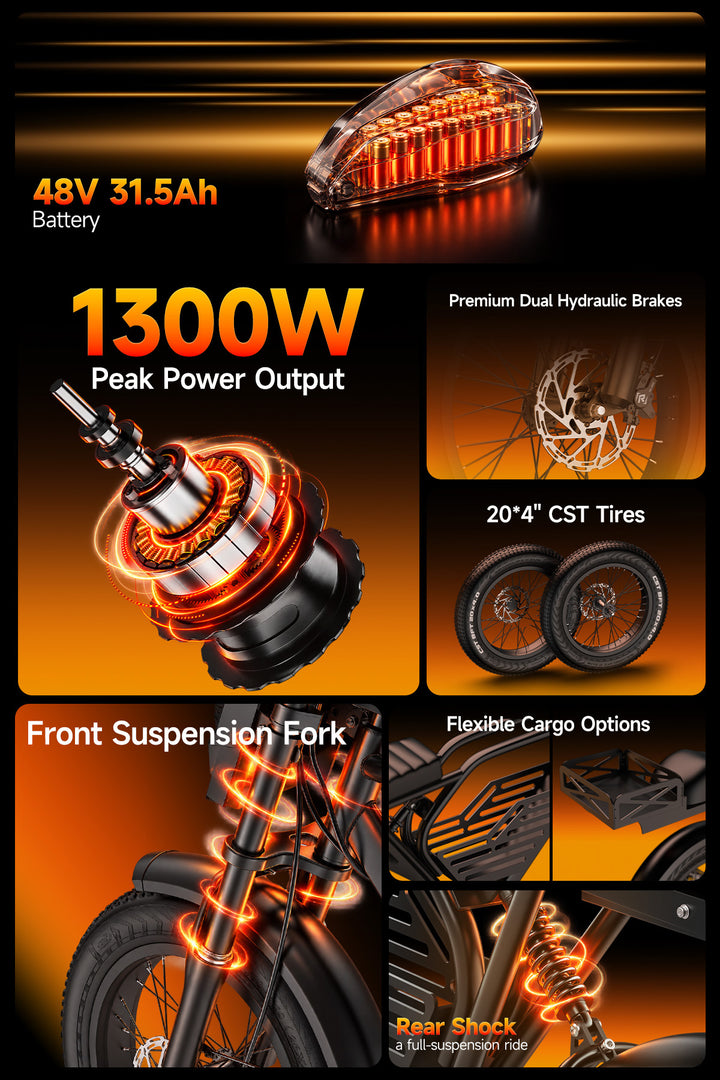

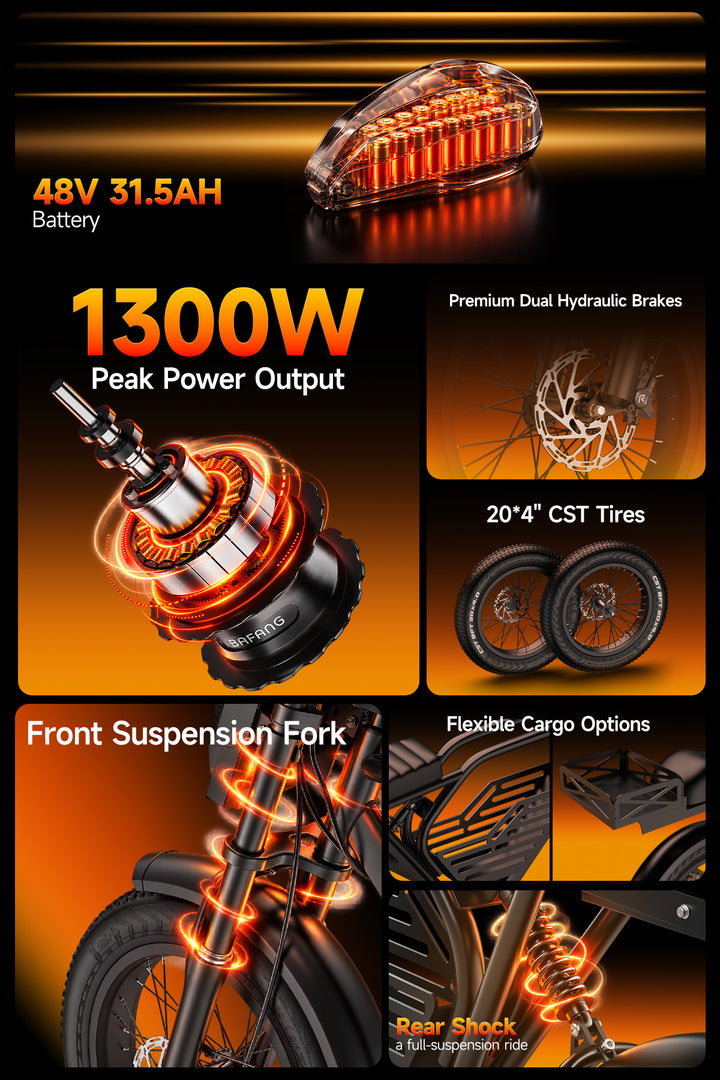

Core At A Glance

motor icon
Motor

750W Motor

1300W Peak Power

Battery charging icon
Battery

31.5Ah (1512Wh) Lithium-ion Battery

Top Speed
Top Speed

28MPH

Max Range icon
Max Range

Up to 120 Miles

Sensor icon
Sensor

Cadence Sensor / Brake Sensor

Brakes icon
Brakes

Hydraulic Brakes

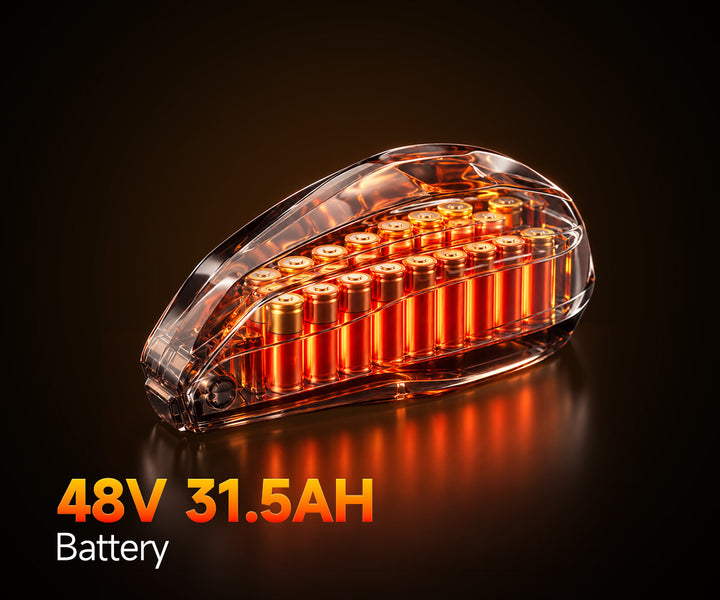

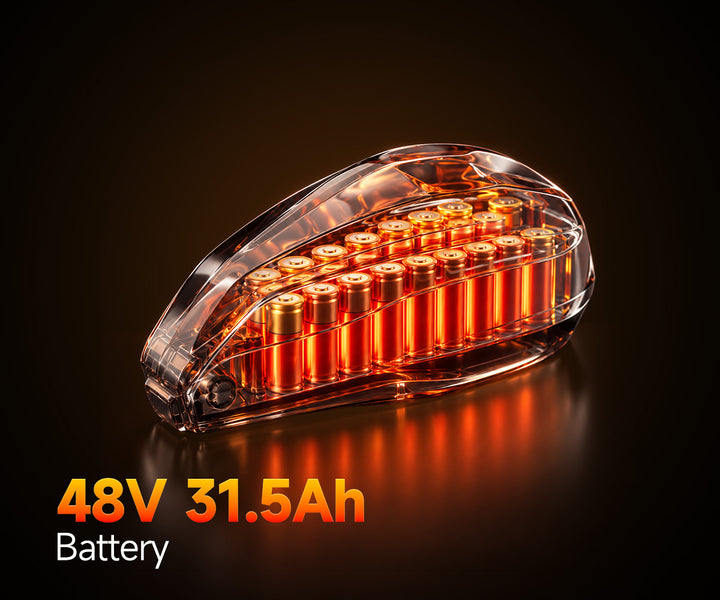

Kingbull Expedition 48V 31.5Ah e-bike battery with up to 120 miles of range.

Maximum Confidence

Moped Style. Built for Adventure.

Turn heads with bold, retro moped-inspired styling. Built for riders who crave individuality and a little adventure, the Expedition brings vintage character and modern electric riding together. Take the scenic route, explore new paths, and make every ride your own.

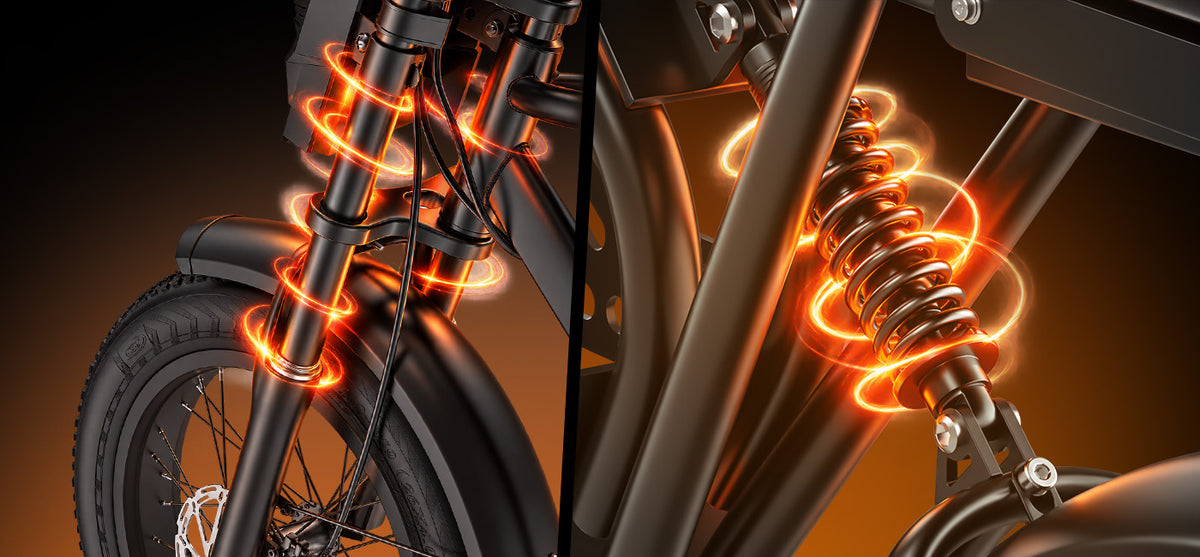

ROUGH TRAILS. SMOOTHER RIDES.

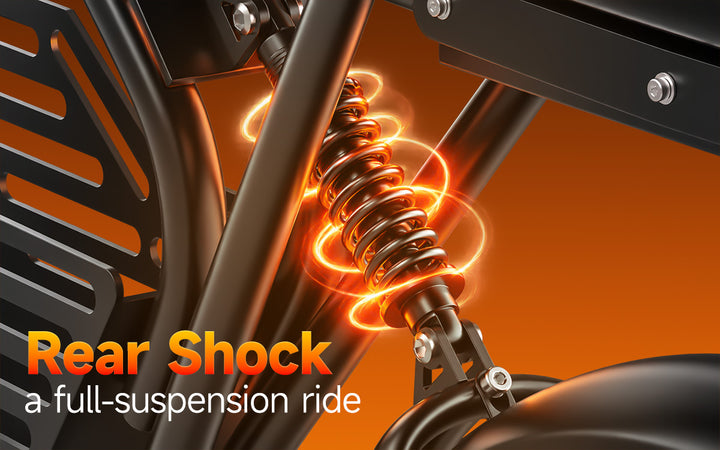

Engineered with front and rear suspension, the Kingbull Expedition absorbs road impacts and smooths out uneven terrain for a more composed, controlled ride. From broken city pavement to loose gravel and rugged backroads, the dual-suspension setup helps reduce jolts and keep your ride comfortable, so you can explore farther with confidence.

GO FURTHER. WORRY LESS.

A high-capacity 31.5Ah battery delivers up to 120 miles of range, giving you the freedom to take the longer route, tackle demanding climbs, ride into headwinds, and venture out for weekend camping—with fewer charging stops and more miles ahead.

CLIMB HIGHER. CONQUER MORE.

Powered by a 750W motor, the Kingbull Expedition delivers powerful performance to take on steep hills with confidence. When the road rises, power up and push forward—no backing down from the climb ahead.

Features & Highlights

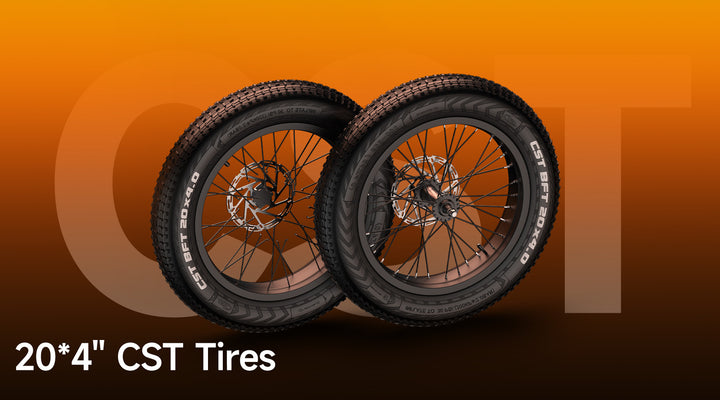

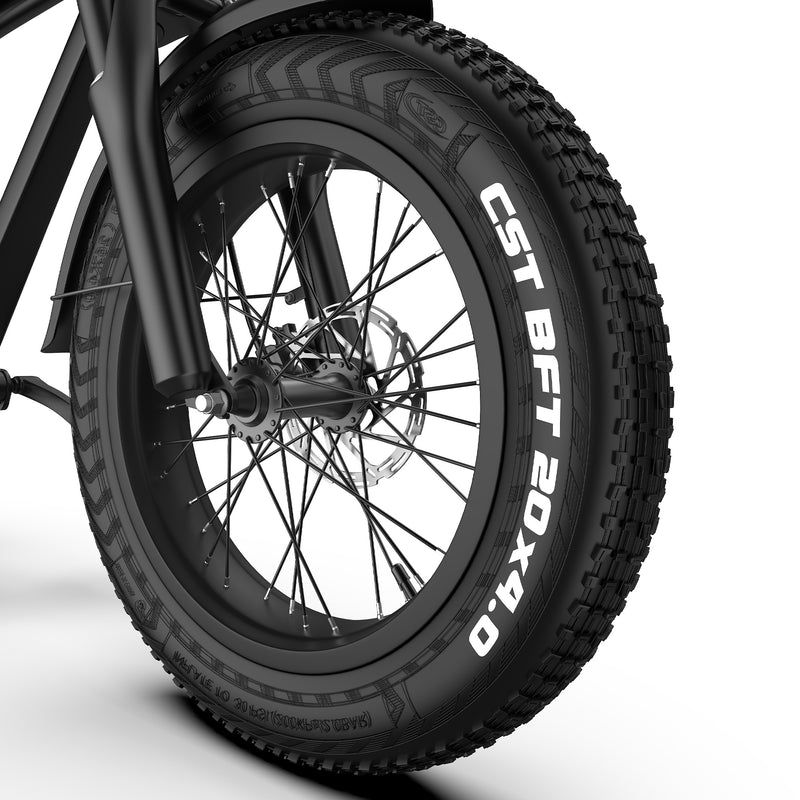

20"×4.0" CST Tires
The 26" × 4.0" CST all-terrain tires feature a wide tread for better traction and a specialized pattern for confident climbing and turning.

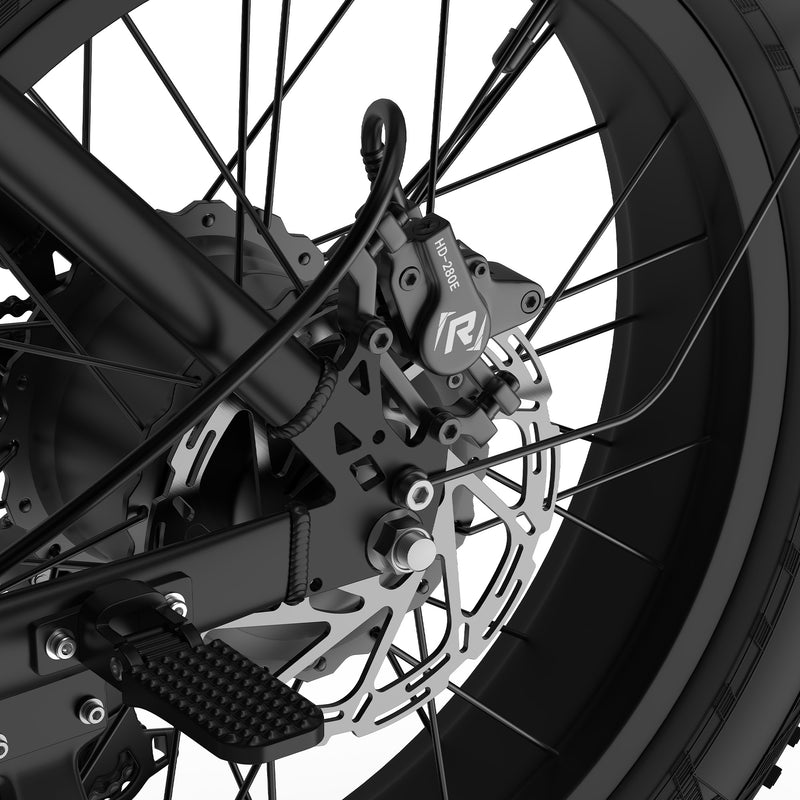

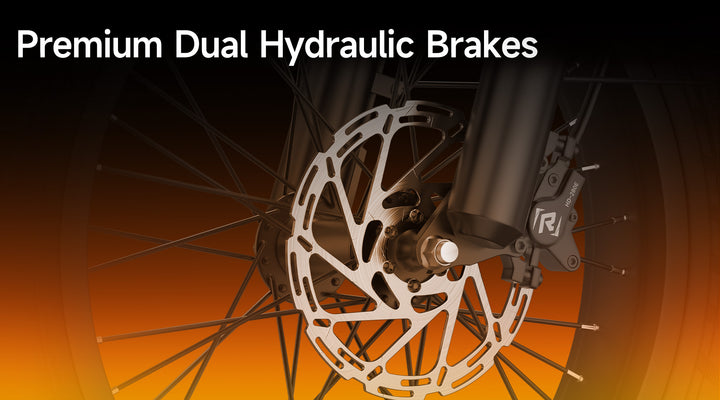

Hydraulic Brakes
Dual hydraulic brakes deliver responsive stopping power and reliable control on steep descents and challenging terrain.

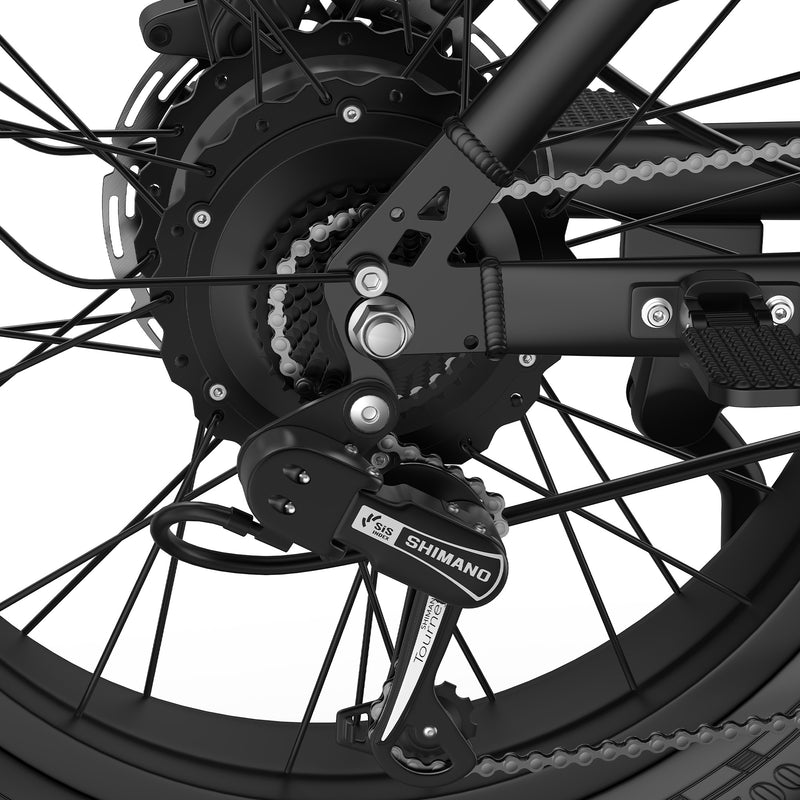

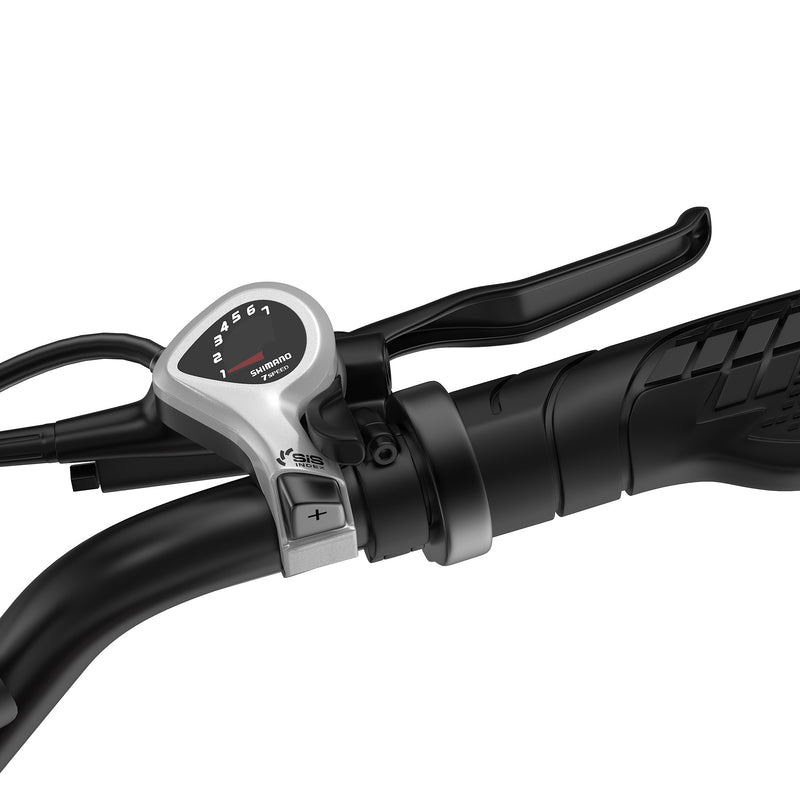

SHIMANO 7-Speed Gearing
Enjoy smooth, reliable gear shifts and effortless control across changing terrain.

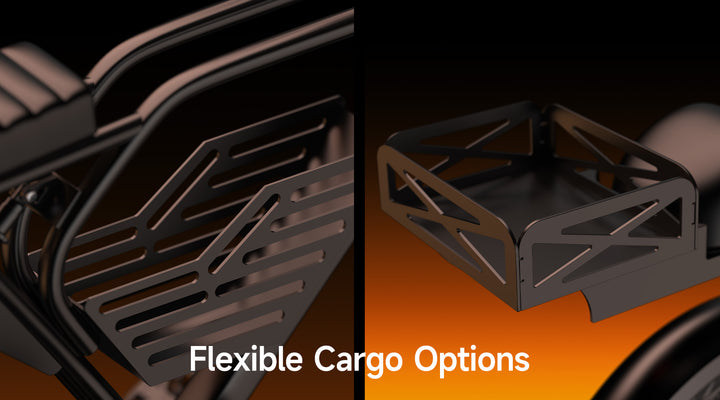

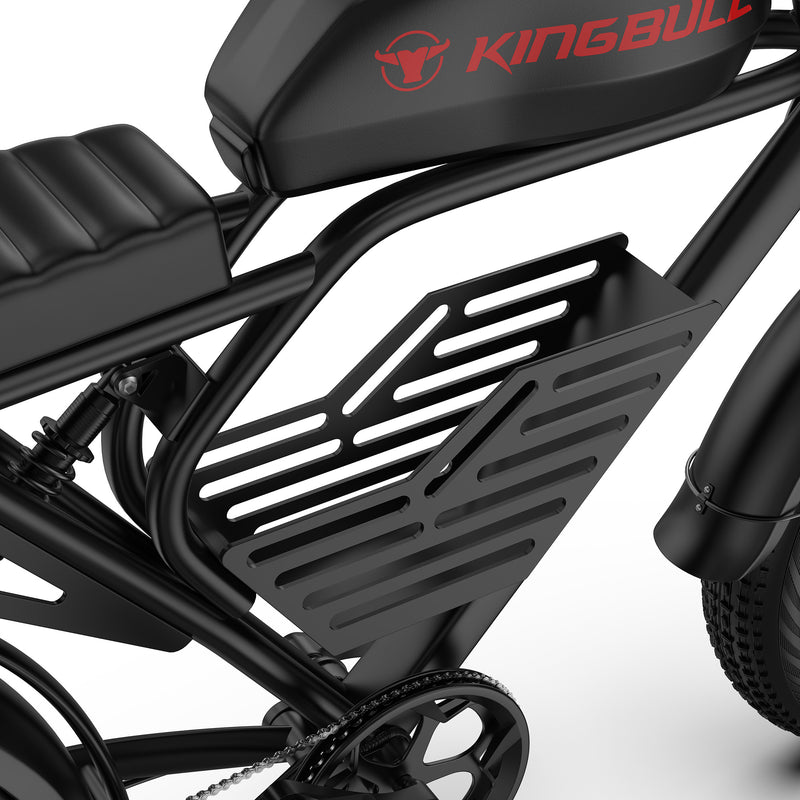

Optional Storage Baskets
Add an optional rear or mid-mounted basket for extra cargo space, so you can carry more and ride worry-free.
Twist Throttle
The twist throttle delivers responsive acceleration and precise control on city streets and rugged trails.

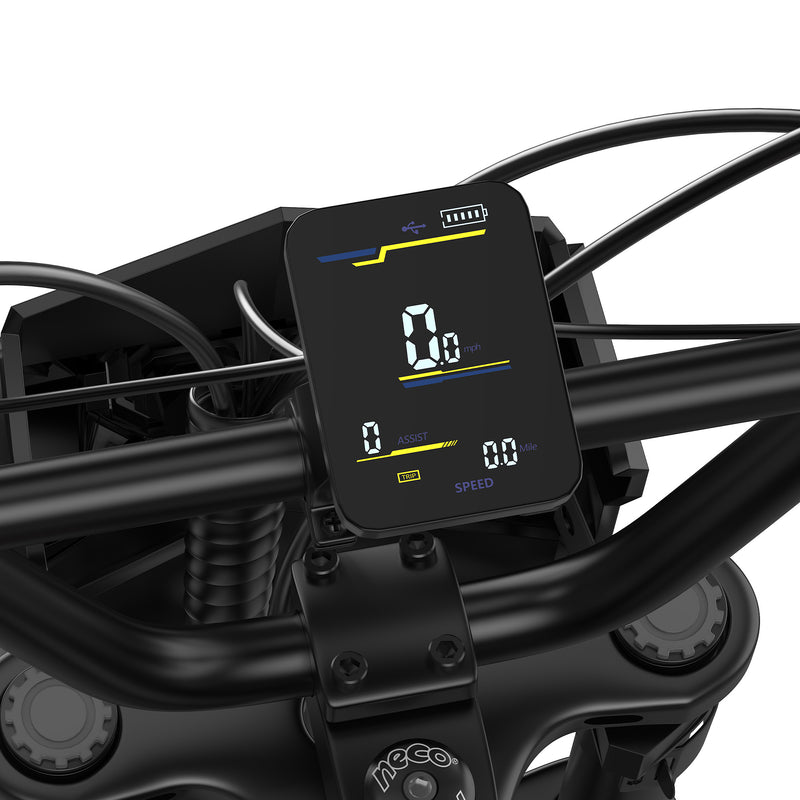

Backlit LCD Display
The handlebars feature easy controls, a clear LED display, and non-slip grips for a comfortable, agile ride.

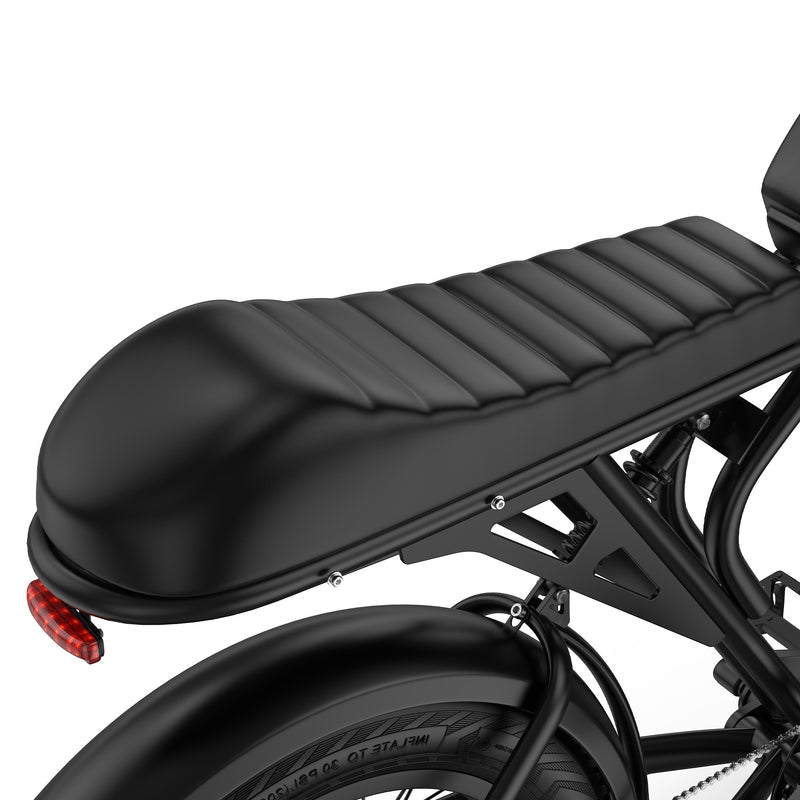

Retro Black Saddle
High-quality PU leather provides durable comfort with a classic look, combining style and support for every ride.

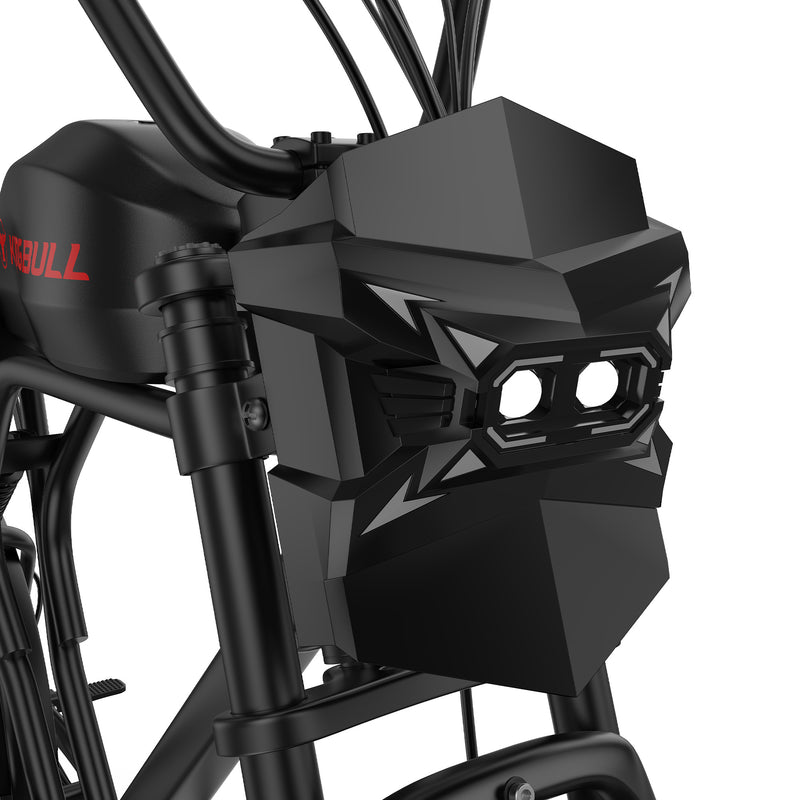

Integrated 48V Led Lights
A bold 48V headlight delivers 30% more brightness, while the brake-responsive taillight boosts visibility and safety.

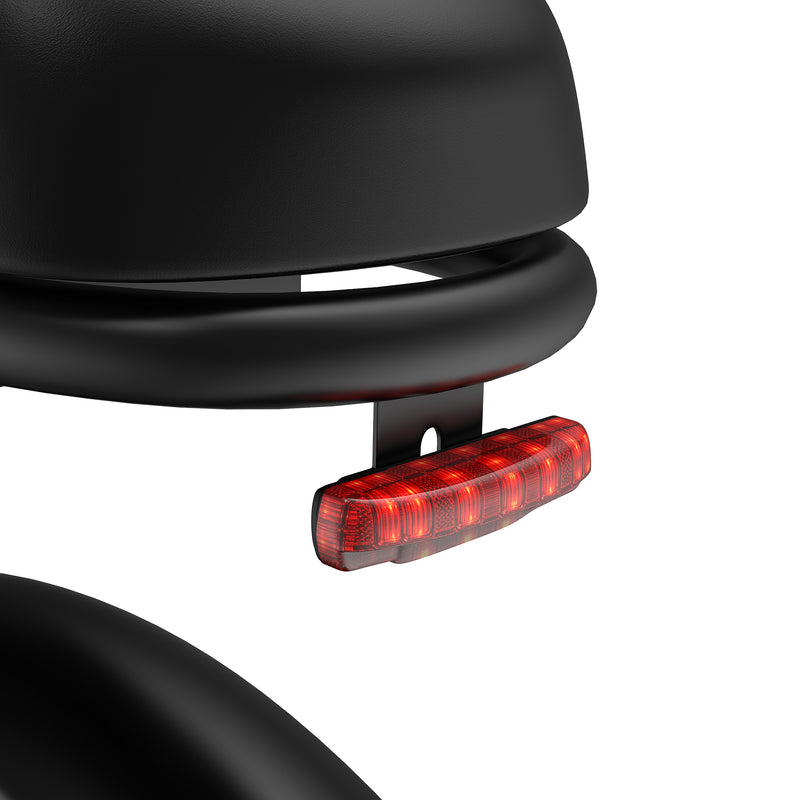

Rear Light & Turn Signals
Integrated rear lighting with brake and turn signals improves visibility and enhances riding safety.
Size & Fit
A —— Total Length: 66.9 in / 170 cm
B —— Total Height: 42.5 in / 108 cm
C —— Seat Height: 31.9 in / 81 cm
D —— Seat Width: 22.0 in / 56 cm
E —— Handlebar Width: 26.8 in / 68 cm
Technical Specifications
Model
Expedition
Max Range
120 Miles (under ideal riding conditions)
Max Speed
28 MPH
Weight
94 lbs
Rider Height
5'1" - 6'5"
Max Payload Capacity
350 lbs
Rear Basket Load Capacity
65 lbs
Mid-Mounted Basket Load Capacity
20 lbs
Frame
20*4.0" Steel Frame with Rear Suspension, equipped with front and rear fenders
Fork
Dual-crown suspension, hydraulic spring, tapered steerer, lockable, 80mm travel
Shock
Aluminum Alloy Body, Black Coil Spring
Rim
Front: 20" Wide Aluminum Alloy Rim, 36H, 85mm Profile, Φ573MM, Rear: 20" Wide Aluminum Alloy Rim, 36H, 85mm Profile
Hub Front
Sealed Bearing, Quick-Release Axle, Steel Construction, Disc Brake Mount
Spoke
High-Strength Steel, 12G/13G, Black Finish, Copper Nipples
Tires
CST 20"*4.0"
Inner Tubes
20"*4.0", Schrader
Recommended Tire Pressure
25–28 PSI
Front Brake
Hydraulic disc brake, power-off brake lever, 2 pistons, 180mm*2.3mm disc, 1100mm oil pipe, black finish
Rear Brake
Hydraulic disc brake, 2 pistons, 180mm*2.3mm disc, 1950mm oil pipe, black finish
Shifter
SHIMANO SL-TX50-7R, right side, 2400mm cable length, 7 speed
Crankset
Square-taper steel crankset with dual chain guard; 9/16" pedal threads
Chain
1/2" × 3/32", 126L
Motor
750W brushless hub motor
Battery
Kingbull 48V/1512Wh(31.5Ah) Lithium Battery
Controller
48V/22A
Display
full color multi-function display display
Charger
US standard 3.0A smart charger
Wiring Harness
Custom Kingbull wiring harness
Sensors
Cadence sensor丨Brake sensor
Pedal Assist
5 Levels
Walk Mode
3 MPH
Throttle
Twist throttle
Light
DH035P-M2 with integrated horn; WD-09, 48V; integrated taillight, brake light, and turn signals
Water Resistant
IPX6
Seat
Black leather; Fixed design, not adjustable
Pedals
9/16" plastic pedals with reflectors
Passenger Footrests
4 mm aluminum folding footrests
Kickstand
Adjustable aluminum alloy; 220–275 mm adjustment range
Fenders
Plastic
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Where to ship from
We have warehouses in both the eastern and western U.S., and will ship from the most suitable location based on your delivery address and inventory availability.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
What is the maximum range of the Kingbull Expedition?
The Kingbull Expedition features a 31.5Ah battery and delivers up to 120 miles per charge under ideal riding conditions. Actual range varies depending on terrain, rider weight, assist level, and riding conditions.
Can I add extra storage to the Kingbull Expedition?
Yes. Optional rear and mid-mounted baskets are available to expand cargo space for groceries, daily essentials, and weekend gear.
What type of terrain is the Kingbull Expedition suitable for?
The Expedition is designed for everyday commuting and recreational riding on paved roads, gravel paths, and other suitable terrain. Its full-suspension design and fat tires help provide a more comfortable ride across changing surfaces.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days. For pre-order products, the delivery time may vary and will depend on the specific shipping schedule for that item. Please refer to the product page for the estimated shipping date.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
What is the recommended tire pressure?
Although the tire sidewall may indicate a maximum pressure of 30 PSI, we recommend maintaining a tire pressure of 25–28 PSI for everyday riding. This range provides better comfort, traction, and helps reduce the risk of tire damage or blowouts.
How does Kingbull ensure a safe riding experience?
The battery system is tested through UL by SGS to help ensure compliance with recognized safety standards and provide reliable performance for everyday rides.
