Home / Ebikes / EX Titan | Premium Full Suspension Electric Mountain Bike

EX Titan | Premium Full Suspension Electric Mountain Bike

Brand New Full Suspension Ebike
$2,099.00 $2,599.00
/
Shipping calculated at checkout.
  • CA Shipping: Within 2 Business Days
Color
  • Extra $200 off Buy 2 Bikes
Quantity
Size & Fit
Size & Fit
A —— Total Length 79.5 in / 202 cm
B —— Total Height 49.2 in / 113 cm
C —— Handlebar Width: 28.5 in / 72.5 cm
D ——Minimum Seat Height 34.7 in / 88 cm
E —— Maximum Seat Height 37.8 in / 96 cm
F —— Minimum upper tube height 29.5 in / 75 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
80 Miles
Max Speed
28MPH
Weight
84 lbs

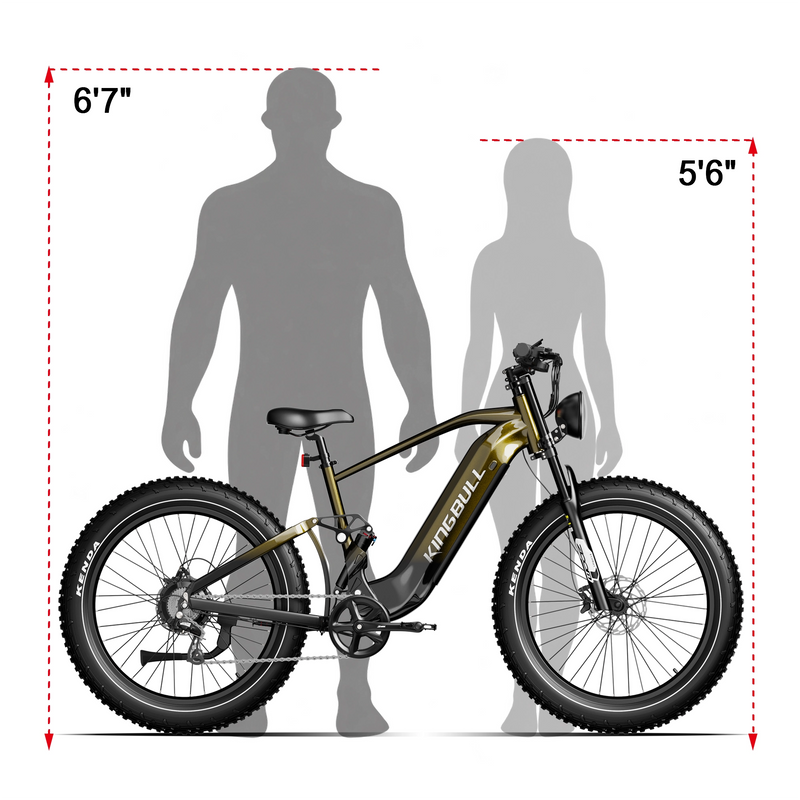

Rider Height
5'6" - 6'7"/ 168 cm - 201 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(Default), Class 2
Frameset
Frame
All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 31.6mm seat tube, 12 mm thru axle, 130 mm travel
Fork
ZOOM 879DH, coil spring, 100mm travel, 1-1/8" threadless straight
Shock
DNM AO-38RC, air spring, hydraulic damping, rebound adjustment, air preload, lockable, 50mm travel
Wheels
Rim
Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 257 MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap
Tires
Kenda K-1188, 26"*4.0", puncture-proof
Inner Tubes
Kenda 26"*4.0", Schrader
Brakes
Front Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 900mm oil pipe
Rear Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2000mm oil pipe
Drivetrain
Shifter
SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed
Rear Derailleur
SHIMANO RD-M310, 8-speed
Cassette
DNP LY-3008CHN, 13-32T, 8 speed
Chain
KMC Z8, 126L, 8 speed
Crankset
PRO-V42P, 1/2"*3/32"*42T*170MM
Chainrings
42T
E-system
Motor
BAFANG G062 750W brushless hub motor
Battery
SAMSUNG 48V/960Wh(20Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 31.6*200mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
$2,099.00
$2,599.00

Core At A Glance

motor icon
Motor

BAFANG 750W Brushless Hub Motor

Battery charging icon
Battery

20Ah (960Wh) Samsung Battery

Top Speed
Top Speed

28MPH

Max Range icon
Max Range

Up to 80 Miles

Sensor icon
Sensor

Torque Sensor丨Brake Sensor

Brakes icon
Brakes

Hydraulic Brakes

750W Brushless Geared Hub Motor
The newly upgraded Bafang (GD) 750W brushless geared hub motor delivers powerful performance and torque of up to 80Nm, making it easy to handle rough terrain and 35° slopes, even under heavy load. Advanced brushless technology improves energy efficiency and reduces maintenance, while upgraded gearing improves performance and extends motor life. This perfect blend of power, durability and efficiency makes it ideal for off-road adventures.
Kingbull EX Titan four-bar linkage suspension frame close-up
Four-Bar Linkage Suspension and Full Suspension Systems
Crafted around a true four-bar linkage system, this frame delivers elite-level suspension performance—minimizing pedal and brake interference for unmatched stability and control. With 100mm of front suspension travel and 130mm in the rear, it's built to soak up big hits and keep you in command. Designed for aggressive terrain, it ensures confident handling, consistent traction, and a ride that stays composed no matter the challenge.
Samsung cell battery on EX Titan electric mountain bike Samsung cell battery on EX Titan electric mountain bike
Samsung Battery

Fueled by Samsung’s powerful 48V 960Wh lithium battery, the EX Titan delivers relentless energy and an impressive range built for the wild. Engineered for extreme durability and intelligent power control, it’s the heart of your off-road freedom—no limits, no compromises.

960Wh
Battery Capacity
80 Miles
Max Range
Shimano 8-speed gear system – Kingbull EX Titan drivetrain Shimano 8-speed gear system – Kingbull EX Titan drivetrain
SHIMANO 8-Speed Precision

When the trail gets tough, your drivetrain won’t back down. Equipped with a SHIMANO 8-speed shifter and a rugged rear derailleur, this bike delivers crisp, high-performance shifting across any terrain. The wide-range DNP cassette (13–32T) ensures the perfect gearing flexibility to conquer steep climbs and maintain control on fast descents. Built to push limits, engineered for control—no matter where you ride.

Frame-integrated battery design – Kingbull EX Titan electric bike Frame-integrated battery design – Kingbull EX Titan electric bike
Design Meets Safety

The battery is seamlessly integrated into the frame for a sleek, streamlined look and enhanced protection. Hidden from external elements, it stays safer, cleaner, and more durable. With dual locking mechanisms for added security, the battery is well-protected against theft and tampering. The aluminum alloy casing ensures efficient heat dissipation and, together with the frame tube, provides double-layer protection—making it more fire-resistant and explosion-proof. Smart. Safe. Beautiful.

Features & Highlights

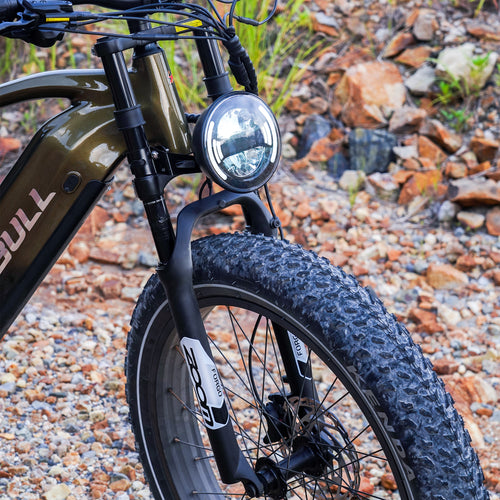

suspension fork – Kingbull EX Titan e-bike
Front Fork Suspension
The ZOOM front fork combines a precision coil spring with 100mm of travel suspension, providing exceptional shock absorption for a smooth, responsive ride on any terrain.

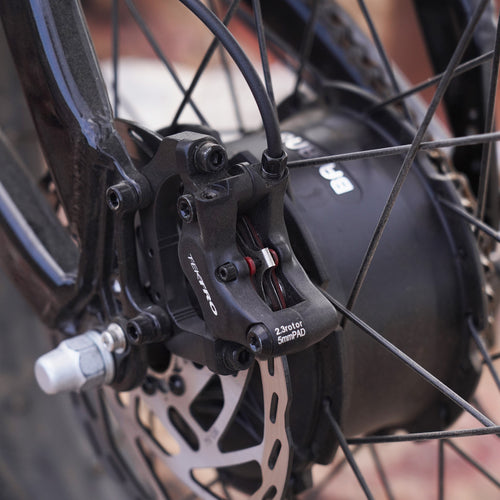

EX Titan Tektro hydraulic disc brakes for off-road safety
Tektro 4-Piston Hydraulic Brakes
4-piston hydraulic brakes offer powerful, balanced stopping with quick response and smooth control—even on fast rides or steep descents.

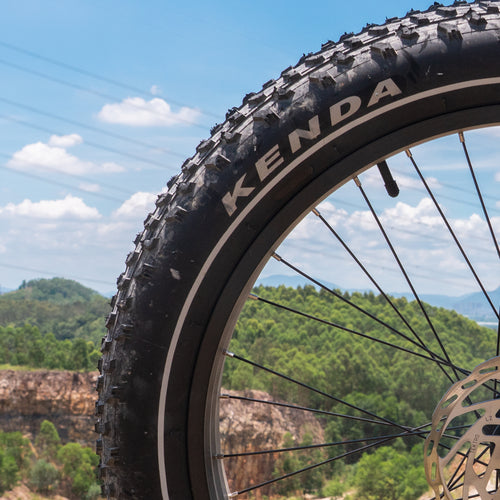

Kingbull EX Titan all terrain tires
26"X4.0" Kenda Tires
Anti-slip, puncture-resistant tires handle extreme conditions, while their width reduces bumps and enhances safety.

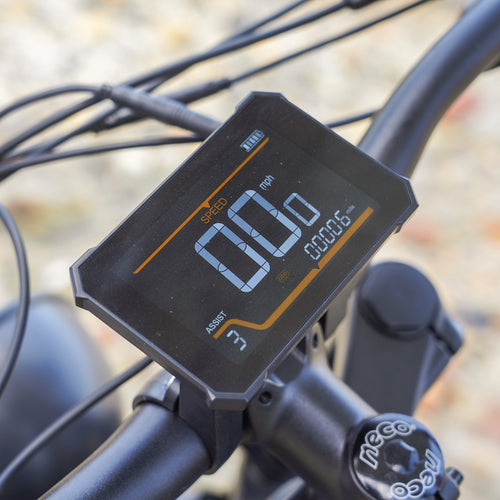

Smart display – EX Titan controls
LED Display
The handlebar features race-inspired controls and a dynamic LED display, with ergonomic grips for a secure, responsive ride—whether you're pushing limits or cruising with ease.
Comfort seat with airflow design – Kingbull EX Titan
Breathable Sport Saddle
Adjustable design with upgraded breathable holes enhances comfort, letting you conquer mountains and long rides with ease!
Bright LED headlight for night riding – Kingbull EX Titan
Integrated 48V LED Lights
Kingbull 48V headlights are powerful, enhancing visibility and night riding safety.
Size & Fit
A —— Total Length 79.5 in / 202 cm
B —— Total Height 49.2 in / 113 cm
C —— Handlebar Width: 28.5 in / 72.5 cm
D ——Minimum Seat Height 34.7 in / 88 cm
E —— Maximum Seat Height 37.8 in / 96 cm
F —— Minimum upper tube height 29.5 in / 75 cm
Technical Specifications
Max Range
80 Miles
Max Speed
28MPH
Weight
84 lbs
Rider Height
5'6" - 6'7"/ 168 cm - 201 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(Default), Class 2
Frame
All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 31.6mm seat tube, 12 mm thru axle, 130 mm travel
Fork
ZOOM 879DH, coil spring, 100mm travel, 1-1/8" threadless straight
Shock
DNM AO-38RC, air spring, hydraulic damping, rebound adjustment, air preload, lockable, 50mm travel
Rim
Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 257 MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap
Tires
Kenda K-1188, 26"*4.0", puncture-proof
Inner Tubes
Kenda 26"*4.0", Schrader
Front Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 900mm oil pipe
Rear Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2000mm oil pipe
Shifter
SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed
Rear Derailleur
SHIMANO RD-M310, 8-speed
Cassette
DNP LY-3008CHN, 13-32T, 8 speed
Chain
KMC Z8, 126L, 8 speed
Crankset
PRO-V42P, 1/2"*3/32"*42T*170MM
Chainrings
42T
Motor
BAFANG G062 750W brushless hub motor
Battery
SAMSUNG 48V/960Wh(20Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 31.6*200mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Can I cancel for free after placing an order?
You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
How to Unlock Your Ebike’s Top Speed?
You can change your e-bike's maximum speed in the screen menu P08.
