Trekker | Premium Step-Through Electric City Bike

2025 Premium Long Range Cite Electric Bike
$1,899.00
/
Shipping calculated at checkout.
  • CA Shipping: Within 2 Business Days
color
Quantity
Size & Fit
Size & Fit
A —— Total Length 70 in / 178 cm
B —— Handlebar Height 45 in / 114 cm
C —— Minimum Seat Height 33.5 in / 85 cm
D —— Maximum Seat Height 36.6 in / 93 cm
E —— Rear Rack Height 25.2 in / 64 cm
F —— Handlebar Width: 29.3 in / 74.5 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
80 Miles
Max Speed
20 MPH (default), adjustable 5–28 MPH; Throttle only max speed: 20 MPH
Weight
79 lbs
Rider Height
5'2" - 6'6"/ 157 cm - 198 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 2(Default), Class 3
Frameset
Frame
All aluminum, removable integrated battery, tapered head tube, guided internal routing, 30.4mm seat tube, 12 mm thru axle
Fork
ZOOM 879, coil spring, adjustable damping, lockable, 80mm travel, 1-1/8" threadless straight
Wheels
Rim
Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 257MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap
Tires
Kenda K-1188, 26"*4.0", puncture-proof
Inner Tubes
Kenda 26"*4.0", Schrader
Brakes
Front Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 850mm oil pipe
Rear Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2000mm oil pipe
Drivetrain
Shifter
SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed
Rear Derailleur
SHIMANO RD-M310, 8-speed
Cassette
DNP LY-3008CHN, 13-32T, 8 speed
Chain
KMC Z8, 114L, 8 speed
Crankset
PRO-V42P, 1/2"*3/32"*42T*170MM
Chainrings
42T
E-system
Motor
BAFANG G062 750W brushless hub motor
Battery
SAMSUNG 48V/960Wh(20Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 30.4*350mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
$1,899.00

Core At A Glance

Motor

BAFANG 750W brushless hub motor

Battery

20Ah (960Wh) Samsung Battery

Top Speed

28MPH(Throttle only max speed 20MPH)

Max Range

Up to 80 Miles

Sensor

torque sensor丨Brake sensor

Brakes

Hydraulic Brakes

BAFANG 750W Brushless Hub Motor
Power, Performance, and Longevity
Unlock a whole new level of e-bike performance with the Bafang 750W Brushless Hub Motor. Known for its robust design and advanced technology, this motor combines high power output with exceptional durability, ensuring a smooth, quiet, and long-lasting ride for any adventure.
Samsung Battery

Designed for adventure, the Trekker is equipped with Samsung's state-of-the-art 48V 960Wh battery, delivering exceptional range, smart energy efficiency, and consistent performance across any terrain. Whether you're exploring off-road trails or cruising through the city, Trekker provides the reliable power you need to go the distance.

960Wh
Battery Capacity
80 Miles
Max Range
Tektro 4-Piston Hydraulic Brakes

Equipped with a 4-piston hydraulic braking system, this advanced setup ensures superior stopping power and precise control. Dual-sided calipers apply even pressure for smooth, responsive braking—perfect for high-speed rides and extended descents.

SHIMANO 8-Speed
From crowded intersections to rolling urban roads, your drivetrain should respond instantly.Equipped with a SHIMANO 8-speed shifter and a durable rear derailleur, this bike delivers smooth, precise gear changes to match the pace of city life. The wide-range DNP cassette (13–32T) provides the versatility you need for effortless starts, steady cruising, and confident hill climbs.

Features & Highlights

Front Fork Suspension
80mm travel suspension, absorbs bumps on the road, provides top-notch shock absorption, ensuring a smooth and enjoyable ride.
Torque Sensor
The advanced torque sensor instantly responds to your pedaling, delivering smooth, natural motor assist. Enjoy easier starts, effortless hill climbs, and longer battery life.
26"X4.0" Kenda Tires
5 levels of pedal assist allow you to tailor the support, offering just the right balance of power for your ride.

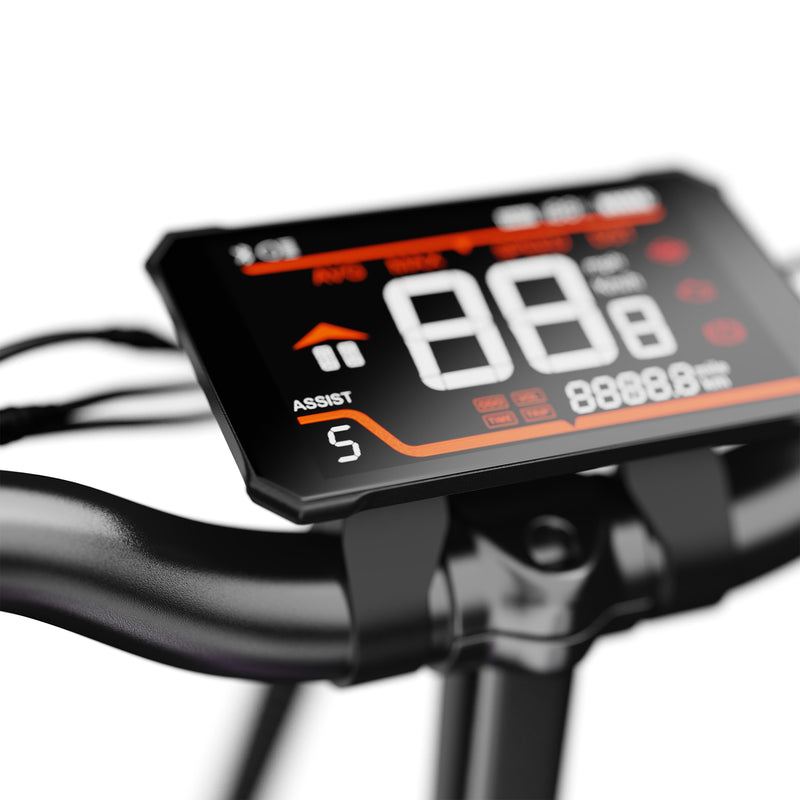

LED Display
The handlebar is designed for a smooth, premium ride, with built-in controls, a clear LED display, and ergonomic grips for comfort and control.
Pedal Assist
5 levels of pedal assist offer as much or as little help as you want.

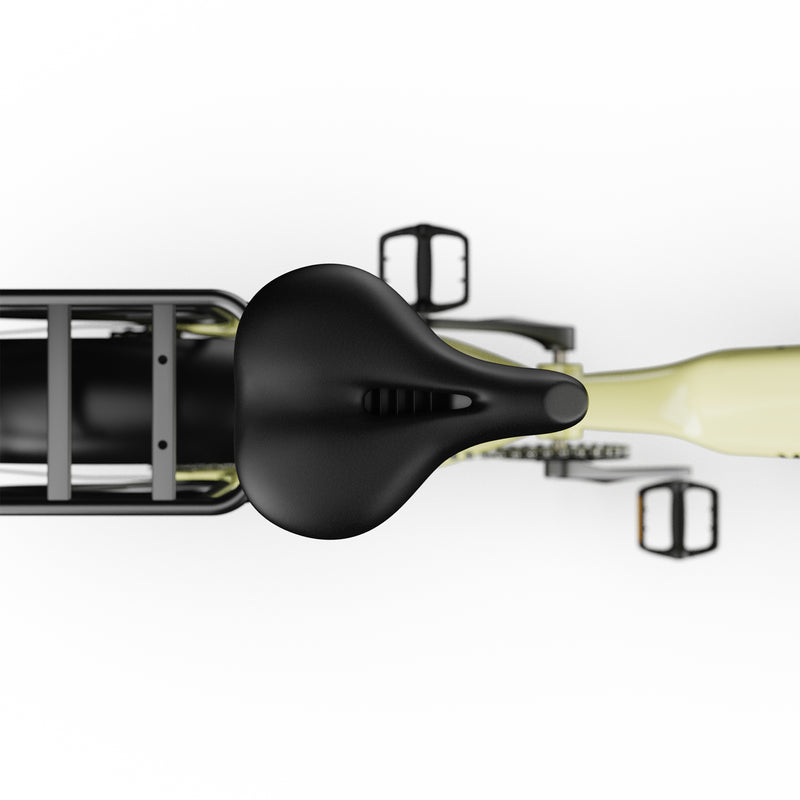

Comfortable Seats
Adjustable design with upgraded breathable holes enhances comfort, letting you conquer mountains and long rides with ease.
Upgraded Rear Rack
Crafted from high-strength aluminum, our rear rack outperforms the typical steel racks found on the market. It supports up to 150 lbs, offering exceptional durability, superior load capacity, and a sleek, rust-resistant finish.

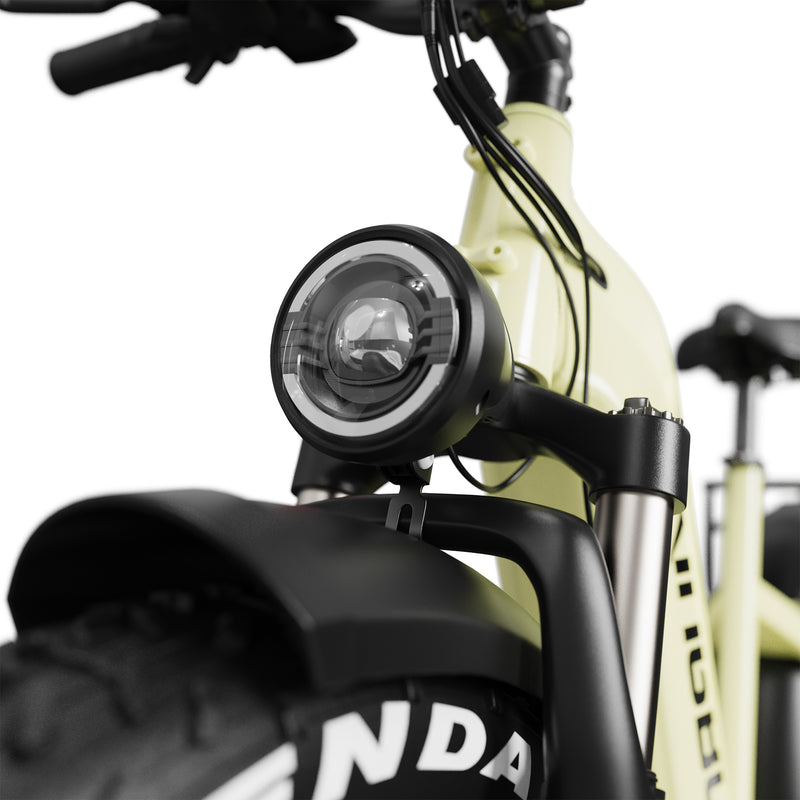

Integrated 48V LED Lights
Kingbull 48V headlights are powerful, enhancing visibility and night riding safety.
Size & Fit
A —— Total Length 70 in / 178 cm
B —— Handlebar Height 45 in / 114 cm
C —— Minimum Seat Height 33.5 in / 85 cm
D —— Maximum Seat Height 36.6 in / 93 cm
E —— Rear Rack Height 25.2 in / 64 cm
F —— Handlebar Width: 29.3 in / 74.5 cm
Technical Specifications
Max Range
80 Miles
Max Speed
20 MPH (default), adjustable 5–28 MPH; Throttle only max speed: 20 MPH
Weight
79 lbs
Rider Height
5'2" - 6'6"/ 157 cm - 198 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 2(Default), Class 3
Frame
All aluminum, removable integrated battery, tapered head tube, guided internal routing, 30.4mm seat tube, 12 mm thru axle
Fork
ZOOM 879, coil spring, adjustable damping, lockable, 80mm travel, 1-1/8" threadless straight
Rim
Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 257MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap
Tires
Kenda K-1188, 26"*4.0", puncture-proof
Inner Tubes
Kenda 26"*4.0", Schrader
Front Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 850mm oil pipe
Rear Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2000mm oil pipe
Shifter
SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed
Rear Derailleur
SHIMANO RD-M310, 8-speed
Cassette
DNP LY-3008CHN, 13-32T, 8 speed
Chain
KMC Z8, 114L, 8 speed
Crankset
PRO-V42P, 1/2"*3/32"*42T*170MM
Chainrings
42T
Motor
BAFANG G062 750W brushless hub motor
Battery
SAMSUNG 48V/960Wh(20Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 30.4*350mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Can I cancel for free after placing an order?
You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
How to Unlock Your Ebike’s Top Speed?
You can change your e-bike's maximum speed in the screen menu P08.
