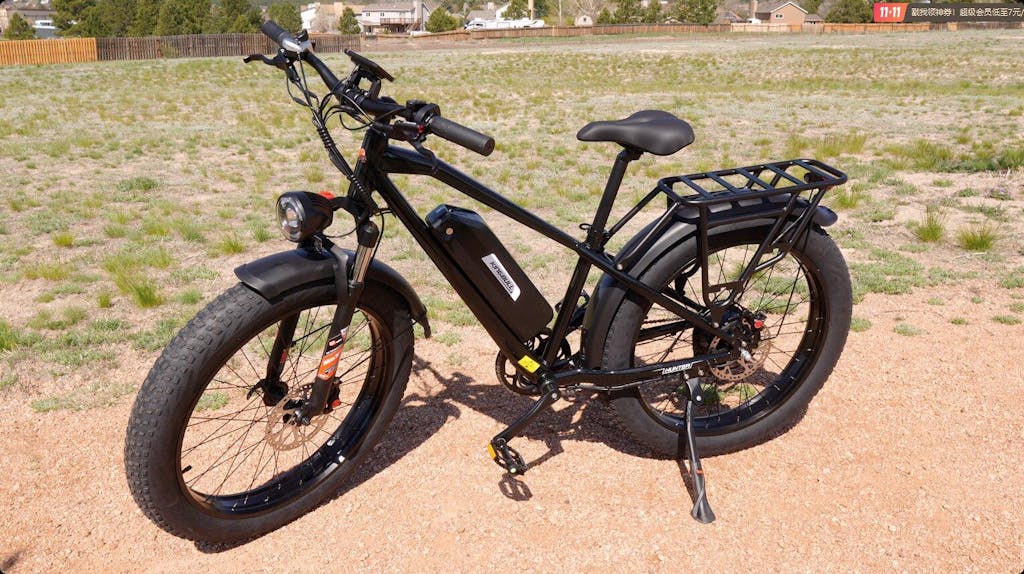

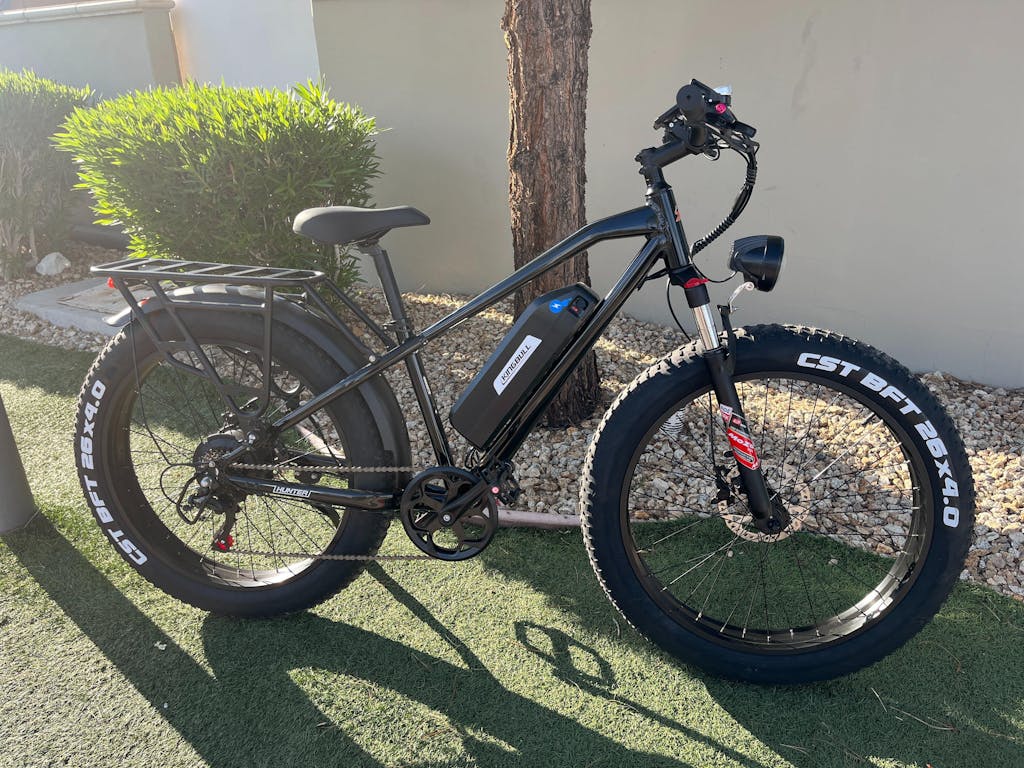

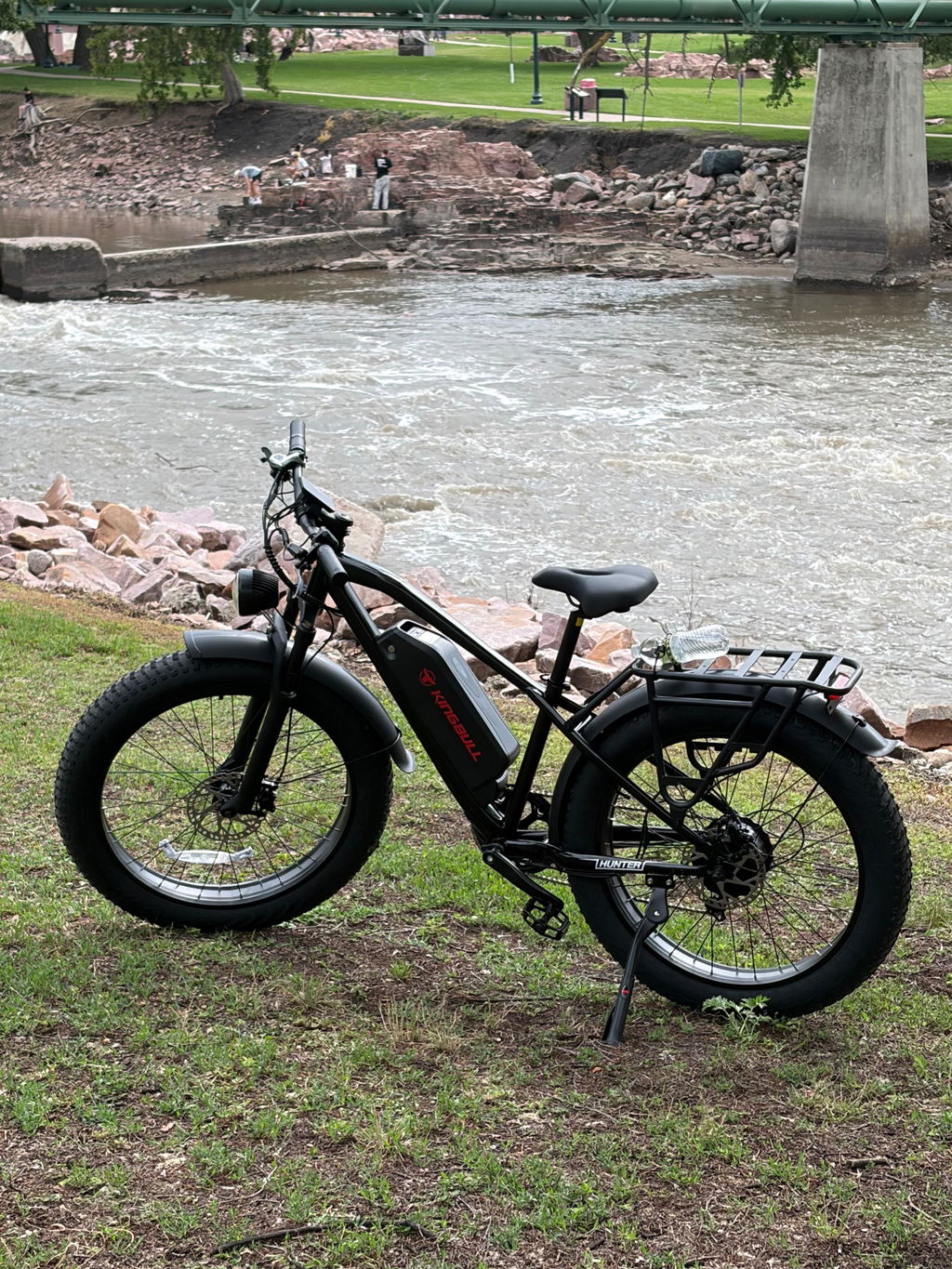

Kingbull Hunter 2.0 | Mountain Fat Tire Electric Bike
Upgrade Your Adventure With Hunter 2.0
131 reviews
- CA Shipping: Within 2 Business Days
Quantity
Size & Fit
Size & Fit

A —— Total Length: 74.4 in / 189 cm
B —— Total Height: 43.7 in / 111 cm
C —— Maximum Seat Height: 39.4 in / 100 cm
D —— Minimum Seat Height: 32.3 in / 82 cm
E —— Rear Rack Height : 31 in / 79 cm
F —— Standover Height: 31.1 in / 79 cm
G —— Handlebar width: 31.1 in / 79 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
55 Miles
Max Speed
28PH/Throttle only max speed 20MPH
Weight
70 lbs
Rider Height
5'3" - 6'6"
Max Payload Capacity
400 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(Default), Class 2
Frameset
Frame
All-aluminum frame, internal wiring, 30.4mm seat tube, equipped with rear rack, equipped with front and rear fenders
Fork

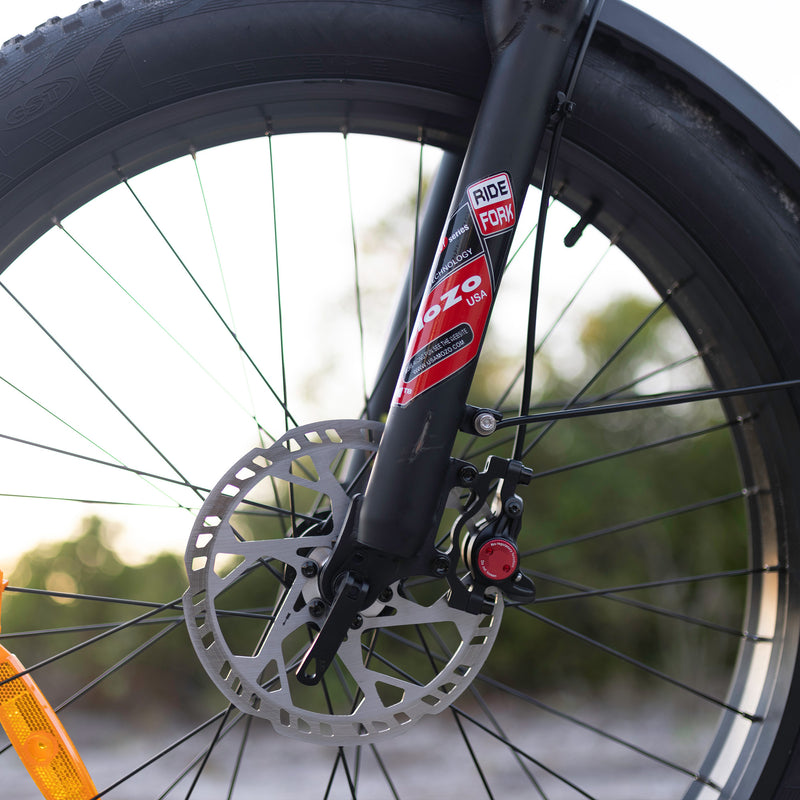

MOZO FTA-40-ML, 26", hydraulic spring, tapered steerer, lockable, 80mm travel
Wheels
Rim
Front YS-M80B, aluminum alloy, 26"*13G*36H, H:18MM, Φ573-Φ574MM, Rear YS-M80B, aluminum alloy, 26"*12G*36H, H:18MM, Φ573-Φ574MM
Hub Front
MY-612FQB, aluminum alloy, M9*13G*36H*135, double bearing, PCD:58MM, 145mm quick release
Spoke
45#, 13G, 260MM, 14mm copper spoke cap, 45#, 12G, 205MM, 14mm copper spoke cap, 45#, 12G, 206MM, 14mm copper spoke cap
Tires
CST C-1752 26"*4.0"
Inner Tubes
CST 26"*4.0", Schrader
Brakes
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 900mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1800mm oil pipe
Drivetrain
Shifter

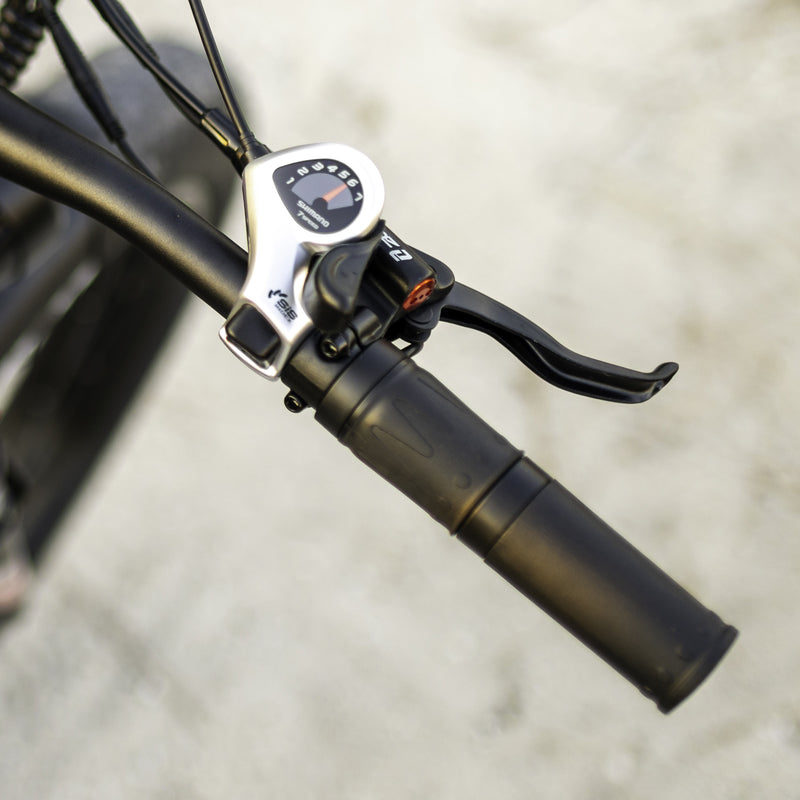

SHIMANO SL-TX50-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-TZ500GSD, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7, 118L, 7 speed
Crankset
HDL-L145, Forged aluminum alloy, 170 mm
Chainrings
48T
E-system
Motor

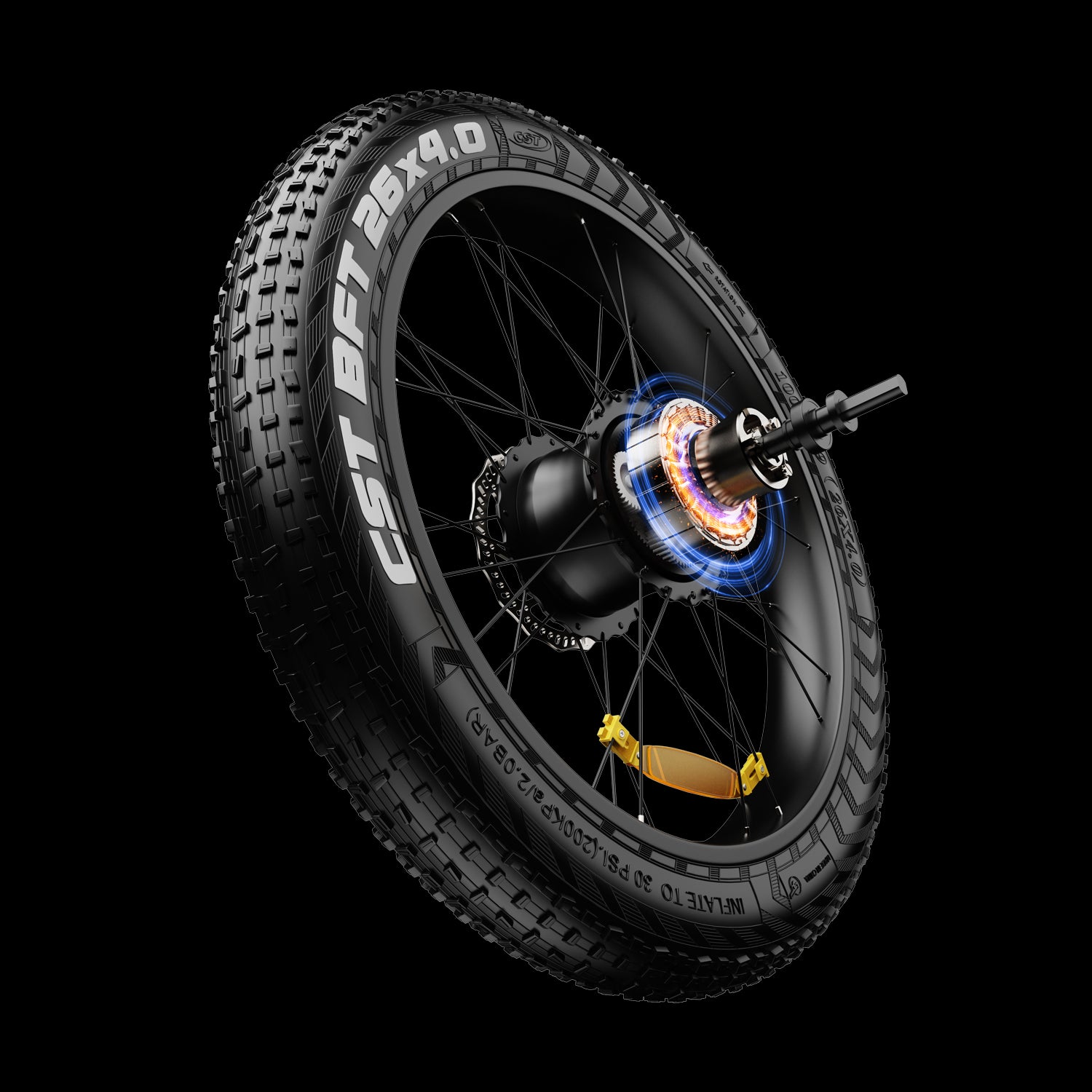

Bafang (GD) 750W brushless hub motor
Battery
Kingbull 48V/720Wh(15Ah) Lithium Battery
Controller
48V/22A
Display
KB35H custom color display
Charger
US standard 2.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
Cadence sensor丨Brake sensor
Throttle
Twist throttle
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle

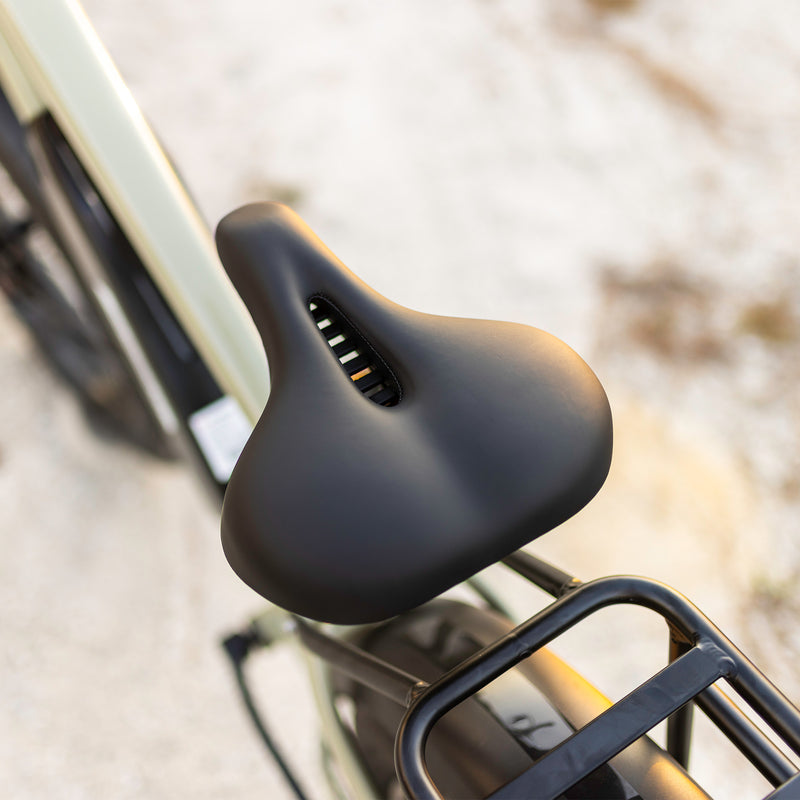

JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 30.4*350mm, with scale lines
Handlebar
HB703, aluminum alloy, 22.2*31.8*2.4T*660MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:90MM, 7°
Grips
Rubber, length 120mm
Pedals
Aluminum Alloy
Fenders
Plastic
