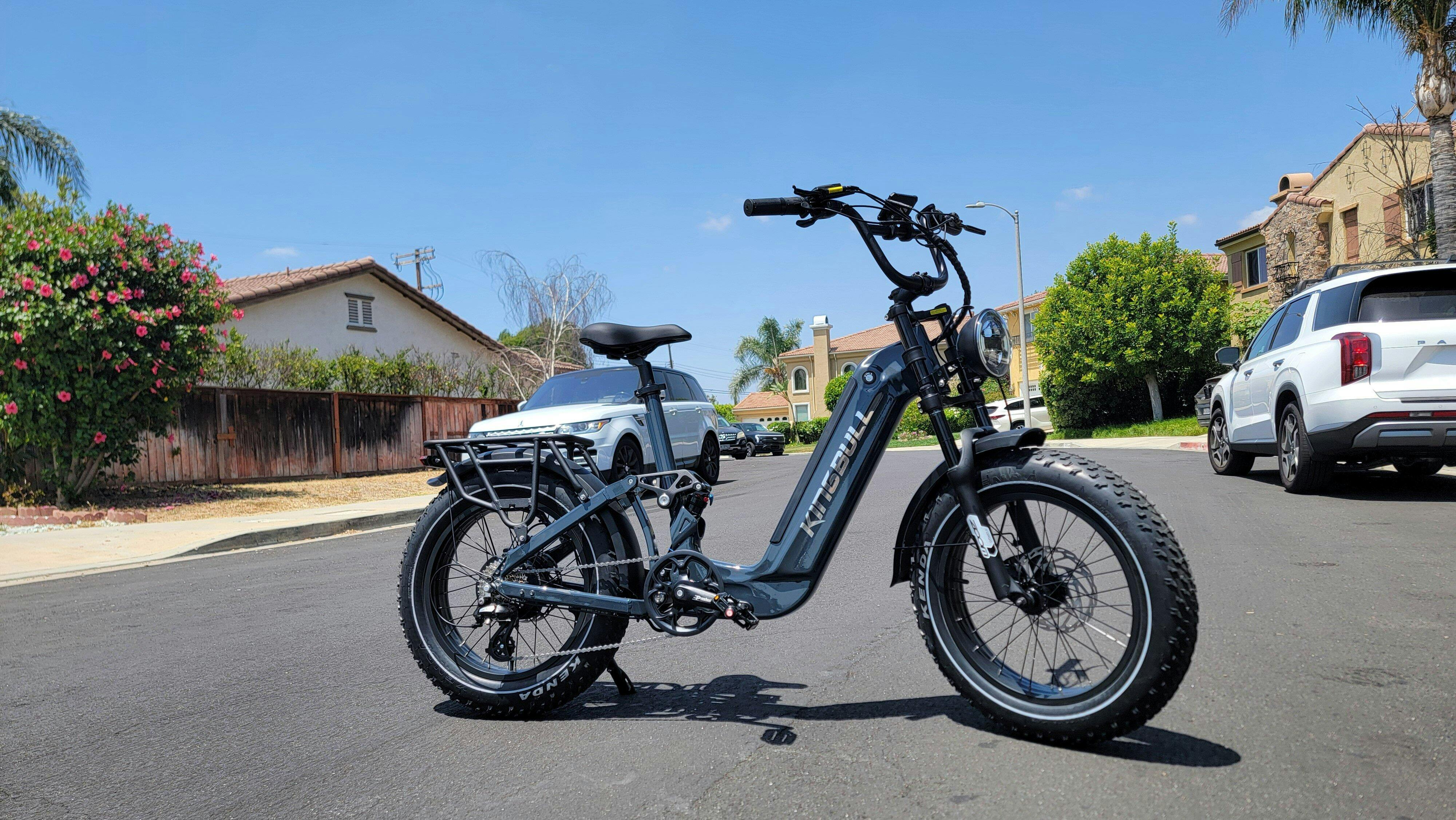

Jumper Go | 20" Full Suspension All Terrain Electric Bike
Kingbull Jumper Go electric mountain bike
Kingbull Jumper Go electric mountain bike
Kingbull Jumper Go electric mountain bike
Kingbull Jumper Go electric mountain bike
Kingbull Jumper Go electric mountain bike
Jumper Go | 20" Full Suspension All Terrain Electric Bike
2-Year Warranty
Free Shipping
15-Day Return
No Tax
20,000+ Riders
Pass Test
Home / Ebikes / Jumper Go | 20" Full Suspension All Terrain Electric Bike

Jumper Go | 20" Full Suspension All Terrain Electric Bike

New 20" Full Suspension Electric Bike
$1,999.00 $2,499.00
/
Shipping calculated at checkout.
  • CA Shipping: Within 2 Business Days
Color
  • Extra $200 off Buy 2 Bikes
Quantity
Size & Fit
Size & Fit
A —— Total Length 70 in / 178 cm
B —— Handlebar Height 45 in / 114 cm
C —— Minimum Seat Height 33.5 in / 85 cm
D —— Maximum Seat Height 36.6 in / 93 cm
E —— Rear Rack Height 25.2 in / 64 cm
F —— Handlebar Width: 29.3 in / 74.5 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
80 Miles
Max Speed
28MPH / Throttle only max speed 20MPH
Weight
81 lbs
Rider Height
5'3" - 6'7" / 160 cm - 201 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(Default), Class 2
Frameset
Frame
All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 31.6mm seat tube, 12 mm thru axle, 50 mm travel
Fork
ZOOM 879DH, coil spring, 100mm travel, 1-1/8" threadless straight
Shock
DNM AO-38RC, air spring, hydraulic damping, rebound adjustment, air preload, lockable, 50mm travel
Wheels
Rim
JP73, aluminum alloy, 20"*13G*36H, H:18MM, Φ420MM, JP73, aluminum alloy, 20"*12G*36H, H:18MM, Φ420MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 173MM, 14mm copper spoke cap, 45#, 12G, 128MM, 14mm copper spoke cap, 45#, 12G, 127MM, 14mm copper spoke cap
Tires
Kenda K-1188, 20"*4.0", puncture-proof
Inner Tubes
Kenda 20"*4.0", Schrader
Brakes
Front Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 1050mm oil pipe
Rear Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2100mm oil pipe
Drivetrain
Shifter
SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed
Rear Derailleur
SHIMANO RD-M310, 8-speed
Cassette
DNP LY-3008CHN, 13-32T, 8 speed
Chain
KMC Z8, 114L, 8 speed
Crankset
PRO-R42P, 1/2"*3/32"*42T*152MM
Chainrings
42T
E-system
Motor
BAFANG G063 750W brushless hub motor
Battery
SAMSUNG 48V/960Wh(20Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 31.6*200mm, with scale lines
Handlebar
HB820, aluminum alloy, 22.2*31.8*2.2T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
$1,999.00
$2,499.00

Core At A Glance

Motor

BAFANG 750W Brushless Hub Motor

Battery

20Ah (960Wh) Samsung Battery

Top Speed

28MPH(Throttle only max speed 20MPH)

Max Range

Up to 80 Miles

Sensor

Torque Sensor丨Brake Sensor

Brakes

Hydraulic Brakes

Leisure ride with Kingbull Jumper Go fat tire e-bike
Your Chill Ride Starts Here.
KIingbull Jumper Go full suspension e-bike in wooded
Nature’s Calling. Jumper Go Answers.
KingBul Jumper Go e-bike riding through forest trail
Crossing the forest trail with jumper go.
Concealed battery design-Kingbull Jumper Go full suspension e-bike
Kingbull Jumper Go featuring Samsung 48V battery
Secure, Worry-Free.
Unique Design
Ride Further, Worry Less
Samsung Battery
Our battery is seamlessly integrated into the frame for a sleek look and enhanced safety. The enclosed design offers superior water resistance, while the dual-lock mechanism keeps your battery firmly secured against theft or vibration.
With Samsung’s reliable 48V 960Wh battery, enjoy up to 80 miles of worry-free riding—even on off-road adventures. No more range anxiety—just power, comfort, and peace of mind.
Off-road riding scene – Kingbull Jumper Go full suspension e-bike
Kingbull Jumper Go full suspension frame and rear spring
Off-Road Made Easy
Full Suspension System
Forget the tall, hard-to-mount mountain bike frames. This step-through design, paired with a smart linkage suspension, offers a more stable, smoother, and more enjoyable ride—so everyone can experience the thrill of off-road adventures.
Equipped with Zoom front suspension (100mm travel) and DNM rear shock (50mm travel), this bike delivers excellent comfort and control on rugged terrain, making every off-road ride smoother and more enjoyable.
Tektro 4-piston hydraulic brake detail – Kingbull Jumper Go electric mountain bike
Kingbull Jumper Go full suspension e-bike in forest setting
Tektro 4-Piston Hydraulic Brakes
Up to 28 MPH, Your Way
Featuring a 4-piston hydraulic system, this setup delivers stronger and more balanced braking. Dual-side pistons apply even pressure on the rotor, resulting in faster response, smoother control, and reliable stopping power—even during high-speed rides or long descents.
Switch between 2 or 3 speed levels to match your comfort and riding style. Go fast, ride safe—your speed, your choice.

Features & Highlights

Bafang 750W motor close-up – Kingbull Jumper Go electric mountain bike
750W BAFANG Motor
The powerful 750W Bafang (GD) brushless hub motor delivers 80Nm of torque for conquering rough trails and 35° climbs.
Shimano 8-speed shifting system – kingbull-Jumper Go fat tire off-road e-bike
Shimano 8 Speed
Experience smooth and effortless shifting with 8 precision gears, allowing seamless transitions across all terrains.
Zoom front suspension fork detail – kingbull Jumper Go electric mountain bike
Front Fork Suspension
The ZOOM front fork combines a precision coil spring with 100mm of travel suspension, providing exceptional shock absorption for a smooth, responsive ride on any terrain.
Kenda all-terrain tire detail – kingbull Jumper Go off-road e-bike
20"X4.0" Kenda Tires
Anti-slip, puncture-resistant tires handle extreme conditions, while their width reduces bumps and enhances safety.
5-level pedal assist system – Kingbull Jumper Go e-bike control
Pedal Assist
5 levels of pedal assist offer as much or as little help as you want.
Breathable saddle close-up –Kingbull Jumper Go electric mountain bike
Breathable Sport Saddle
Adjustable design with upgraded breathable holes enhances comfort, letting you conquer mountains and long rides with ease!.
Rear cargo rack detail – Kingbull Jumper Go all-terrain electric bike
All-aluminum Rear Frame
Designed with a rear cargo rack to effortlessly carry your essentials—making every ride more practical and convenient.
Jumper Go LCD display close-up – Kingbull electric mountain bike
LED Display
Dynamic LED Display - An intuitive interface with racing style that keeps you completely connected to your ride. With at-a-glance real-time metrics, you can keep tabs on your speed, battery life and more.
Front light detail for night rides – Kingbull Jumper Go
Integrated 48V LED Lights
Kingbull 48V headlights are powerful, enhancing visibility and night riding safety.

Rider Review

20" Full Suspension Electric Bike! #Kingbull Jumper Go Review
Maximum Charge
NEW 20' Full Suspension Ebike! Kingbull Jumper Go Review
E Rides
Kingbull Jumper Go REVEW! 20 inch Full Suspension Ebike.
Brandon Wagstaff
Electric Bike SHOCKER! Kingbull Jumper GO 20' full suspension electric bike Takes on Tough Terrain!
Mike Rochester
I Tried the Kingbull Jumper Go - 20" Full Suspension Electric Bike That Blew My Mind!
Fire and Ice Outdoor Gear
Size & Fit
A —— Total Length 70 in / 178 cm
B —— Handlebar Height 45 in / 114 cm
C —— Minimum Seat Height 33.5 in / 85 cm
D —— Maximum Seat Height 36.6 in / 93 cm
E —— Rear Rack Height 25.2 in / 64 cm
F —— Handlebar Width: 29.3 in / 74.5 cm
Technical Specifications
Max Range
80 Miles
Max Speed
28MPH / Throttle only max speed 20MPH
Weight
81 lbs
Rider Height
5'3" - 6'7" / 160 cm - 201 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(Default), Class 2
Frame
All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 31.6mm seat tube, 12 mm thru axle, 50 mm travel
Fork
ZOOM 879DH, coil spring, 100mm travel, 1-1/8" threadless straight
Shock
DNM AO-38RC, air spring, hydraulic damping, rebound adjustment, air preload, lockable, 50mm travel
Rim
JP73, aluminum alloy, 20"*13G*36H, H:18MM, Φ420MM, JP73, aluminum alloy, 20"*12G*36H, H:18MM, Φ420MM
Hub Front
MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM
Spoke
45#, 13G, 173MM, 14mm copper spoke cap, 45#, 12G, 128MM, 14mm copper spoke cap, 45#, 12G, 127MM, 14mm copper spoke cap
Tires
Kenda K-1188, 20"*4.0", puncture-proof
Inner Tubes
Kenda 20"*4.0", Schrader
Front Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 1050mm oil pipe
Rear Brake
Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2100mm oil pipe
Shifter
SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed
Rear Derailleur
SHIMANO RD-M310, 8-speed
Cassette
DNP LY-3008CHN, 13-32T, 8 speed
Chain
KMC Z8, 114L, 8 speed
Crankset
PRO-R42P, 1/2"*3/32"*42T*152MM
Chainrings
42T
Motor
BAFANG G063 750W brushless hub motor
Battery
SAMSUNG 48V/960Wh(20Ah) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
FT158X, twist throttle, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Saddle
JT5734, Eco-leather, aluminum alloy rails
Seatpost
SP-601, aluminum alloy, 31.6*200mm, with scale lines
Handlebar
HB820, aluminum alloy, 22.2*31.8*2.2T*700MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
HT420 rubber, length 120mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Can I cancel for free after placing an order?
You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
How to Unlock Your Ebike’s Top Speed?
You can change your e-bike's maximum speed in the screen menu P08.
