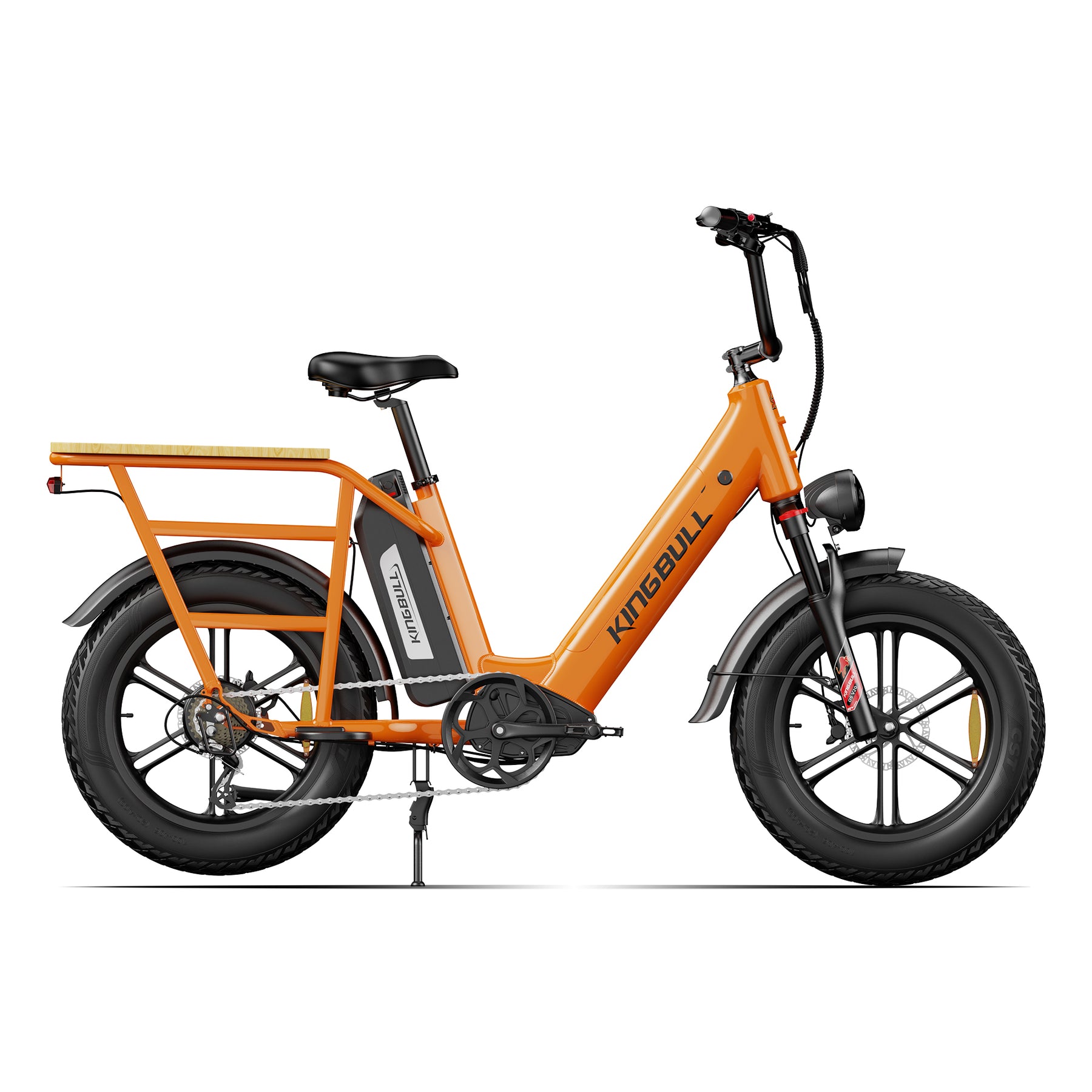

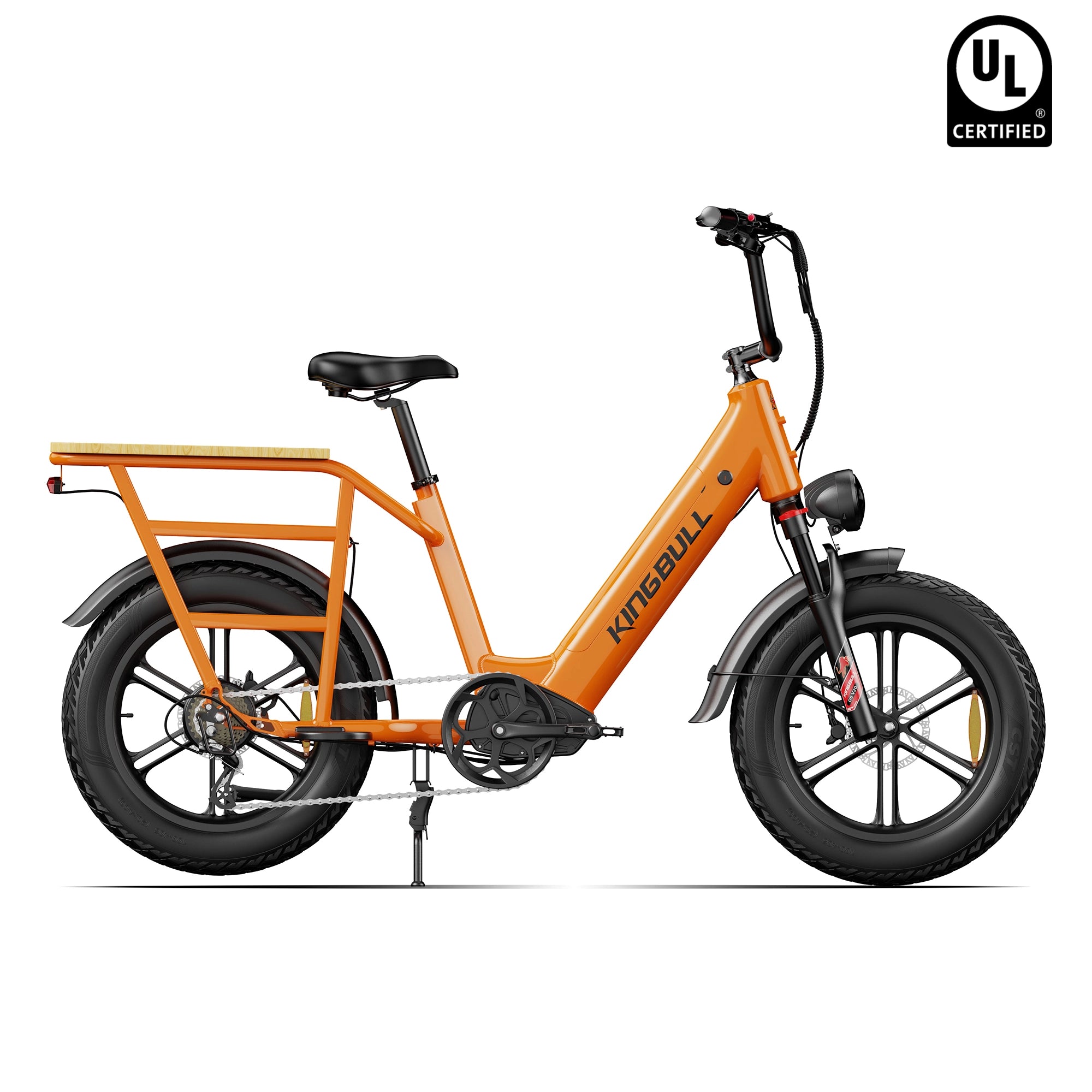

Orange KINGBULL dual battery Voyager 2.0 electric bike side view with front and rear cargo racks and fat tire design

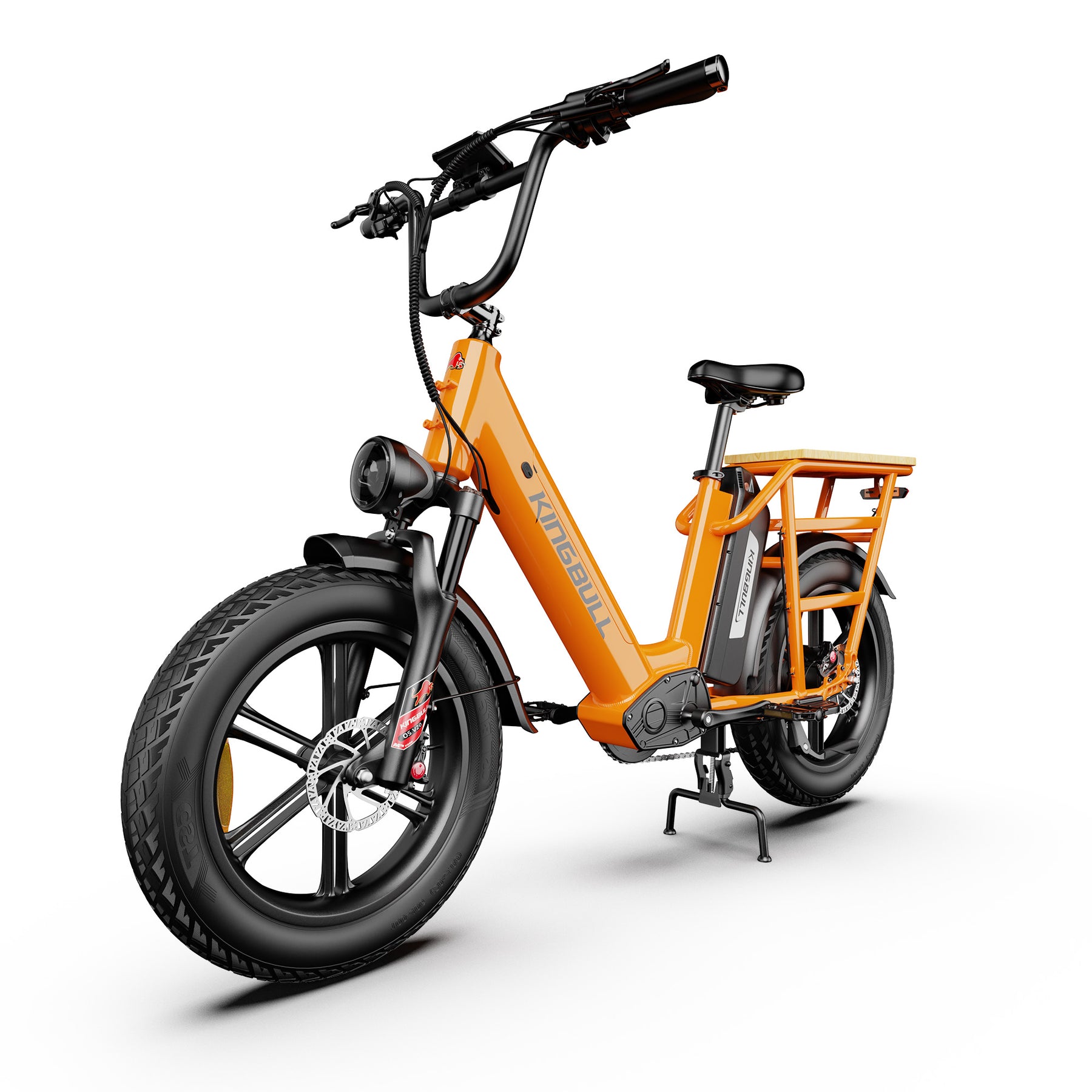

Orange KINGBULL dual battery Voyager 2.0 electric bike front angle view showing handlebars, headlight and overall design
Orange Kingbull Dual Battery Voyager 2.0 electric bike rear angle view highlighting rear cargo rack and frame structure

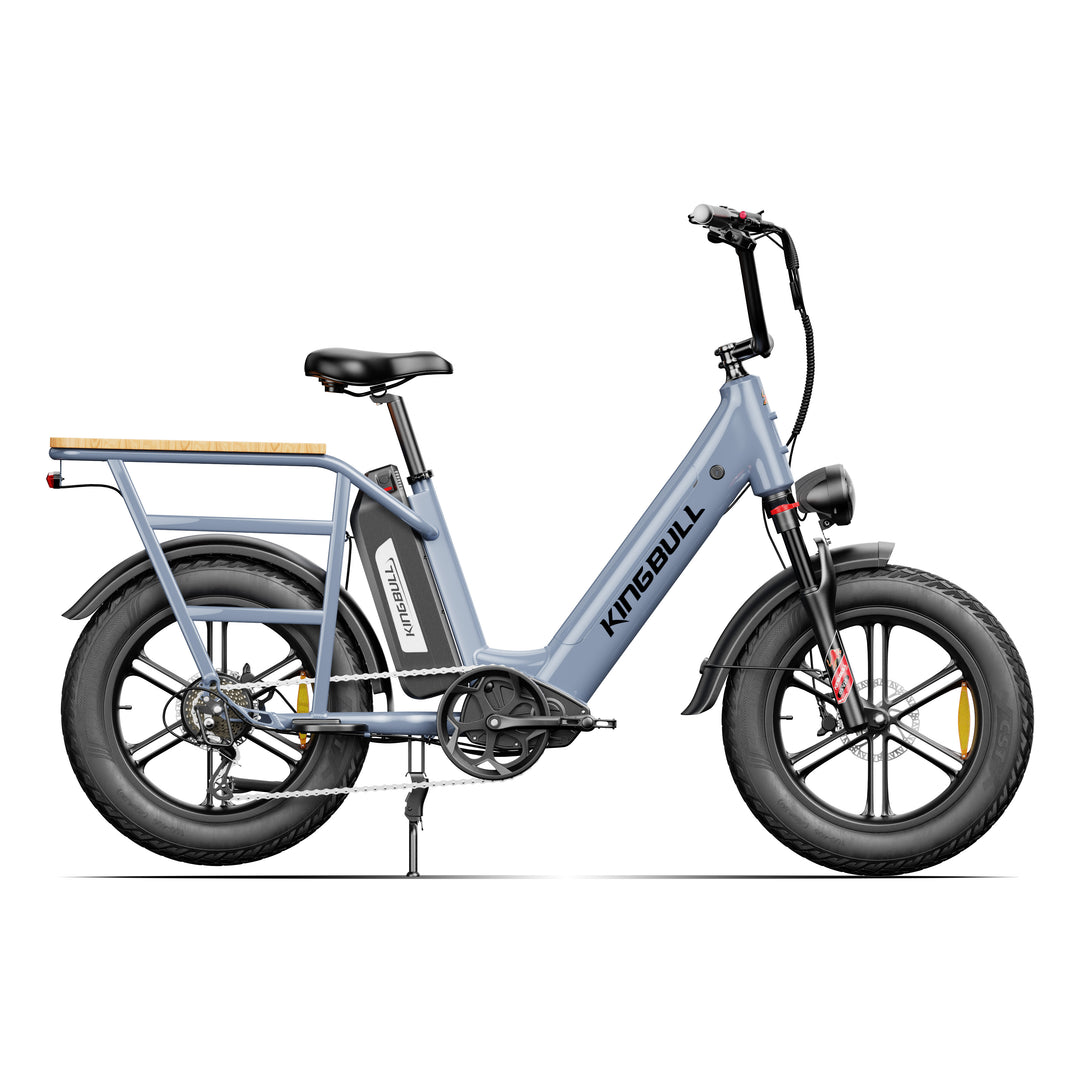

Grey KINGBULL kingbull dual battery Voyager 2.0 electric bike side view with front and rear cargo racks and fat tire design

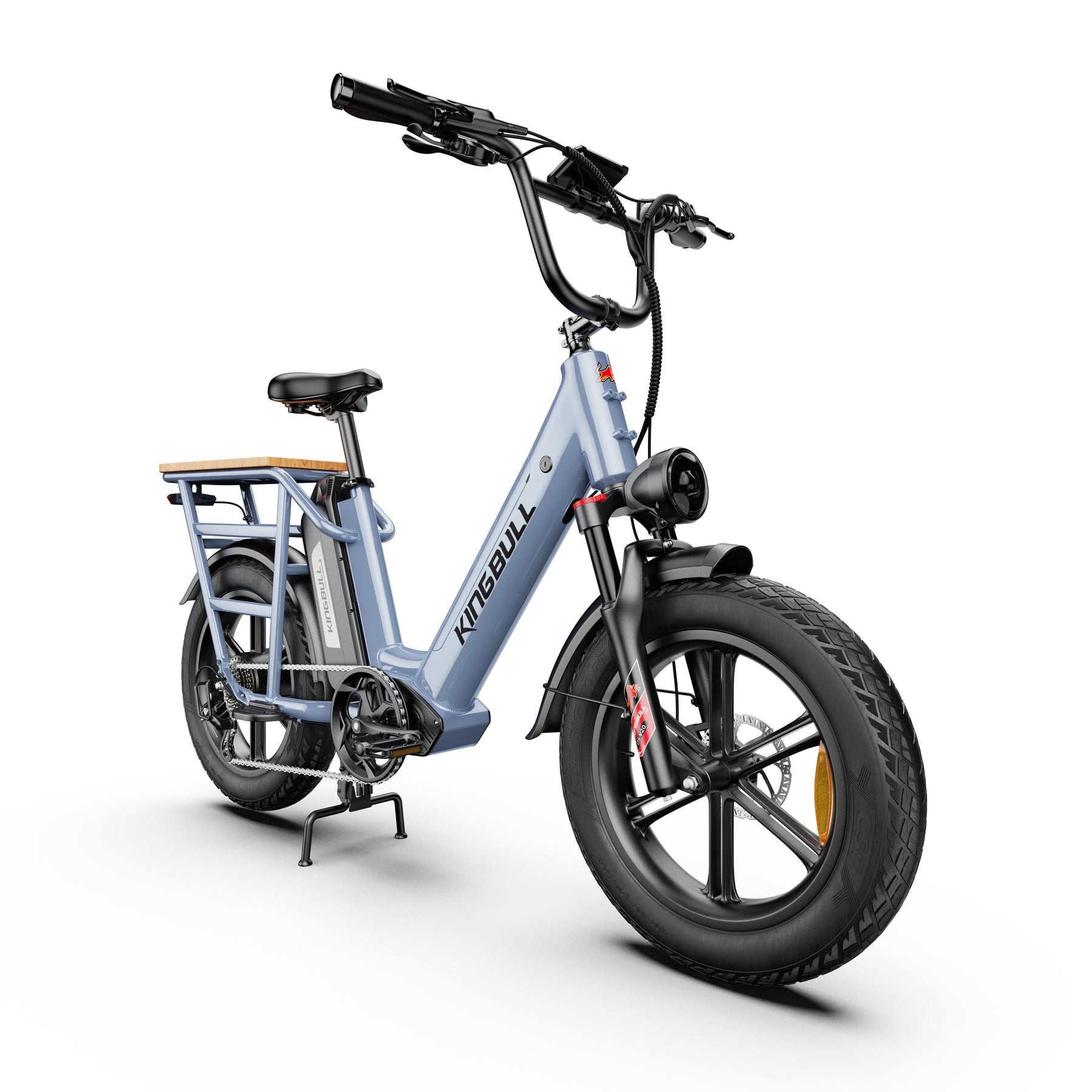

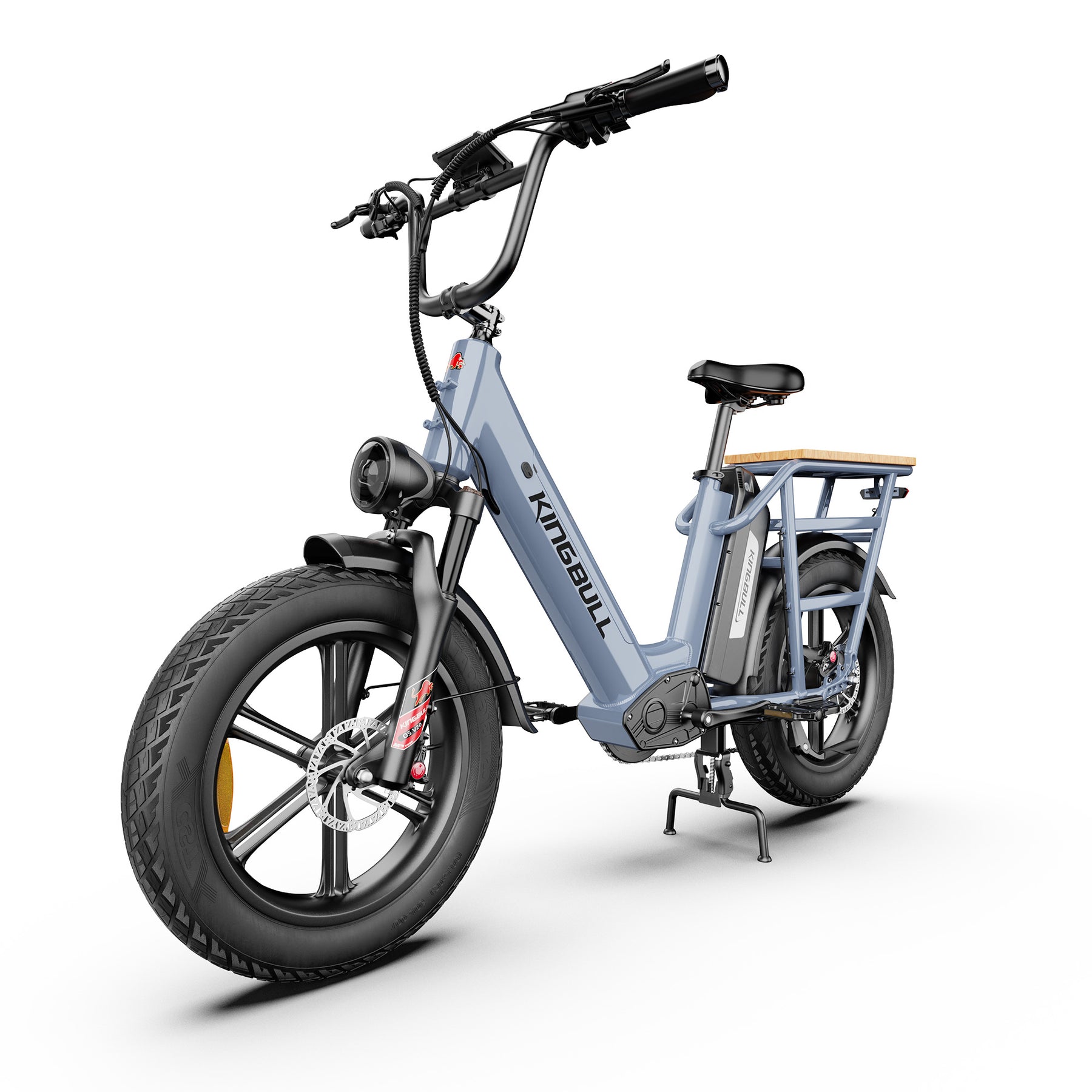

Grey KINGBULL dual battery Voyager 2.0 electric bike front angle view showing handlebars, headlight and overall design
Grey Kingbull Dual Battery Voyager 2.0 electric bike rear angle view highlighting rear cargo rack and frame structure
Kingbull Dual Battery Voyager 2.0
Orange KINGBULL dual battery Voyager 2.0 electric bike side view with front and rear cargo racks and fat tire design
Orange KINGBULL dual battery Voyager 2.0 electric bike front angle view showing handlebars, headlight and overall design
Orange Kingbull Dual Battery Voyager 2.0 electric bike rear angle view highlighting rear cargo rack and frame structure
Grey KINGBULL kingbull dual battery Voyager 2.0 electric bike side view with front and rear cargo racks and fat tire design
Grey KINGBULL dual battery Voyager 2.0 electric bike front angle view showing handlebars, headlight and overall design
Grey Kingbull Dual Battery Voyager 2.0 electric bike rear angle view highlighting rear cargo rack and frame structure
Kingbull Dual Battery Voyager 2.0
2-Year Warranty
Free Shipping
15-Day Return
No Tax
20,000+ Riders
Pass Test
Home / Ebikes / Kingbull Dual Battery Voyager 2.0| Long Range Cargo Electric Bike

Kingbull Dual Battery Voyager 2.0| Long Range Cargo Electric Bike

Long Range Cargo Ebike
$1,699.00 $1,799.00
/
Shipping calculated at checkout.
  • Dual Battery Voyager2.0: shipped around August 30.
Color
A gift pack including Lock, Bungee Cord, Rear Footreat pegs, mirror and Pump, Kingbull free accessories
  • Extra $200 off Buy any 2 Bikes
Quantity
Size & Fit
Size & Fit
A —— Total Length 69in / 175 cm
B —— Total Height 46.9in / 119 cm
C —— Minimum Seat Height 32.7in / 83 cm
D —— Maximum Seat Height 39.3in / 100 cm
E —— Handlebar width 28.3in / 72 cm
F —— Rear Rack Height 29.5in / 75 cm
Technical Specifications
Technical Specifications
Parameter
Max Range
100 Miles
Max Speed
28MPH
Weight
76 lbs
Rider Height
5'2" - 6'6"/ 157 cm - 196 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(default), Class 2
Frameset
Frame
All aluminum, removable integrated battery, tapered head tube, guided internal routing, 33.9mm seat tube, 12 mm bolt-on Axle
Fork
KINGBULL OS-V20, coil spring, lockable, preload adjustable, 60mm travel
Wheels
Rim
GBF-20, 20" magnesium alloy one wheel, M10*135*185MM
Tires
CST C-1752, 20"*4.0", puncture-proof
Inner Tubes
CST 20"*4.0", Schrader
Brakes
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1050mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1850mm oil pipe
Drivetrain
Shifter
SHIMANO SL-M315-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-M310, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7RB, 122L, 7 speed
Crankset
HDL-L145, 1/2"*3/32"*48T*152MM
Chainrings
48T
E-system
Motor
(GD)BAFANG 750W brushless hub motor
Battery
SAMSUNG 48V/720Wh*2(15Ah*2) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
130X-3, thumb throttle, left, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Components
Saddle
JT5734, Eco leather, aluminum alloy rails
Seatpost
SP-801, aluminum alloy, 33.9*300mm, with scale lines
Handlebar
HB820, aluminum alloy, 22.2*31.8*2.2T*720MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
FB-3310, PU+TPE, length 130mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
$1,699.00
$1,799.00

Core At A Glance

motor icon
Motor

BAFANG 750W Brushless Hub Motor

Battery charging icon
Battery

15Ah*2 (720Wh*2) Samsung Battery

Top Speed
Top Speed

28MPH

Max Range icon
Max Range

Up to 100 Miles

Sensor icon
Sensor

Torque Sensor丨Brake Sensor

Brakes icon
Brakes

Hydraulic Brakes

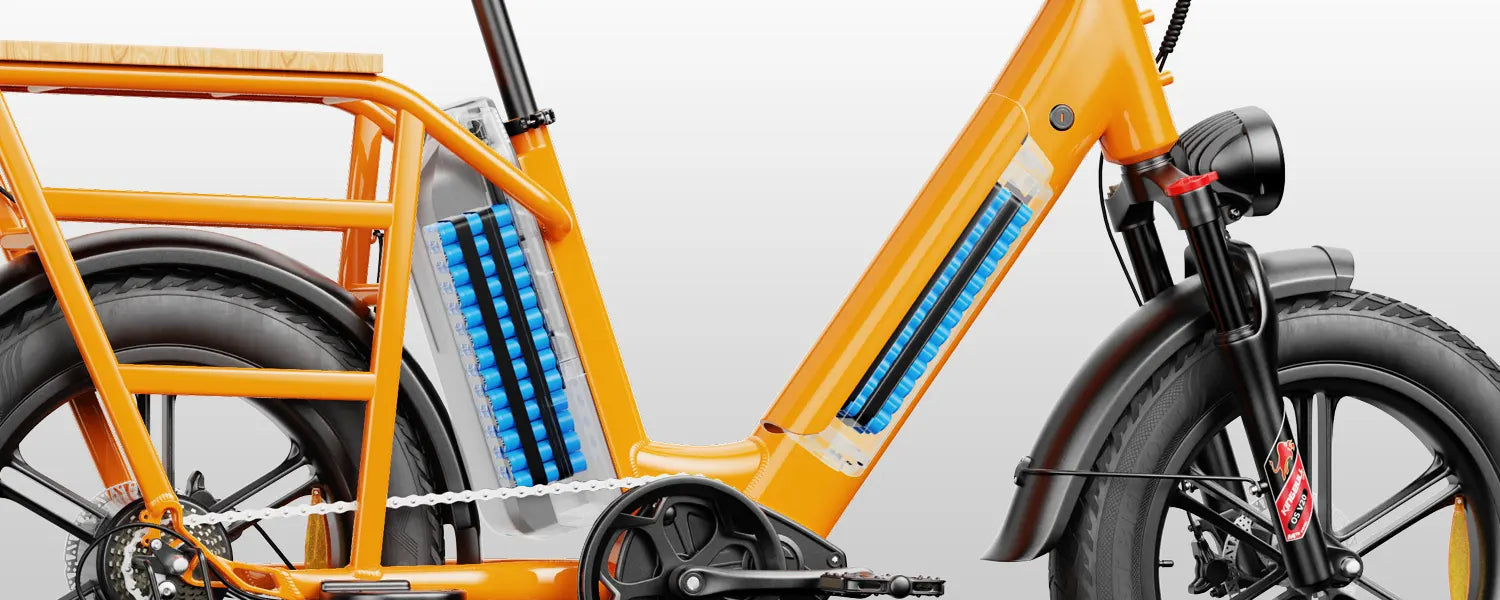

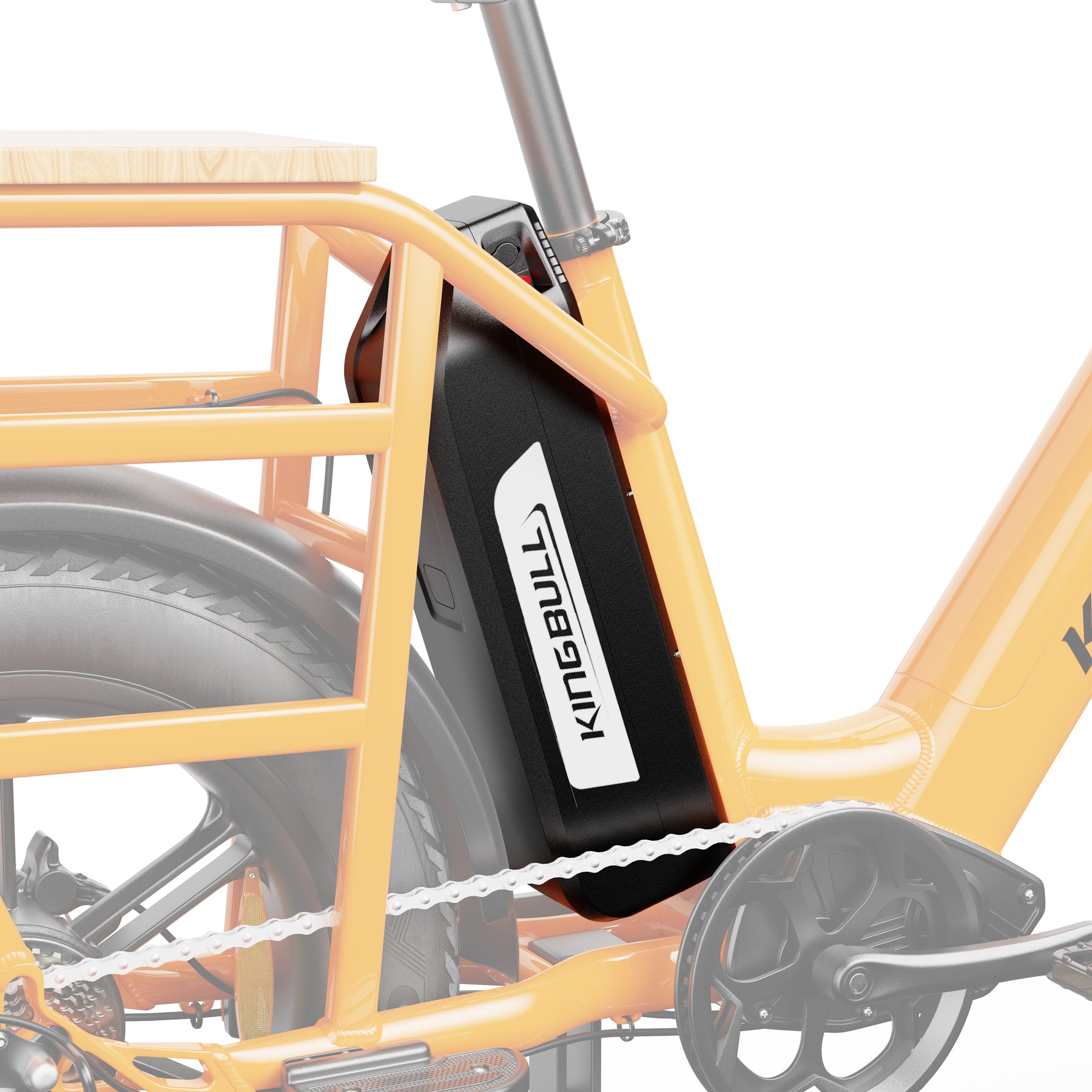

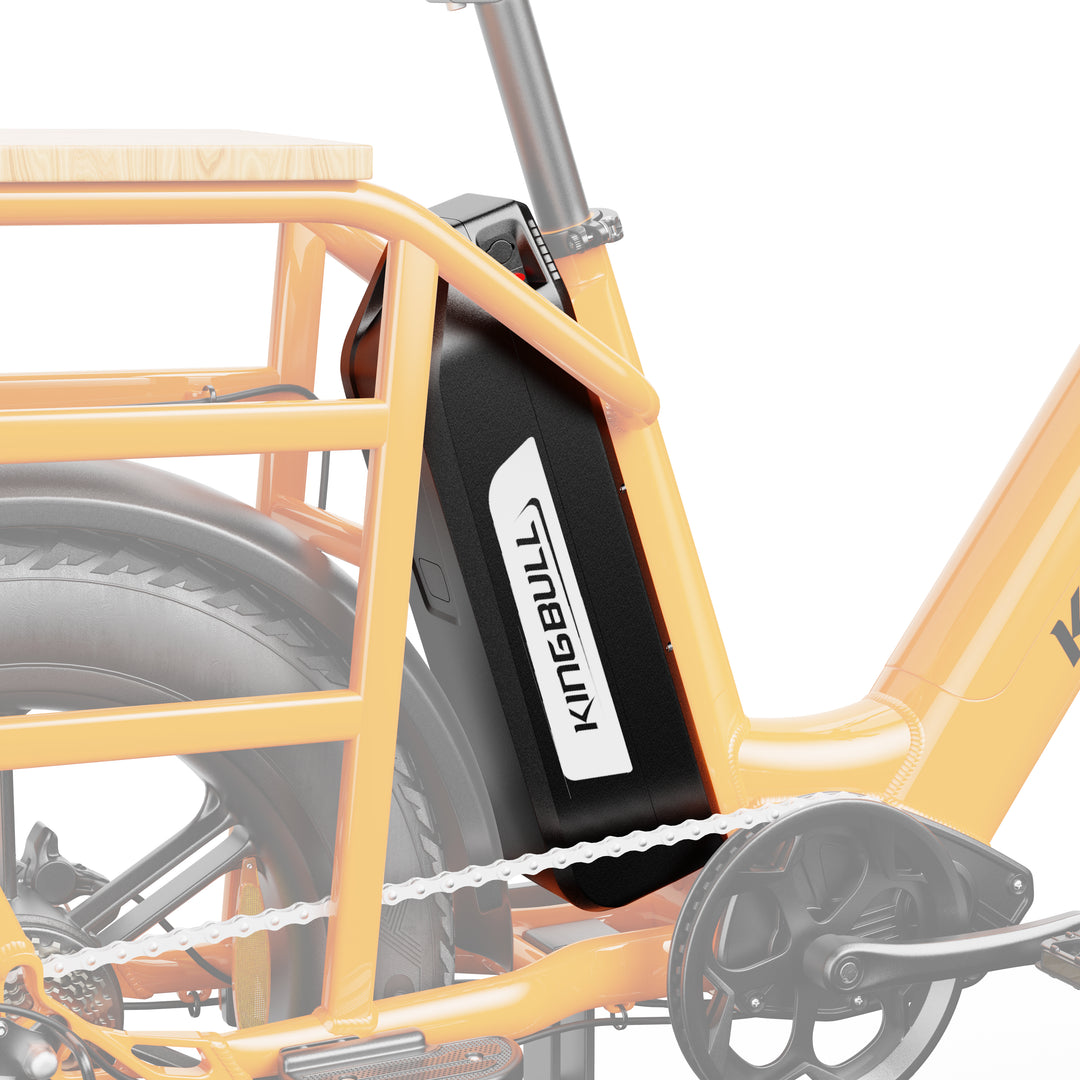

Dual Samsung Battery, Intelligently Managed.

Kingbull Voyager Daul battery 2.0: two battery, longer huaul
30Ah total, 1440Wh combined
Dual Battery Voyager 2.0 revolutionizes cargo hauling with twin 15Ah Samsung lithium batteries (15Ah*2；720Wh*2) featuring intelligent power management and seamless switching technology. Built into an ultra-reinforced aluminum chassis, this dual-battery architecture delivers an exceptional 100-mile range while maintaining perfect weight distribution for heavy-duty cargo operations.

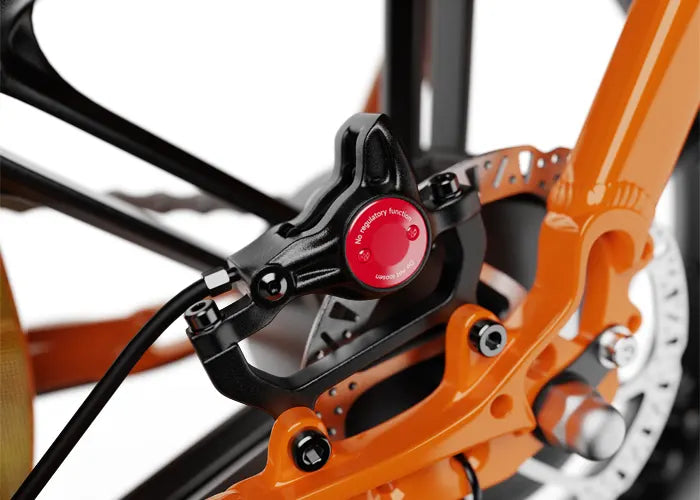

Dual battery Voyager2.0 Zoom hydraulic brake system Dual battery Voyager2.0 Zoom hydraulic brake system
Zoom Hydraulic Brake, Confident Cargo Transport

New ZOOM HB-875-E 2-piston hydraulic brake system, a significant upgrade from the first generation's GL-DB003 traditional oil brake. The 2-piston design delivers stronger and more even braking force with quicker response and shorter braking distances, ensuring safe cargo transport. The ZOOM HB-875-E offers excellent heat dissipation and durability, maintaining stable performance during long rides with even brake pad wear and lower maintenance costs.

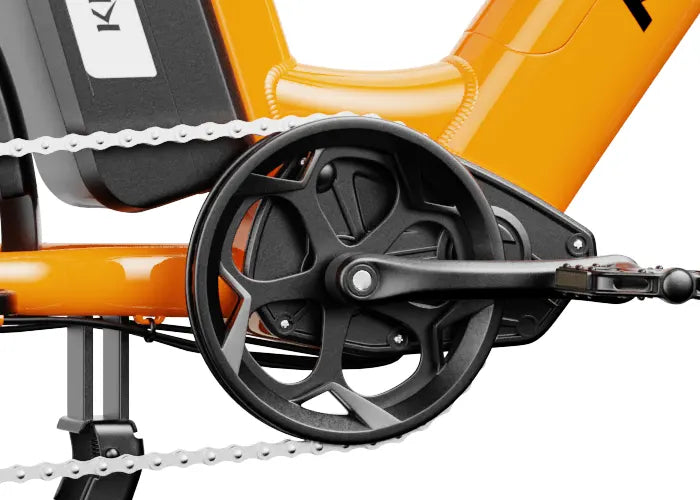

Dual battery Voyager 2.0 Intelligent Torque Sensor Dual battery Voyager 2.0 Intelligent Torque Sensor
Intelligent Torque Sensor, Natural Riding Experience

A torque sensor provides intuitive and responsive power delivery that seamlessly matches your pedaling effort in real time. The harder you pedal, the more assistance you receive, creating a natural, controlled, and energizing ride. This intelligent system promotes efficient power usage, extending battery life for longer rides with confidence, making it ideal for cargo transport and extended journeys.

Streamlined frame design with no visible welds – kingbull Voyager 2.0 Streamlined frame design with no visible welds – kingbull Voyager 2.0
Upgraded Frame, Stronger Than Ever.

The reinforced aluminum frame of Voyager 2.0 is 230% stronger than traditional e-bike frames, ensuring greater safety and stability under heavy loads. With a maximum payload capacity of 450 lbs, it’s built to handle serious cargo with confidence. Durable, dependable, and designed with a clean, modern look—it’s made for serious hauling.

450lb
Maximum Weight Capacity
Step-Thru Frame
user-friendly design
Cargo Rack
For various transport daily cargo

Features & Highlights

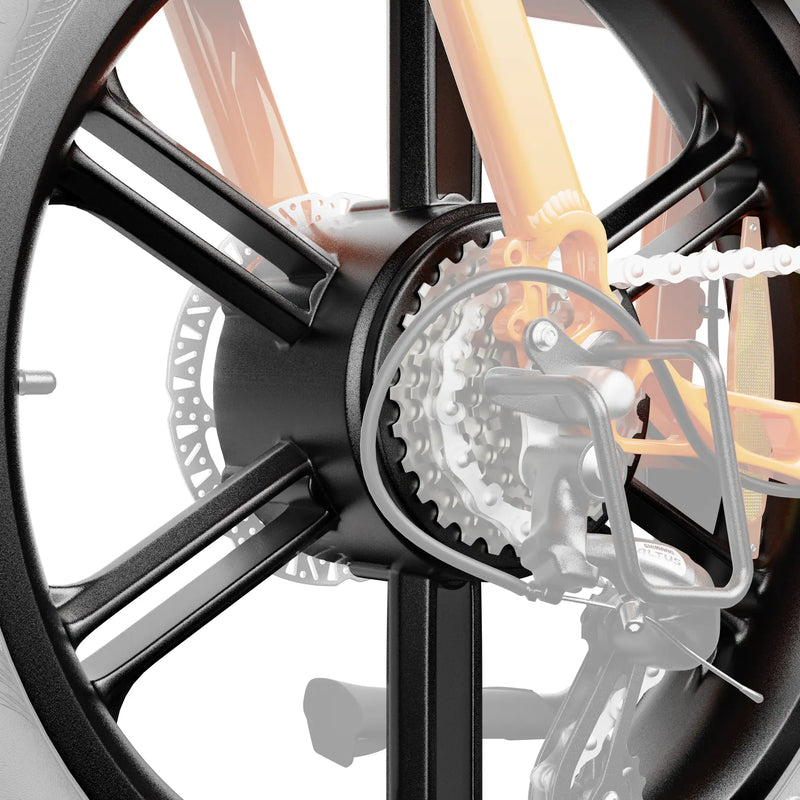

Upgraded Bafang 750W Motor
Advanced brushless technology boosts efficiency and reduces maintenance, while enhanced gearing extends motor life. Built tough for serious adventures—raw power, reliability, performance.
suspension fork – Kingbull Voyager2.0 e-bike
Front Fork Suspension
Designed for cargo e-bikes, the fork offers 60mm travel and a hydraulic spring system to ensure a smooth, comfortable ride—even when fully loaded.
Shimano 7-speed gear system – Kingbull Voyager2.0
Shimano 7 Speed
Free and seamless switching between 7 speedmodes.
Voyager 2.0 backlit display showing speed and pedal assist levels
Backlit LCD Display
Backlit color display, clearly visible in sunlight, provides riding information and makes it easy for riders to adjust their riding mode.
Kingbull Voyager 2.0 integrated solid wheel – stylish and durable design
20X4" CST All-Terrain Tires
Provides a smooth and easy ride even in the most challenging terrain and weather conditions.
Kingbull Voyager 2.0 breathable comfort saddle close-up
Breathable Sport Saddle
Adjustable design with upgraded breathable holesenhances comfort, making your daily city ridessmoother and more enjoyable.
Kingbull Voyager2.0 ebike Heavy-Duty Upgraded Rear Rack
Heavy-Duty Upgraded Rear Rack
Built for cargo e-bikes, this upgraded rack is made from high-strength alloy and supports up to 150 lbs—ideal for carrying groceries, gear, or daily cargo.
Kingbull Voyager ebike Integrated 48V LED Lights
Integrated 48V LED Lights
Kingbull 48V headlights are more powerful, improve visibility and ensure the safety of night riding.
Size & Fit
A —— Total Length 69in / 175 cm
B —— Total Height 46.9in / 119 cm
C —— Minimum Seat Height 32.7in / 83 cm
D —— Maximum Seat Height 39.3in / 100 cm
E —— Handlebar width 28.3in / 72 cm
F —— Rear Rack Height 29.5in / 75 cm
Technical Specifications
Max Range
100 Miles
Max Speed
28MPH
Weight
76 lbs
Rider Height
5'2" - 6'6"/ 157 cm - 196 cm
Max Payload Capacity
450 lbs
Rear Rack Load Limit
150 lbs
Classes
Class 3(default), Class 2
Frame
All aluminum, removable integrated battery, tapered head tube, guided internal routing, 33.9mm seat tube, 12 mm bolt-on Axle
Fork
KINGBULL OS-V20, coil spring, lockable, preload adjustable, 60mm travel
Rim
GBF-20, 20" magnesium alloy one wheel, M10*135*185MM
Tires
CST C-1752, 20"*4.0", puncture-proof
Inner Tubes
CST 20"*4.0", Schrader
Front Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1050mm oil pipe
Rear Brake
ZOOM HB-875-E, power-off brake lever, 2 pistons, 180mm disc, 1850mm oil pipe
Shifter
SHIMANO SL-M315-7R, right side, 2400mm cable length, 7 speed
Rear Derailleur
SHIMANO RD-M310, 7-speed
Cassette
SHIMANO MF-TZ500, 14-28T, 7 speed
Chain
KMC Z7RB, 122L, 7 speed
Crankset
HDL-L145, 1/2"*3/32"*48T*152MM
Chainrings
48T
Motor
(GD)BAFANG 750W brushless hub motor
Battery
SAMSUNG 48V/720Wh*2(15Ah*2) Lithium Battery
Controller
48V/25A
Display
KB35H custom color display
Charger
US standard 3.0A smart charger, UL-certified
Wiring Harness
Custom Kingbull wiring harness
Sensors
TROG-1B torque sensor丨Brake sensor
Throttle
130X-3, thumb throttle, left, 3 Pins, 5V
Light
48V LED headlights, horn ; 48V tail light, brake highlight
Saddle
JT5734, Eco leather, aluminum alloy rails
Seatpost
SP-801, aluminum alloy, 33.9*300mm, with scale lines
Handlebar
HB820, aluminum alloy, 22.2*31.8*2.2T*720MM
Stem
AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°
Grips
FB-3310, PU+TPE, length 130mm
Pedals
WP-625, aluminum Alloy
Fenders
Plastic
Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S
Can I cancel for free after placing an order?
You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.
How long does it take to receive the bikes after purchase?
We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.
Do I need a license to ride an e-bike?
Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.
Do I need to assemble the ebike myself?
All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.
Do I need to pay taxes?
Our prices already include taxes, so you don't need to pay any additional taxes.
How to Unlock Your Ebike’s Top Speed?
You can change your e-bike's maximum speed in the screen menu P08.

Rider Reviews

An orange freight electric bike parked by the lake
Secret to Smooth Pedaling on the Kingbull Voyager 2.0 | Fat Tire Electric Cargo Bike ?
Random Adventures
Orange kingbull ebike voyager2.0 cycling evaluation video
The Kingbull Voyager 2.0…a Monster Hauler at a Bargain Price! Get out and Live Electric Bike Life!
IMBruceECLECTIC
Orange kingbull ebike voyager2.0 cycling evaluation video
The Kingbull Voyager 2.0...CRUSHES the ½ Mile Long and 10% Hill Climb Test!
IMBruceECLECTIC
Voyager2.0 review video
KINGBULL VOYAGER 2.0 FAT TIRE ELECTRIC CARGO BIKE
profile
Ad-van-tures Over 50
Voyager2.0 review video
Kingbull Voyager 2 0 - Great Value Cargo Style Ebike!
profile
Russ Is Right
voyager2.0 video
Ride the Kingbull Voyager2 Ebike with Me TODAY!
Rider pictures
eBike Reviews & Adventures

Customer Reviews

Based on 291 reviews
92%
(269)
5%
(16)
2%
(5)
0%
(1)
0%
(0)
E
Emmie Anderson
Orange / Ebike only
We're Having The Most Fun!!!

Since we got our 2 Voyager 2.0 bikes (one in each color option), we've been exploring all over the Montana Rockies! What really impressed us is the cargo capacity - we can pack everything we need for day-long adventures without worrying about space. Whether it's hauling camping gear to remote spots or just carrying groceries back from town, these bikes handle the load like champs. The sturdy frame design gives us confidence on rough mountain terrain, and the extended range means we can go further into the backcountry than ever before. This wasn't just a bike purchase - it's been a total game changer for our outdoor lifestyle here in Big Sky country.😁

J
Jovie Jimenez
Orange / Ebike only
Awesome!

Overall experience with the Voyager 2.0 has been outstanding. Great communication from beginning to delivery. Had a small problem with packaging but it was handled quickly. What I love most about the Voyager 2.0 is how convenient it is for daily errands and hauling cargo. Whether it's groceries, work supplies, or weekend gear, the cargo capacity makes everyday transportation so much easier. The sturdy build handles loads effortlessly, and I find myself using it for trips I'd normally take the car for. Really impressed with both the bike's utility and the excellent customer service!

T
Tim S.
2nd Bike

Excellent, Customer Service and Tech Support hit it out of the park

C
Carrol Lee
Orange / Ebike only
Wonderful Riding Experience.

I think it's the best value for what you get, even as a basic level, it has so much more than other bike companies. My family and friends love it too. Thanks Kingbull.

User picture
H
Hilary Gibson
Orange / Ebike only
Awesome Bike So Far!!

This is my first e-bike so I don’t have a lot to compare it too but I have done about thirty miles on it so far and no issues so far. I build a cargo box on the back for my dog and he is loving it too.

123

You may also like

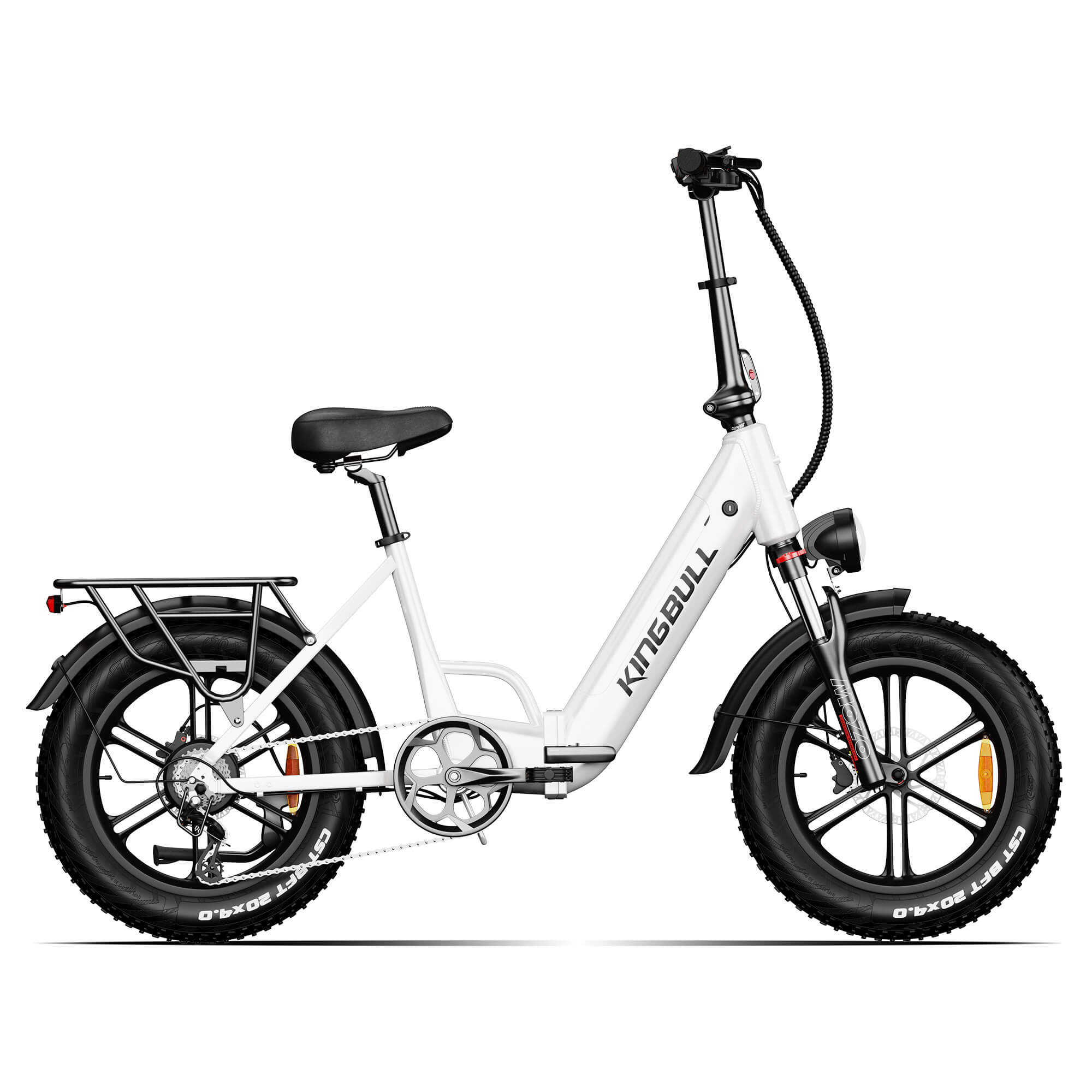

Foldable electric bike – Kingbull Literider 2.0
