Home / Ebikes / EX Titan | Premium Full Suspension Electric Mountain Bike

2-Year Warranty

Free Shipping

15-Day Return

No Tax

20,000+ Riders

Pass Test

Home / Ebikes / EX Titan | Premium Full Suspension Electric Mountain Bike

$2,099.00 $2,599.00

Shipping calculated at checkout.

CA Shipping: Within 2 Business Days

Color: Black & Sand Gold

Black & Sand Gold

Quantity

Size & Fit

A —— Total Length 79.5 in / 202 cm

B —— Total Height 49.2 in / 113 cm

C —— Handlebar Width: 28.5 in / 72.5 cm

D ——Minimum Seat Height 34.7 in / 88 cm

E —— Maximum Seat Height 37.8 in / 96 cm

F —— Minimum upper tube height 29.5 in / 75 cm

Technical Specifications

Parameter

Max Range

80 Miles

Max Speed

28MPH / Throttle only max speed 20MPH

Weight

84 lbs

Rider Height

5'6" - 6'7"/ 168 cm - 201 cm

Max Payload Capacity

450 lbs

Rear Rack Load Limit

150 lbs

Classes

Class 3(Default), Class 2

Frameset

Frame

All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 31.6mm seat tube, 12 mm thru axle, 130 mm travel

Fork

ZOOM 879DH, coil spring, 80mm travel, 1-1/8" threadless straight

Shock

DNM AO-38RC, air spring, hydraulic damping, rebound adjustment, air preload, lockable, 210x50mm

Wheels

Rim

Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM

Hub Front

MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM

Spoke

45#, 13G, 257 MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap

Tires

Kenda K-1188, 26"*4.0", puncture-proof

Inner Tubes

Kenda 26"*4.0", Schrader

Brakes

Front Brake

Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 900mm oil pipe

Rear Brake

Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2000mm oil pipe

Drivetrain

Shifter

SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed

Rear Derailleur

SHIMANO RD-M310, 8-speed

Cassette

DNP LY-3008CHN, 13-32T, 8 speed

Chain

KMC Z8, 126L, 8 speed

Crankset

PRO-V42P, 1/2"*3/32"*42T*170MM

Chainrings

42T

E-system

Motor

BAFANG G062 750W brushless hub motor

Battery

SAMSUNG 48V/960Wh(20Ah) Lithium Battery

Controller

48V/25A

Display

KB35H custom color display

Charger

US standard 3.0A smart charger, UL-certified

Wiring Harness

Custom Kingbull wiring harness

Sensors

TROG-1B torque sensor丨Brake sensor

Throttle

FT158X, twist throttle, 3 Pins, 5V

Light

48V LED headlights, horn ; 48V tail light, brake highlight

Components

Saddle

JT5734, Eco-leather, aluminum alloy rails

Seatpost

SP-601, aluminum alloy, 31.6*200mm, with scale lines

Handlebar

HB703, aluminum alloy, 22.2*31.8*2.4T*700MM

Stem

AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°

Grips

HT420 rubber, length 120mm

Pedals

WP-625, aluminum Alloy

Fenders

Plastic

[{"id":50643686359322,"title":"Black \u0026 Sand Gold","option1":"Black \u0026 Sand Gold","option2":null,"option3":null,"sku":"KET-SANDGOLD","requires_shipping":true,"taxable":false,"featured_image":{"id":51432656077082,"product_id":9856124485914,"position":1,"created_at":"2025-04-22T20:25:58-07:00","updated_at":"2025-04-22T20:26:00-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.kingbullbike.com\/cdn\/shop\/files\/EX-Titan-v1_55d17e21-a6cc-4697-818f-a8995d54f1a8.jpg?v=1745378760","variant_ids":[50643686359322]},"available":true,"name":"EX Titan | Premium Full Suspension Electric Mountain Bike - Black \u0026 Sand Gold","public_title":"Black \u0026 Sand Gold","options":["Black \u0026 Sand Gold"],"price":209900,"weight":0,"compare_at_price":259900,"inventory_management":"shopify","barcode":"720250201024","featured_media":{"alt":null,"id":42484398260506,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.kingbullbike.com\/cdn\/shop\/files\/EX-Titan-v1_55d17e21-a6cc-4697-818f-a8995d54f1a8.jpg?v=1745378760"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

$2,099.00

$2,599.00

Core At A Glance

Motor

BAFANG 750W brushless hub motor

Battery

20Ah (960Wh) Samsung Battery

Top Speed

28MPH(Throttle only max speed 20MPH)

Max Range

Up to 80 Miles

Sensor

torque sensor丨Brake sensor

Brakes

Hydraulic Brakes

The Ultimate Off-Road Beast

750W Brushless Geared Hub Motor

The newly upgraded Bafang (GD) 750W brushless geared hub motor delivers powerful performance and torque of up to 80Nm, making it easy to handle rough terrain and 35° slopes, even under heavy load. Advanced brushless technology improves energy efficiency and reduces maintenance, while upgraded gearing improves performance and extends motor life. This perfect blend of power, durability and efficiency makes it ideal for off-road adventures.

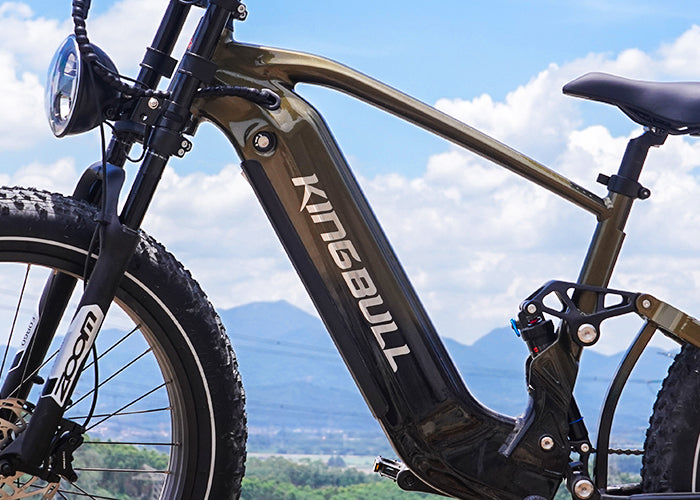

Four-Bar Linkage Suspension and Full Suspension Systems

Crafted around a true four-bar linkage system, this frame delivers elite-level suspension performance—minimizing pedal and brake interference for unmatched stability and control. With 80mm of front suspension travel and 130mm in the rear, it's built to soak up big hits and keep you in command. Designed for aggressive terrain, it ensures confident handling, consistent traction, and a ride that stays composed no matter the challenge.

Samsung Battery

Fueled by Samsung’s powerful 48V 960Wh lithium battery, the EX Titan delivers relentless energy and an impressive range built for the wild. Engineered for extreme durability and intelligent power control, it’s the heart of your off-road freedom—no limits, no compromises.

960Wh

Battery Capacity

80 Miles

Max Range

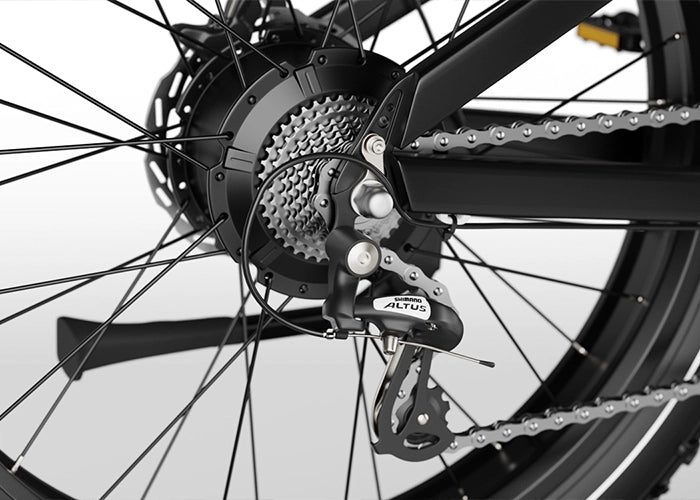

SHIMANO 8-Speed Precision

When the trail gets tough, your drivetrain won’t back down. Equipped with a SHIMANO 8-speed shifter and a rugged rear derailleur, this bike delivers crisp, high-performance shifting across any terrain. The wide-range DNP cassette (13–32T) ensures the perfect gearing flexibility to conquer steep climbs and maintain control on fast descents. Built to push limits, engineered for control—no matter where you ride.

Design Meets Safety

The battery is seamlessly integrated into the frame for a sleek, streamlined look and enhanced protection. Hidden from external elements, it stays safer, cleaner, and more durable. With dual locking mechanisms for added security, the battery is well-protected against theft and tampering. The aluminum alloy casing ensures efficient heat dissipation and, together with the frame tube, provides double-layer protection—making it more fire-resistant and explosion-proof. Smart. Safe. Beautiful.

Features & Highlights

Name: EX Titan | Premium Full Suspension Electric Mountain Bike
Brand: KINGBULL
SKU: KET-SANDGOLD
Price: 2099.0 USD
Availability: InStock

Front Fork Suspension

The ZOOM front fork combines a precision coil spring with 80mm of travel suspension, providing exceptional shock absorption for a smooth, responsive ride on any terrain.

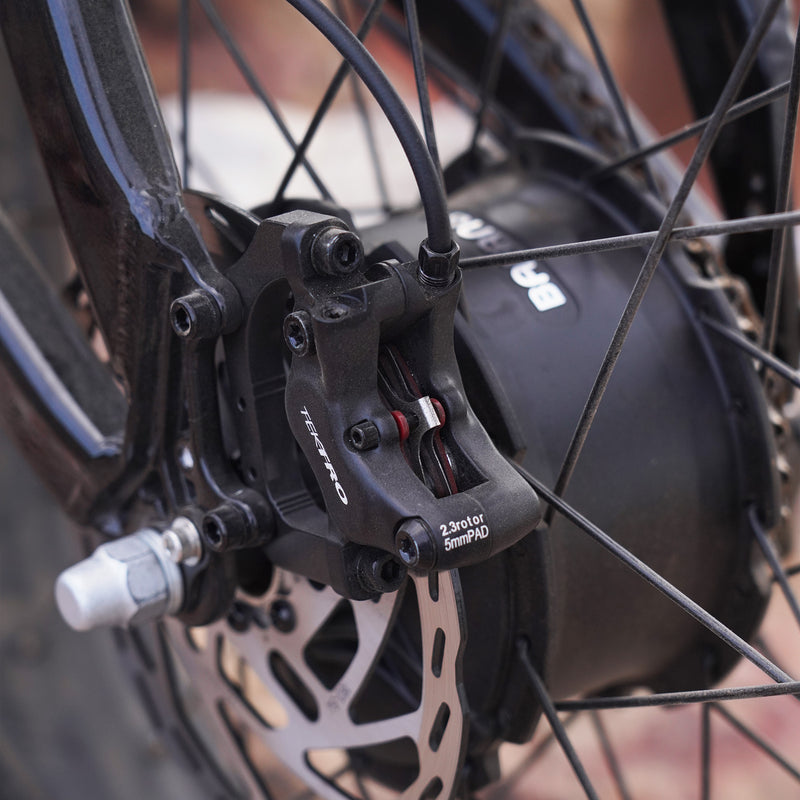

Tektro 4-Piston Hydraulic Brakes

4-piston hydraulic brakes offer powerful, balanced stopping with quick response and smooth control—even on fast rides or steep descents.

26"X4.0" Kenda Tires

Anti-slip, puncture-resistant tires handle extreme conditions, while their width reduces bumps and enhances safety.

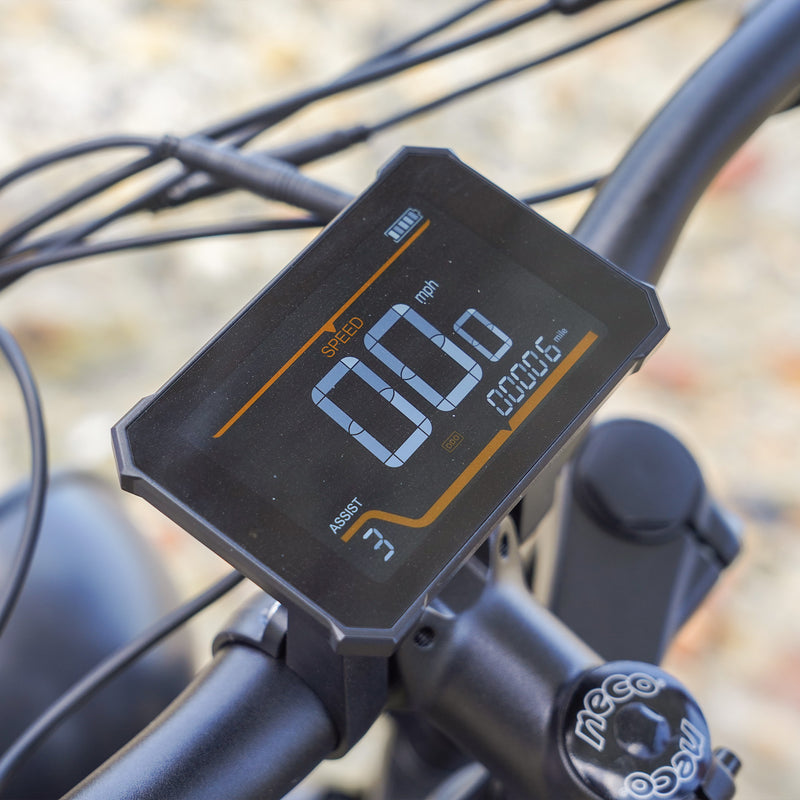

LED Display

The handlebar features race-inspired controls and a dynamic LED display, with ergonomic grips for a secure, responsive ride—whether you're pushing limits or cruising with ease.

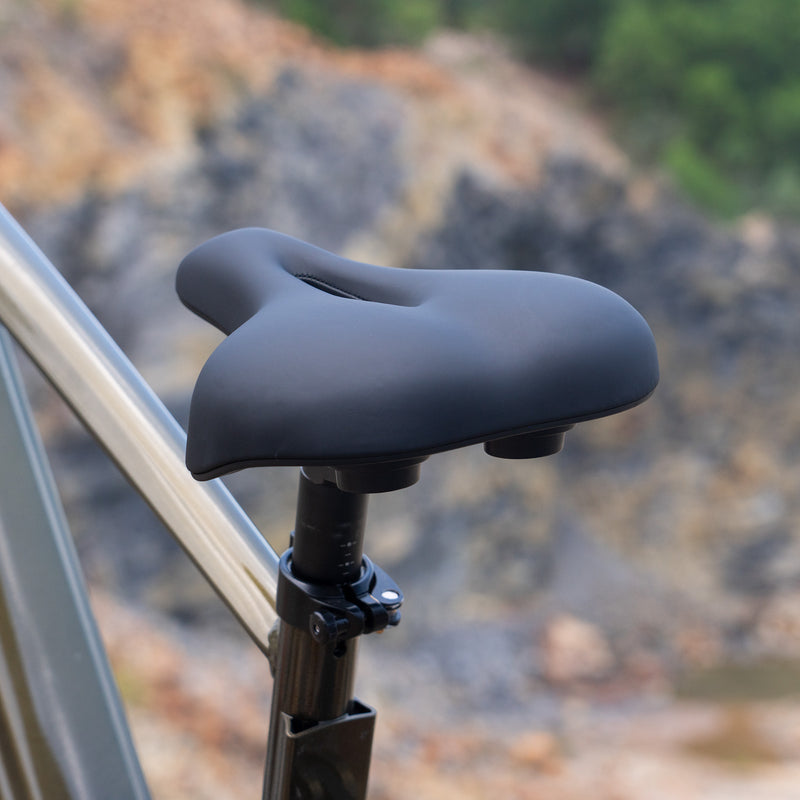

Breathable Sport Saddle

Adjustable design with upgraded breathable holes enhances comfort, letting you conquer mountains and long rides with ease!

Integrated 48V LED Lights

Kingbull 48V headlights are powerful, enhancing visibility and night riding safety.

Size & Fit

A —— Total Length 79.5 in / 202 cm

B —— Total Height 49.2 in / 113 cm

C —— Handlebar Width: 28.5 in / 72.5 cm

D ——Minimum Seat Height 34.7 in / 88 cm

E —— Maximum Seat Height 37.8 in / 96 cm

F —— Minimum upper tube height 29.5 in / 75 cm

Technical Specifications

Max Range

80 Miles

Max Speed

28MPH / Throttle only max speed 20MPH

Weight

84 lbs

Rider Height

5'6" - 6'7"/ 168 cm - 201 cm

Max Payload Capacity

450 lbs

Rear Rack Load Limit

150 lbs

Classes

Class 3(Default), Class 2

Frame

All aluminum, full suspension, removable integrated battery, tapered head tube, guided internal routing, 31.6mm seat tube, 12 mm thru axle, 130 mm travel

Fork

ZOOM 879DH, coil spring, 80mm travel, 1-1/8" threadless straight

Shock

DNM AO-38RC, air spring, hydraulic damping, rebound adjustment, air preload, lockable, 210x50mm

Rim

Front: JP73, aluminum alloy, 26"*13G*36H, H:18MM, Φ573MM, Rear: JP73, aluminum alloy, 26"*12G*36H, H:18MM, Φ573MM

Hub Front

MY612FB-B1, aluminum alloy, 3/8"*13G*36H*135*185MM, PCD:58MM

Spoke

45#, 13G, 257 MM, 14mm copper spoke cap, 45#, 12G, 221MM, 14mm copper spoke cap, 45#, 12G, 219MM, 14mm copper spoke cap

Tires

Kenda K-1188, 26"*4.0", puncture-proof

Inner Tubes

Kenda 26"*4.0", Schrader

Front Brake

Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 900mm oil pipe

Rear Brake

Tektro HD-E3940, power-off brake lever, 4 pistons, 180mm disc, 2000mm oil pipe

Shifter

SHIMANO SL-M315-8R, right side, 2400mm cable length, 8 speed

Rear Derailleur

SHIMANO RD-M310, 8-speed

Cassette

DNP LY-3008CHN, 13-32T, 8 speed

Chain

KMC Z8, 126L, 8 speed

Crankset

PRO-V42P, 1/2"*3/32"*42T*170MM

Chainrings

42T

Motor

BAFANG G062 750W brushless hub motor

Battery

SAMSUNG 48V/960Wh(20Ah) Lithium Battery

Controller

48V/25A

Display

KB35H custom color display

Charger

US standard 3.0A smart charger, UL-certified

Wiring Harness

Custom Kingbull wiring harness

Sensors

TROG-1B torque sensor丨Brake sensor

Throttle

FT158X, twist throttle, 3 Pins, 5V

Light

48V LED headlights, horn ; 48V tail light, brake highlight

Saddle

JT5734, Eco-leather, aluminum alloy rails

Seatpost

SP-601, aluminum alloy, 31.6*200mm, with scale lines

Handlebar

HB703, aluminum alloy, 22.2*31.8*2.4T*700MM

Stem

AS507, aluminum alloy, Φ28.6*Φ31.8* EXT:60MM, 7°

Grips

HT420 rubber, length 120mm

Pedals

WP-625, aluminum Alloy

Fenders

Plastic

Assembly& Support

Assembly Manual

Display Manual

Bike Will Arrive 85% Assembled (electronics are pre-assembled), Basic Assembly Steps Are Reauired.

FAQ'S

Can I cancel for free after placing an order?

You can cancel for free before the shipping label is created. After the shipping label is created, we can assist you in intercepting the order; however, there is no guarantee that the interception will be successful.

How long does it take to receive the bikes after purchase?

We will process the shipment within 2 business days. The delivery time depends on your delivery address. We ship from California, and you can usually receive the bike within 2-5 business days.

Do I need a license to ride an e-bike?

Our e-bikes meet US legal standards. If your state does not allow Class 3 e-bikes, you can adjust your e-bike speed to a Class 2 e-bike.

Do I need to assemble the ebike myself?

All e-bikes come 85% pre-assembled, but you still need to do some simple assembly work.

Do I need to pay taxes?

Our prices already include taxes, so you don't need to pay any additional taxes.

How to Unlock Your Ebike’s Top Speed?

You can change your e-bike's maximum speed in the screen menu P08.
